Dynapac MF2500CS - Bypass function travel drive pump Stage V

C 11 36
Bypass function travel drive pump Stage V
A

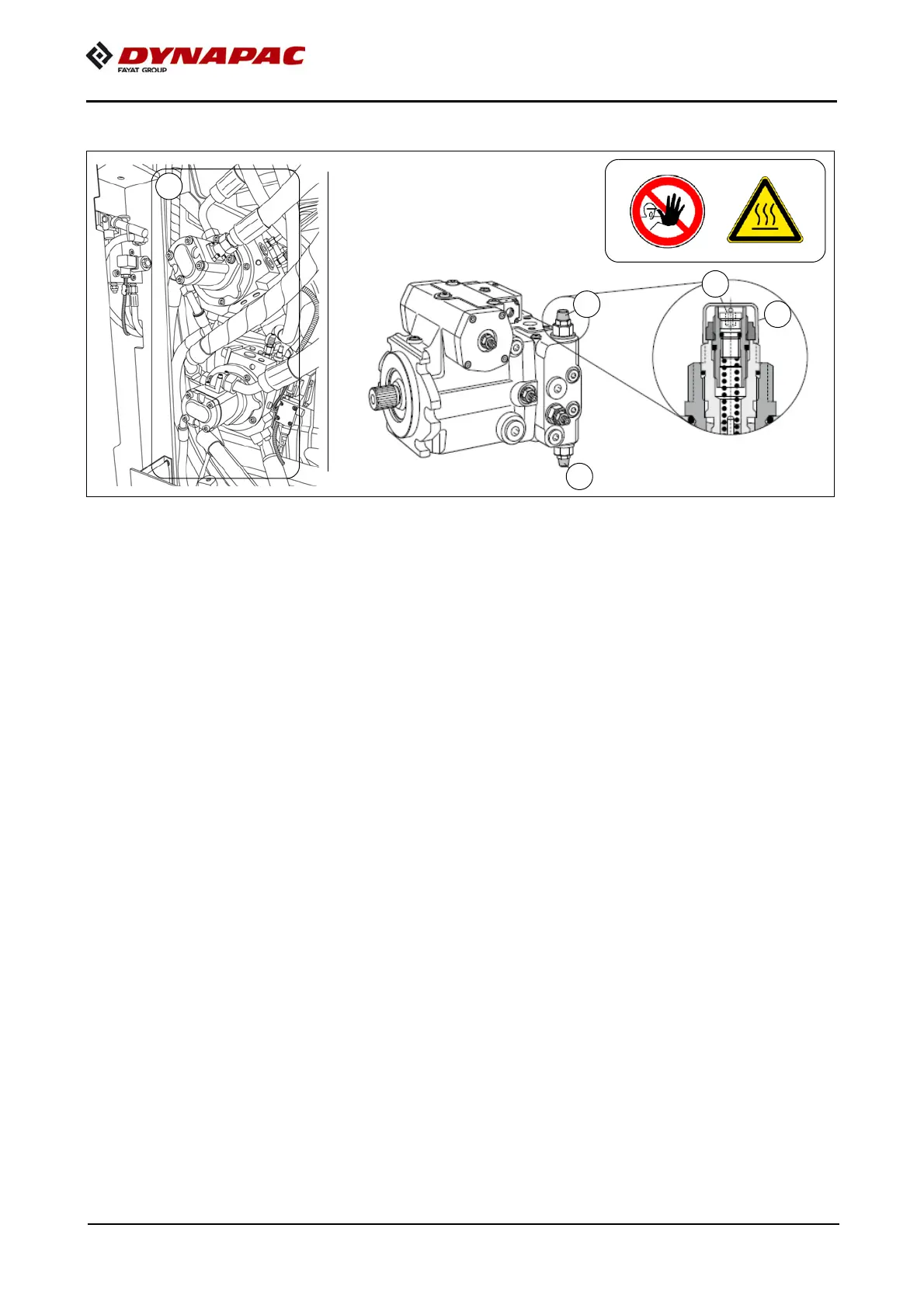

There are two high-pressure relief valves (6) on each of the travel drive pumps (5).
To activate the bypass function:
- remove the safety cap (7) of the high-pressure relief valve using a suitable tool
(e.g. pliers).
- Loosen the screw (8) by turning counterclockwise twice with an Allen key (SW5).
A
The plastic safety cap is destroyed on removal.
m
Towing with activated bypass drains the closed hydraulic circuit. This may result in
unintended functions when restarting the travel drive. Do not start the travel drive until
the hydraulic circuit has been completely filled and bled!
Switch the bypass function off immediately after towing has finished:
- Use an Allen key (SW5) to tighten the screw (8) turning clockwise
with a torque of 10 +/-1Nm.
- Put a safety cap on the screw (8) again to prevent unintentional adjustment
of the valve.
5
7
8
6
6
