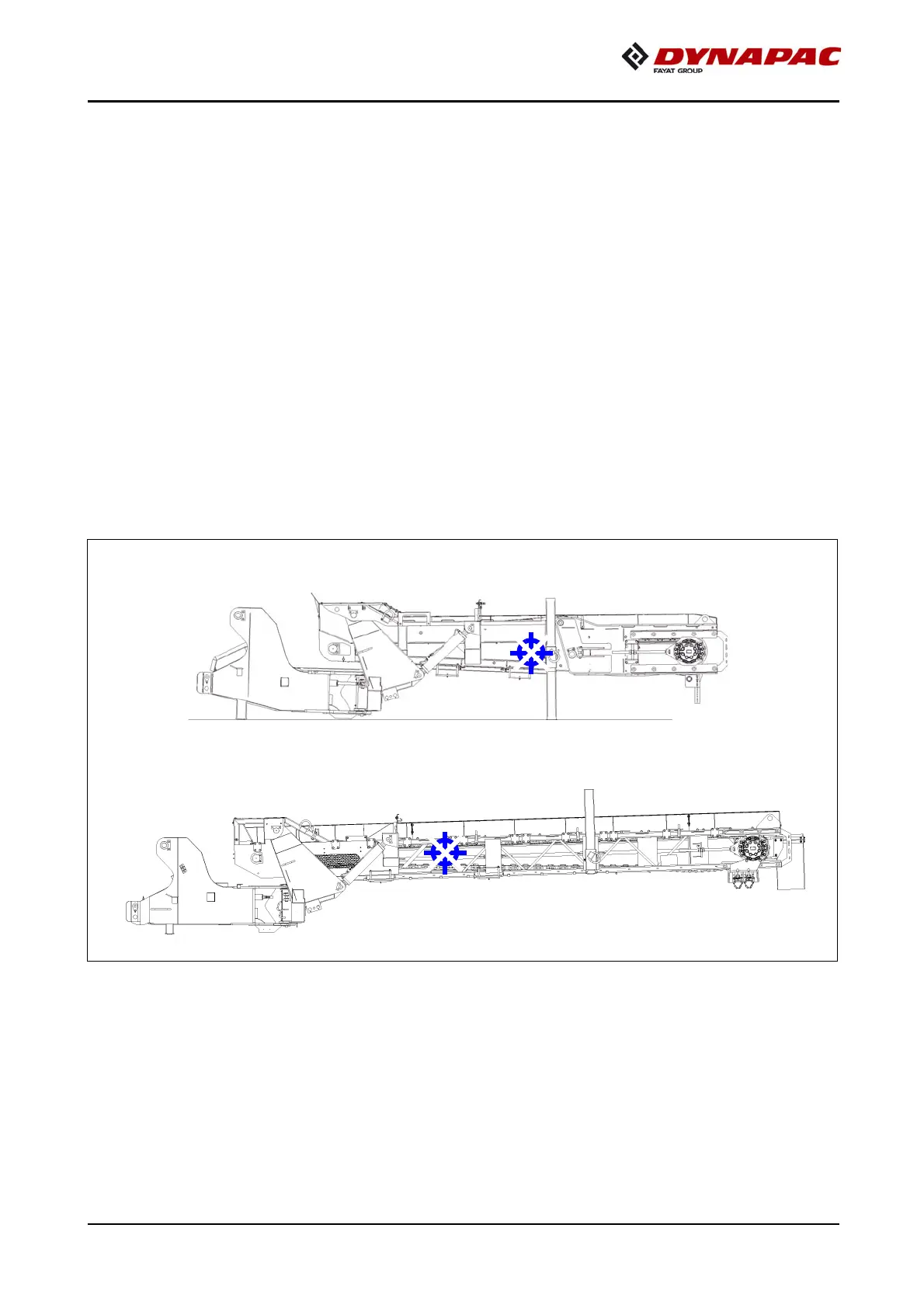

Four lifting eyes (4,5) are provided for loading the conveyor belt with a crane.
- The conveyor belt must be cleaned, all material deposits removed and all mainte-
nance flaps closed correctly.
- The conveyor belt must stand on all standing legs. The standing legs must be se-
cured with the corresponding retaining pins (6).
- The retaining pin (7) must be inserted at the swivel arm.
- SW6500: The locking plates (8) must be fitted.
- Attach lifting gear to the four attachment points (4, 5).
m
The max. permissible attachment point load at the attachment points is: (4):
16 KN / (5): 7 KN.
m
The permissible load applies in the vertical direction!
m
Make sure that the conveyor belt remains in a horizontal position
during transportation!
Observe the centre of gravity of the conveyor belt!
