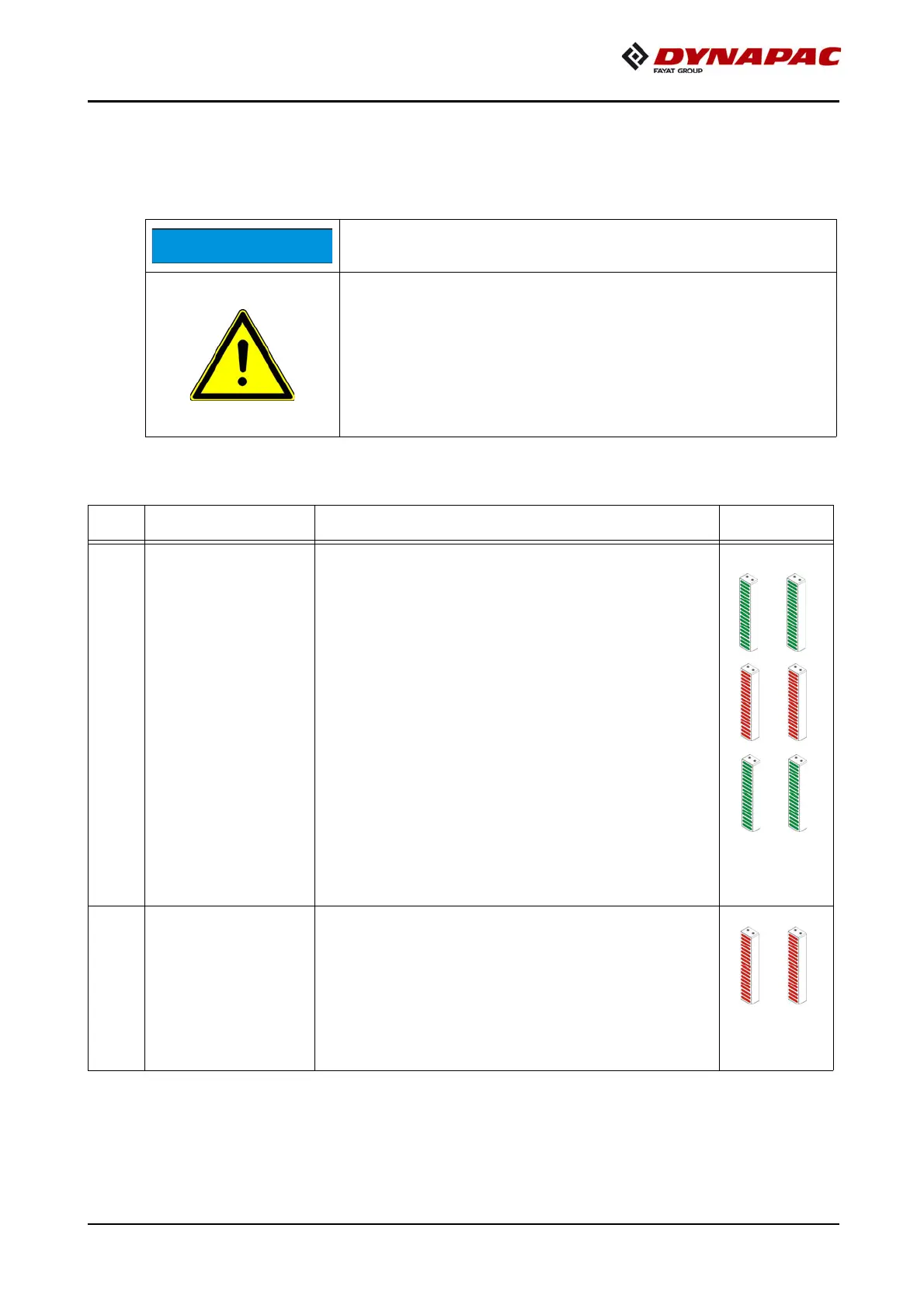

The Truck Assist system is used for communication between the driver of the paver
and the driver of the material truck. The corresponding signal system shows the truck
driver which action to perform (reversing / stop / tip material / depart).
Caution! Possible material damage through
insufficient instruction
Ignored or incorrectly understood signals can cause
damage to the paver and/or material truck!
- The paver driver and all drivers of the material trucks
must be instructed in how the Truck Assist system works
and understand the system.
- Comply with all further information in the operating
instructions and in the safety manual.
Item Designation Brief description LED display
38
Tell truck
to reverse
Pushbutton function with LED feedback:
- To change over to the
"Start Reversing" signal.
(GREEN SIGNAL)
- Press button again to change signal
over to "Stop".
Button LED (39) on + (RED SIGNAL).
- Press button once more to switch
again to "Start Reversing" signal.
(GREEN SIGNAL)
A
Button (39) can also be used to change
over to "Stop".
39
Tell truck
to interrupt
reversing - "STOP"
Pushbutton function with LED feedback:
- To change over to the "STOP" signal.
(RED SIGNAL)
A
Set "STOP" signal to interrupt procedure
or on reaching correct distance between
truck and paver.
