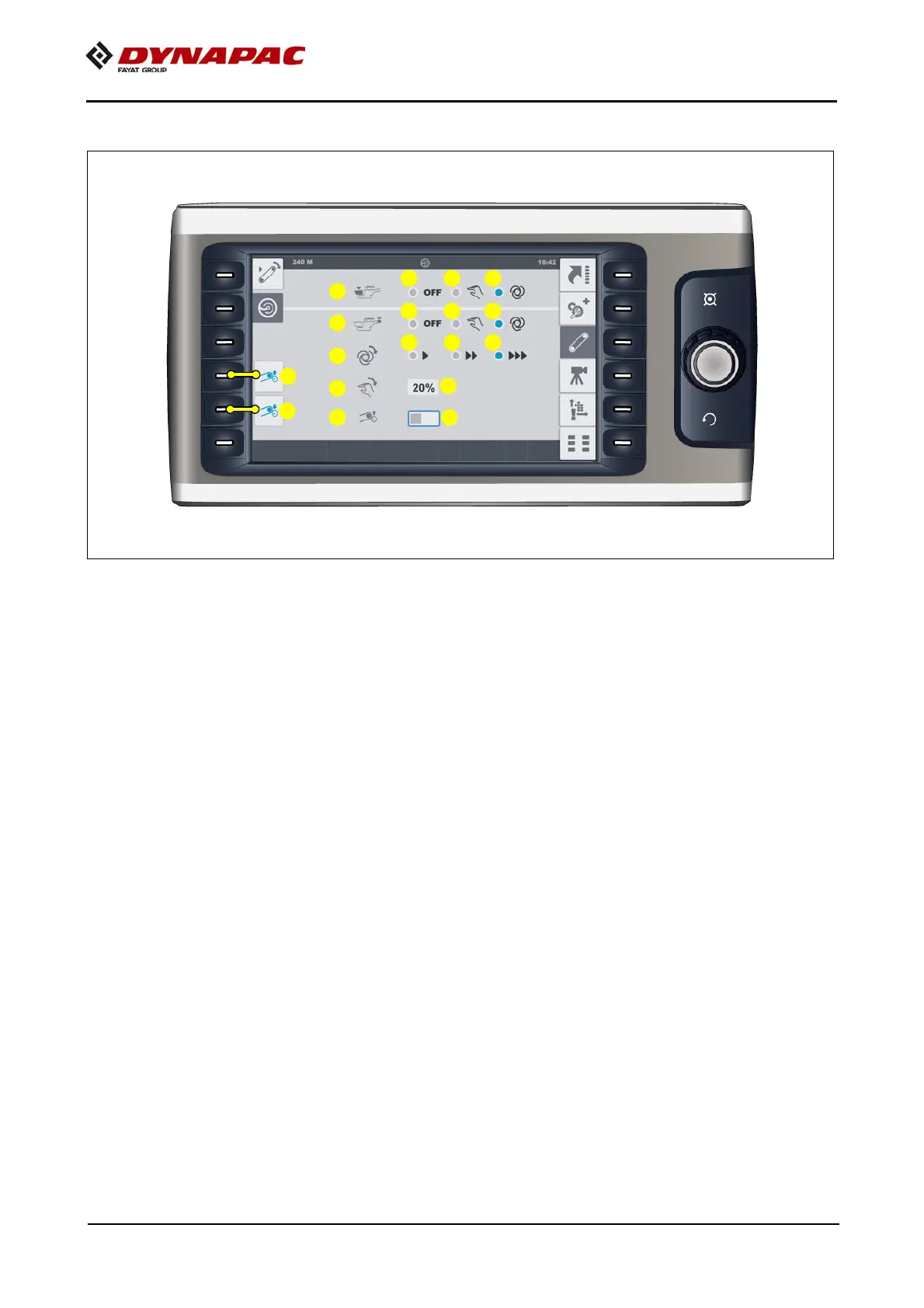

-(3) Speed preselection rear mixer for "AUTO" mode.
- Preselected speed 60%: (3.1).
- Preselected speed 80%: (3.2).
- Preselected speed 100%: (3.3).
-(4) Speed preselection rear mixer for "MANUAL" mode.
- Preselected speed 1% - 100%: (3.1).
- (5) Rear mixer ON / OFF.
- Lower / raise rear mixer to working position: (5.1).
A
Function buttons (6) / (7) are only active when the function is switched on!
The belt speed is limited when the function is switched on! (25%)
- (6) Raise rear mixer hydraulically: Pushbutton function.
Press and hold until end position is reached.
- (7) Lower rear mixer hydraulically: Pushbutton function
Press and hold until end position is reached.
1
2
3
6
7
4
5
1.1 1.2 1.3
2.1 2.2 2.3
3.1 3.2 3.3
4.1
5.1
