E 19

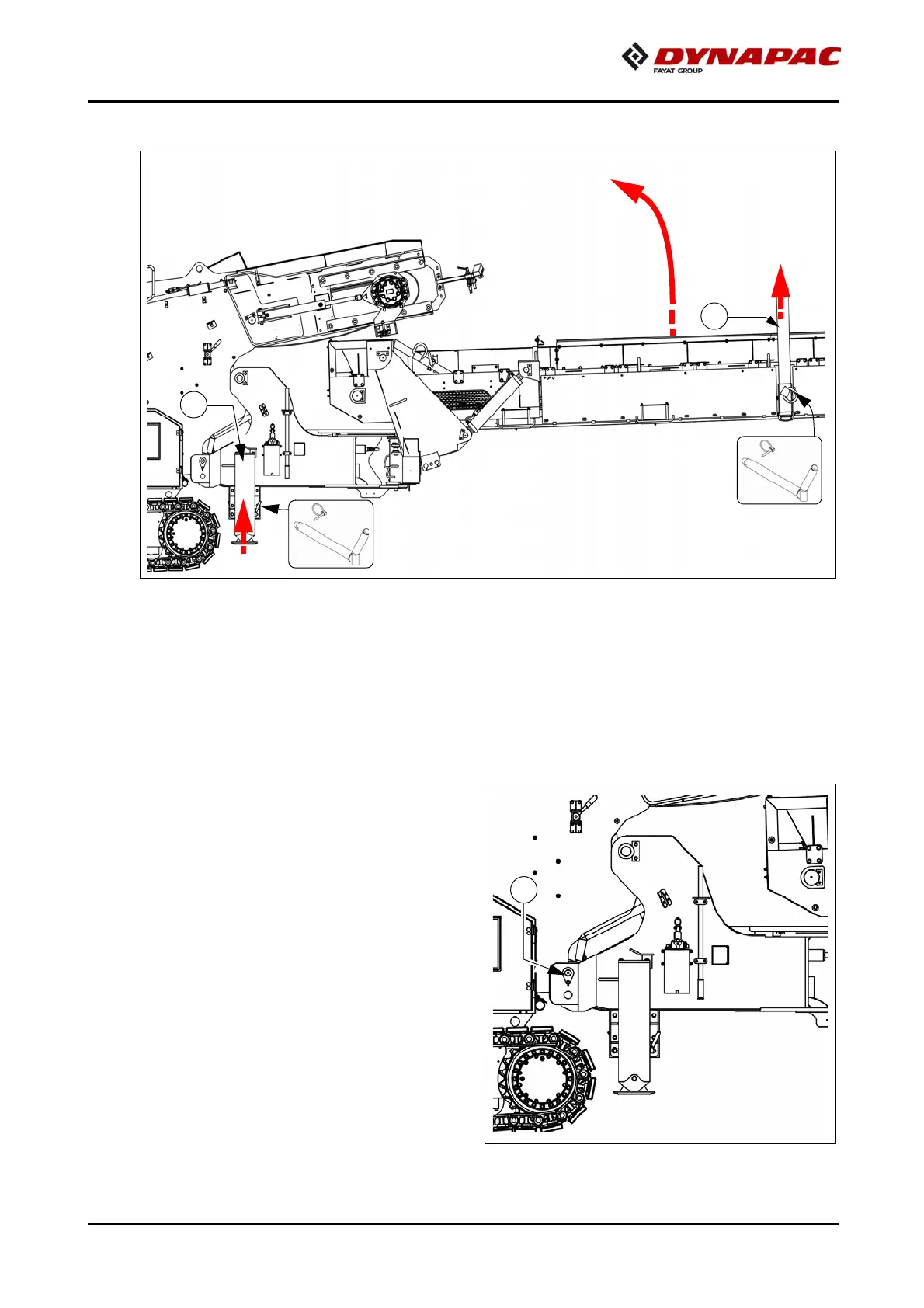

- Open ball valve (21)
- Start vehicle and raise slewing belt only until the standing legs (2) just lose contact
with the ground.
- Push the standing legs (2) into the upper position by hand and secure them here
with the corresponding retaining bolt.
- Using the pump, retract the lift supports (1) completely and secure with the corre-
sponding retaining bolt.
- Insert the bolts (3) on both sides and
secure with the corresponding screw.
