F 32 12
Function check / Check oil brush (3)
f
Perform inspection, cleaning and repairs
whilst the drive motor is stationary!
A

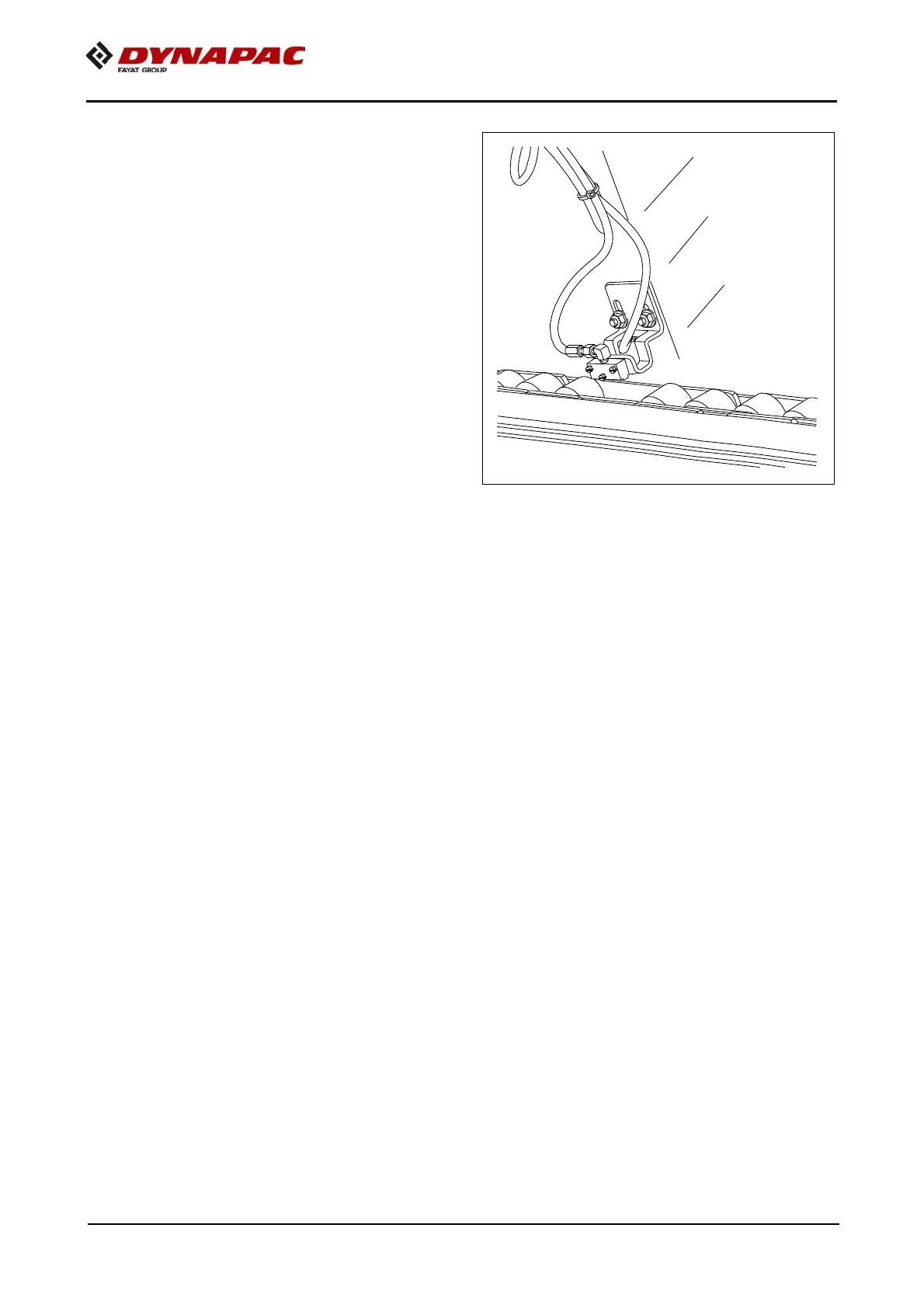

A pair of oil brushes, which apply the lu-
bricant onto the drive chain, is located on
both sides of the conveyor belt.
- After trial operation, check whether an
oil film was applied onto the chain
when the central lubricating system
was running.
- In the event of malfunctions, deter-
mine and immediately rectify
the cause.
- If the brushes are worn on visual in-
spection, they must be exchanged immediately.
m
A disturbed lubricant flow leads to increased wear!
