MAP and VFR GPS Navigator Operation
SkyView HDX Pilot’s User Guide – Revision B 5-15

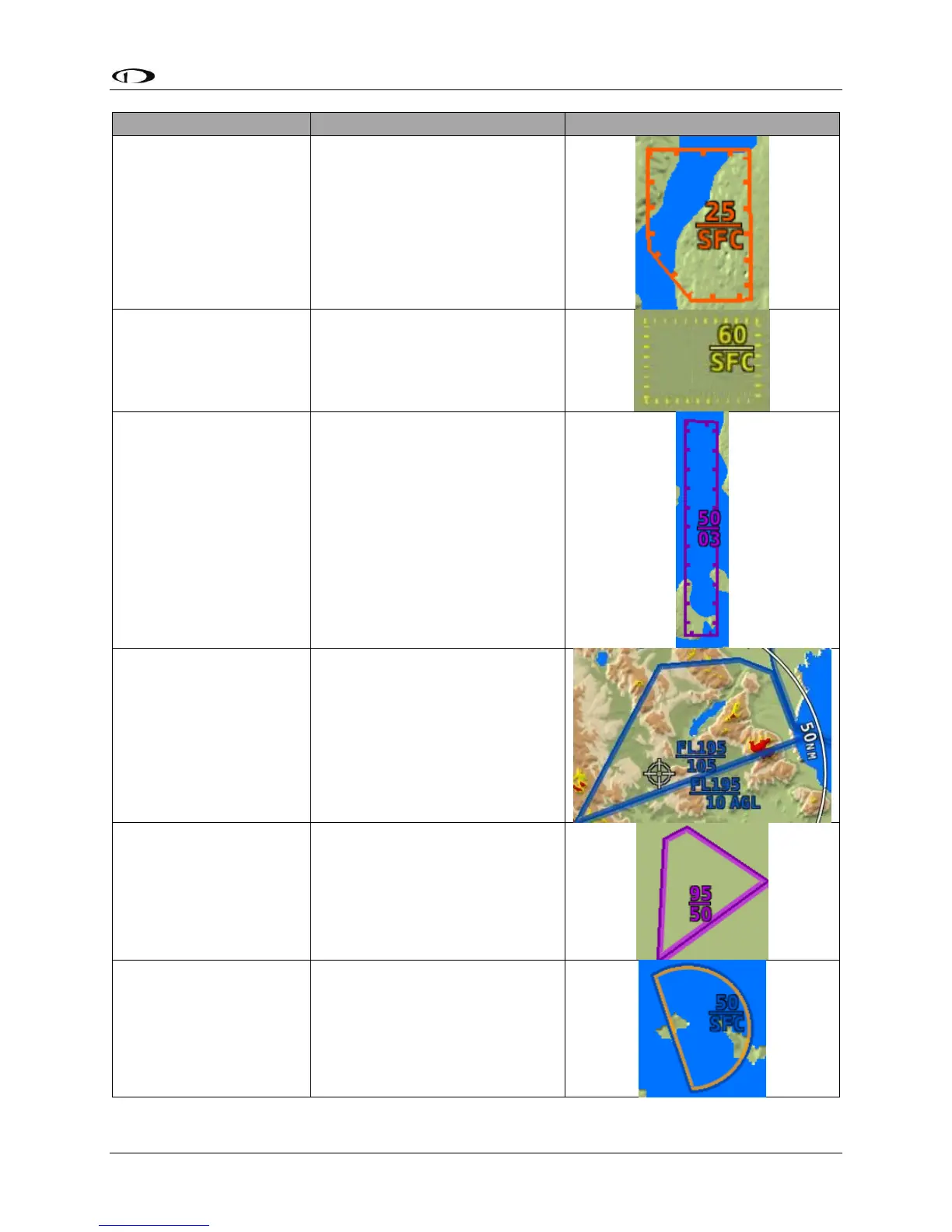

Airspace Type
Color
Example
Restricted and
Prohibited
Solid orange with ticks marks
Warning, Caution,
Training, and Alert
Areas
Yellow tick marks (not solid)
Military Operations
Area (MOA)
Solid purple with ticks marks
TMA / MTMA (Terminal
Control Area)
Solid dark blue with interior
shading
CTA (Control Area)
Solid purple
CTR (Control Zone)
Blue/orange solid
