Edge-Core ES3510MA-DC - Figure 44: Enabling LACP on a Port

C HAPTER 5 | Interface Configuration
Trunk Configuration
– 150 –
To enable LACP for a port:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Aggregation Port from the Step list.
3. Select Configure from the Action list.
4. Click General.
5. Enable LACP on the required ports.
6. Click Apply.

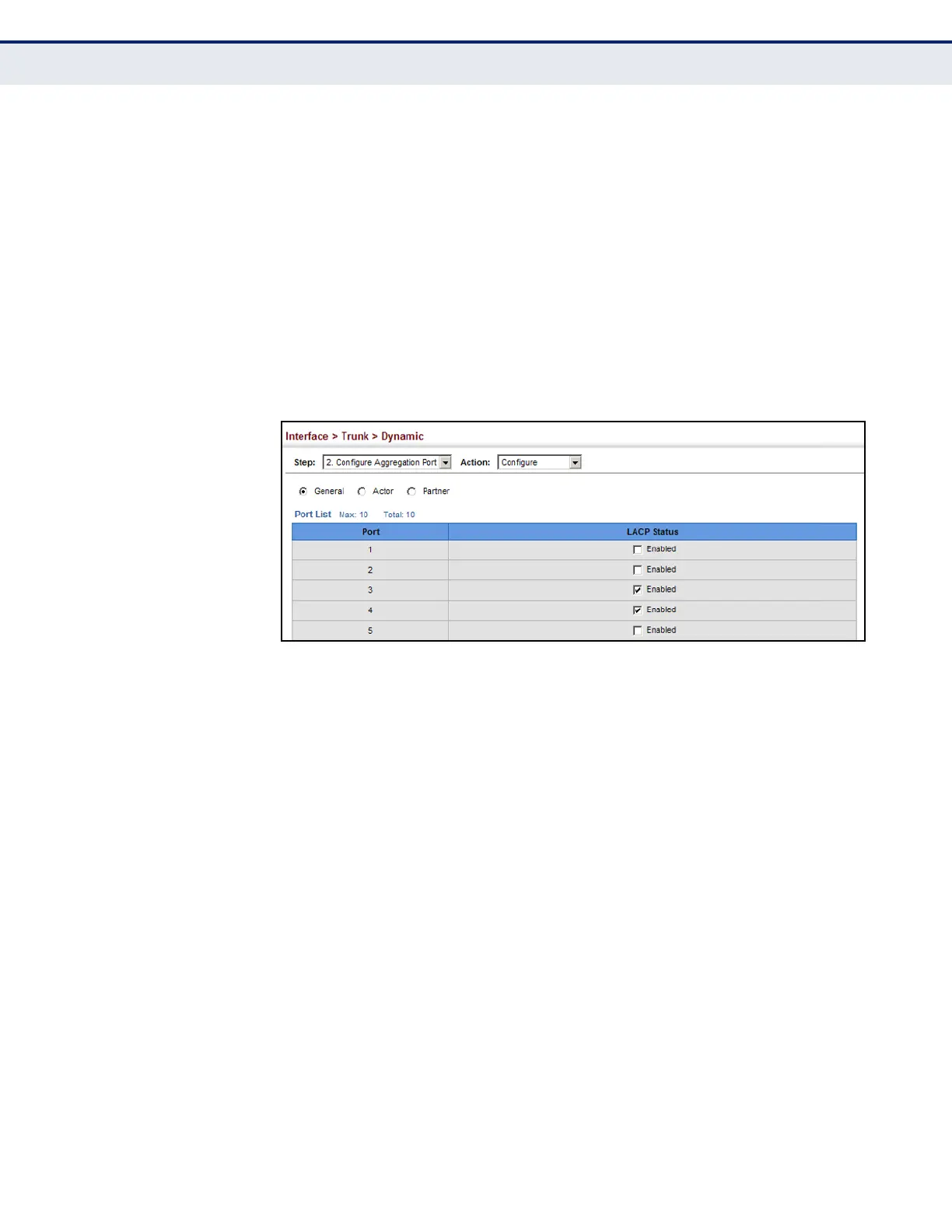

Figure 44: Enabling LACP on a Port
To configure LACP parameters for group members:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Aggregation Port from the Step list.
3. Select Configure from the Action list.
4. Click Actor or Partner.
5. Configure the required settings.
6. Click Apply.
