C
HAPTER
11
| Cl
ass of Servi
ce
Layer 3/4 Priority Settings
– 244 –
T
o show the Co
S/CFI to inte
rnal PHB/drop
precede
nce map:
1.
Click T
raffic, Priority
, CoS to DSCP
.
2.
Selec
t Show from the Action lis
t.
3.
Selec
t a port.

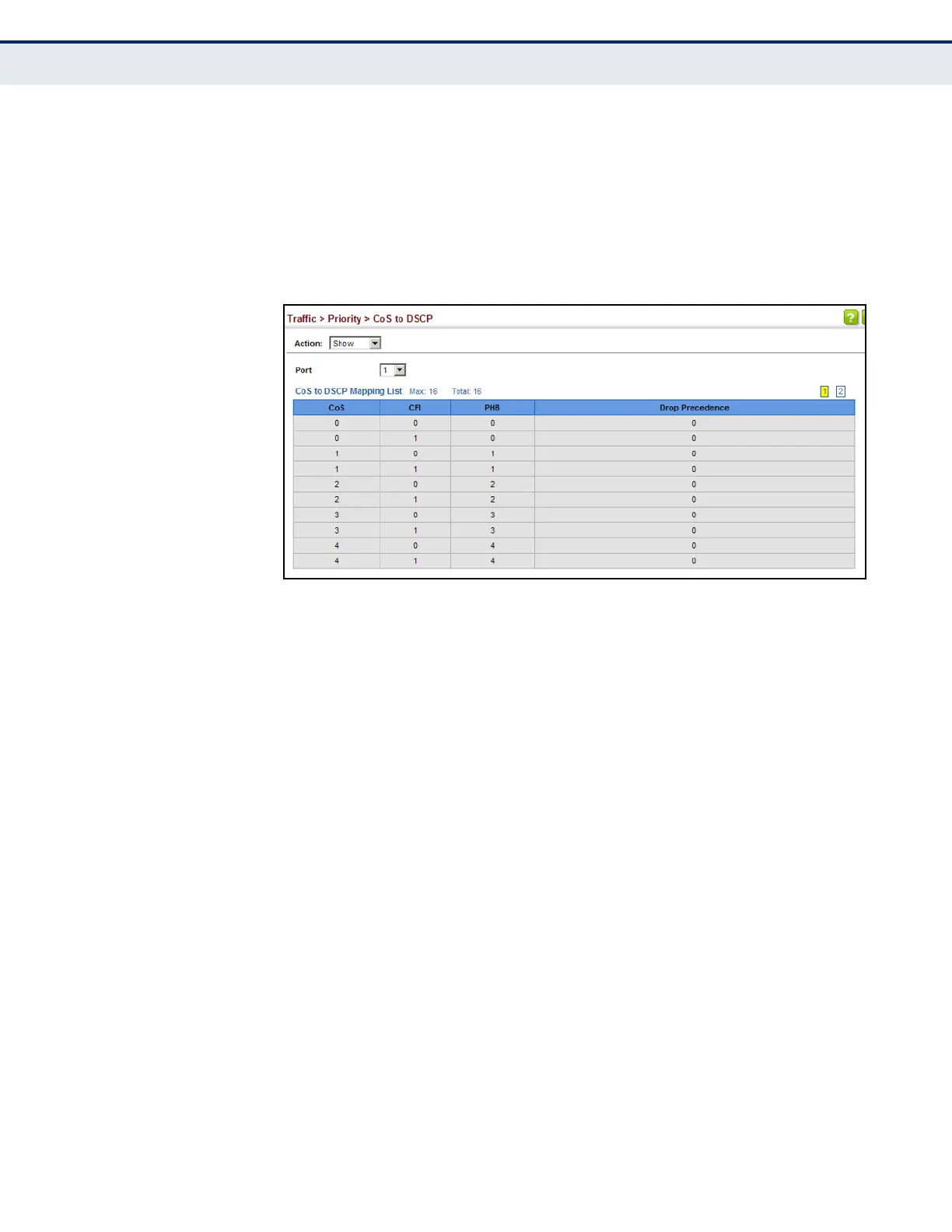

Figure
121:
Show
ing
CoS to
DS
CP Int
ernal M
appi
ng
243
245
