C
HAPTER
6
| VLAN Configuration
IEEE 802.1Q VLANs
– 177 –

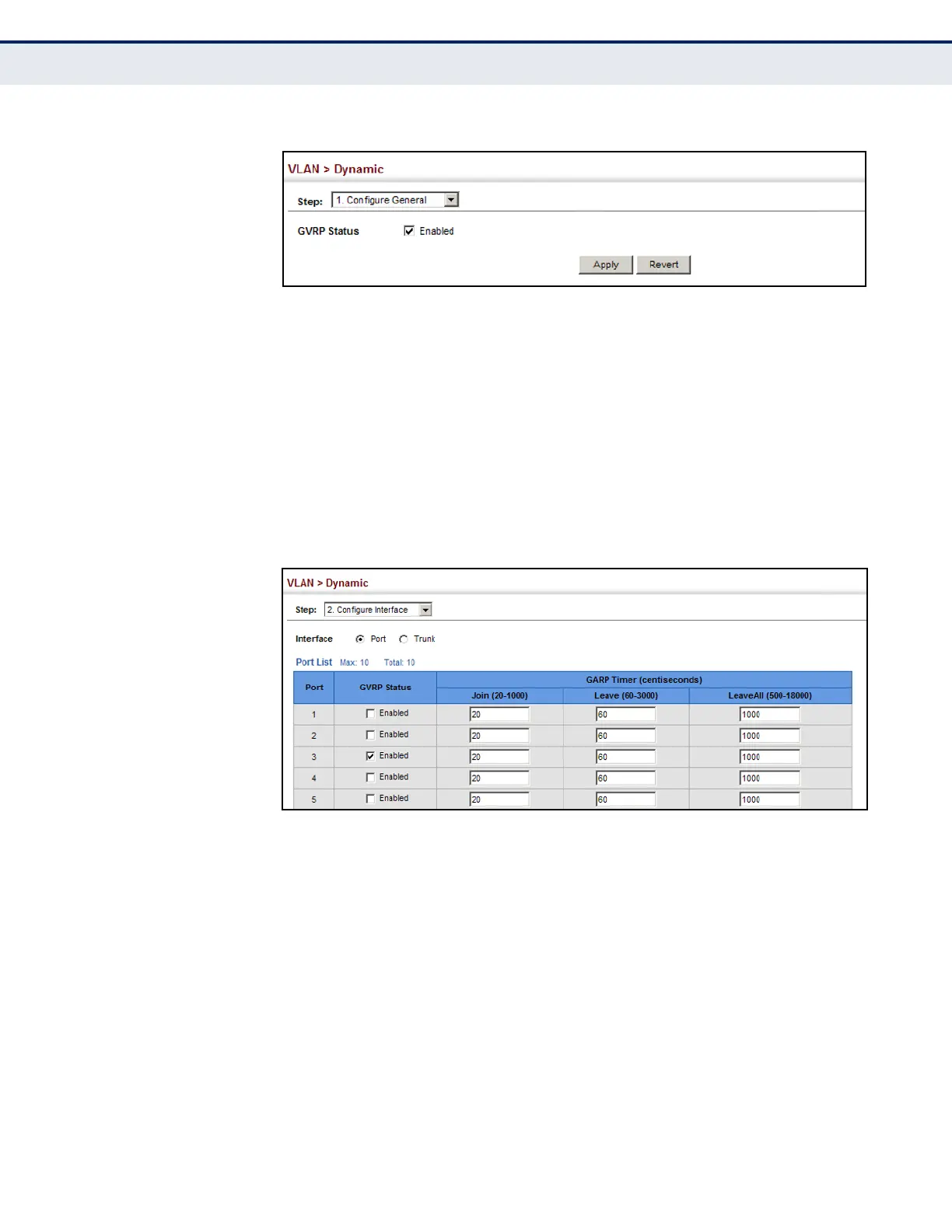

Figure 66: Configuring Global Status of GVRP
To configure GVRP status and timers on a port or trunk:
1. Click VLAN, Dynamic.
2. Select Configure Interface from the Step list.
3. Set the Interface type to display as Port or Trunk.
4. Modify the GVRP status or timers for any interface.
5. Click Apply.
Figure 67: Configuring GVRP for an Interface
To show the dynamic VLAN joined by this switch:
1. Click VLAN, Dynamic.
2. Select Show Dynamic VLAN from the Step list.
3. Select Show VLAN from the Action list.
