C
HAPTER
5
| Interface Configuration
Port Configuration
– 143 –
â–
Not Supported: This message is displayed for any Fast Ethernet
ports that are linked up, or for any Gigabit Ethernet ports linked up
at a speed lower than 1000 Mbps.
â–
Impedance mismatch: Terminating impedance is not in the
reference range.
â—† Ports are linked down while running cable diagnostics.
PARAMETERS
These parameters are displayed:
◆ Port – Switch port identifier.
◆ Type – Displays media type. (FE – Fast Ethernet, GE – Gigabit
Ethernet)
◆ Link Status – Shows if the port link is up or down.
◆ Test Result – The results include common cable failures, as well as the
status and approximate distance to a fault, or the approximate cable
length if no fault is found.
◆ Last Updated – Shows the last time this port was tested.
WEB INTERFACE
To test the cable attached to a port:
1. Click Interface, Port, Cable Test.
2. Click Test for any port to start the cable test.

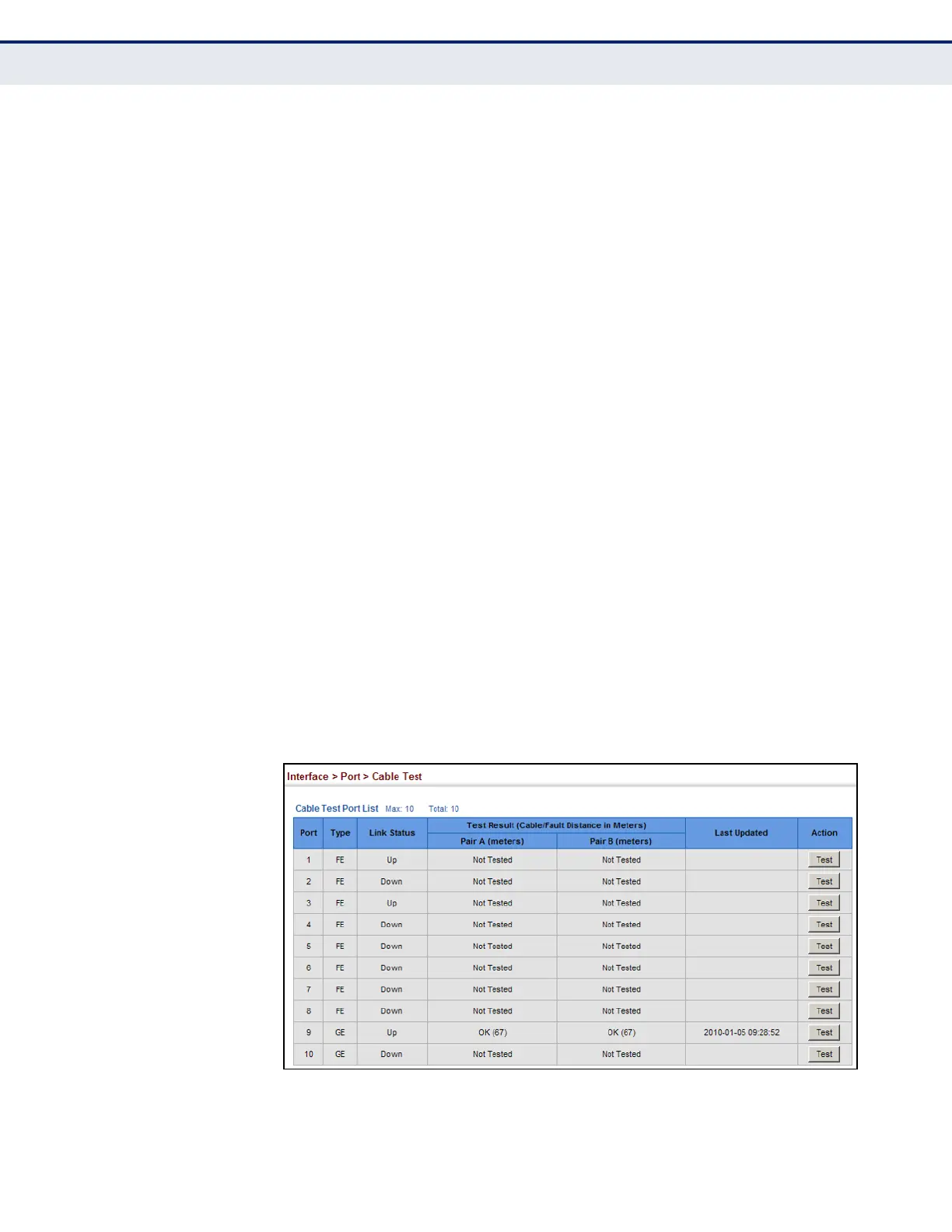

Figure 36: Performing Cable Tests
