| Basic Administration Protocols
Simple Network Management Protocol
– 394 –
WEB INTERFACE
To configure an SNMP group:
1. Click Administration, SNMP.
2. Select Configure Group from the Step list.
3. Select Add from the Action list.
4. Enter a group name, assign a security model and level, and then select
read, write, and notify views.
5. Click Apply

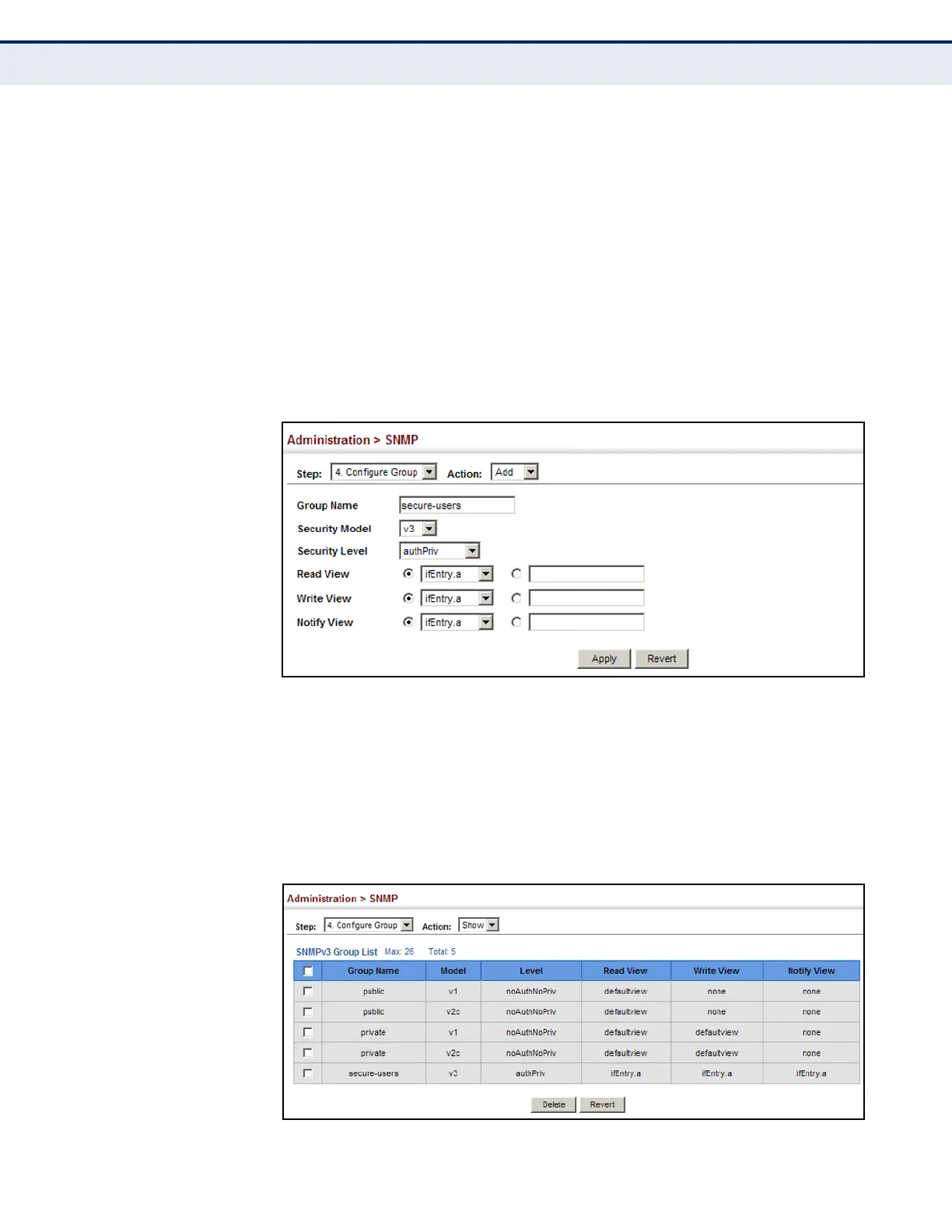

Figure 225: Creating an SNMP Group
To show SNMP groups:
1. Click Administration, SNMP.
2. Select Configure Group from the Step list.
3. Select Show from the Action list.
Figure 226: Showing SNMP Groups
