C
HAPTER
5
| Interface Configuration
Trunk Configuration
– 152 –

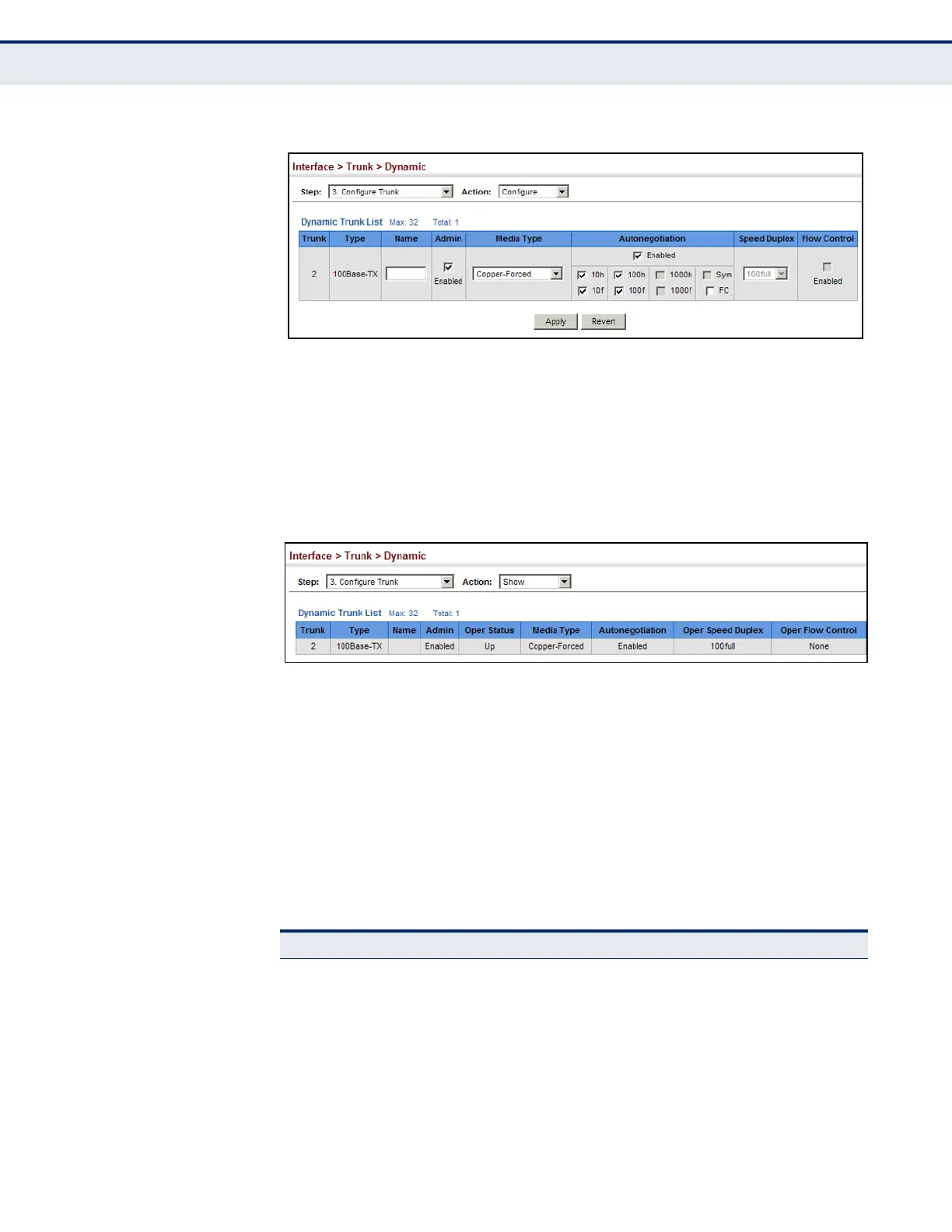

Figure 47: Configuring Connection Settings for Dynamic Trunks
To display connection parameters for a dynamic trunk:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Trunk from the Step List.
3. Select Show from the Action List.
Figure 48: Displaying Connection Parameters for Dynamic Trunks
DISPLAYING LACP
PORT COUNTERS
Use the Interface > Trunk > Dynamic (Configure Aggregation Port - Show
Information - Counters) page to display statistics for LACP protocol
messages.
CLI REFERENCES
â—† "show lacp" on page 747
PARAMETERS
These parameters are displayed:
Table 8: LACP Port Counters
Parameter Description
LACPDUs Sent Number of valid LACPDUs transmitted from this channel group.
LACPDUs Received Number of valid LACPDUs received on this channel group.
Marker Sent Number of valid Marker PDUs transmitted from this channel
group.
Marker Received Number of valid Marker PDUs received by this channel group.
