C
HAPTER
14
| Security Measures
Access Control Lists
– 321 –

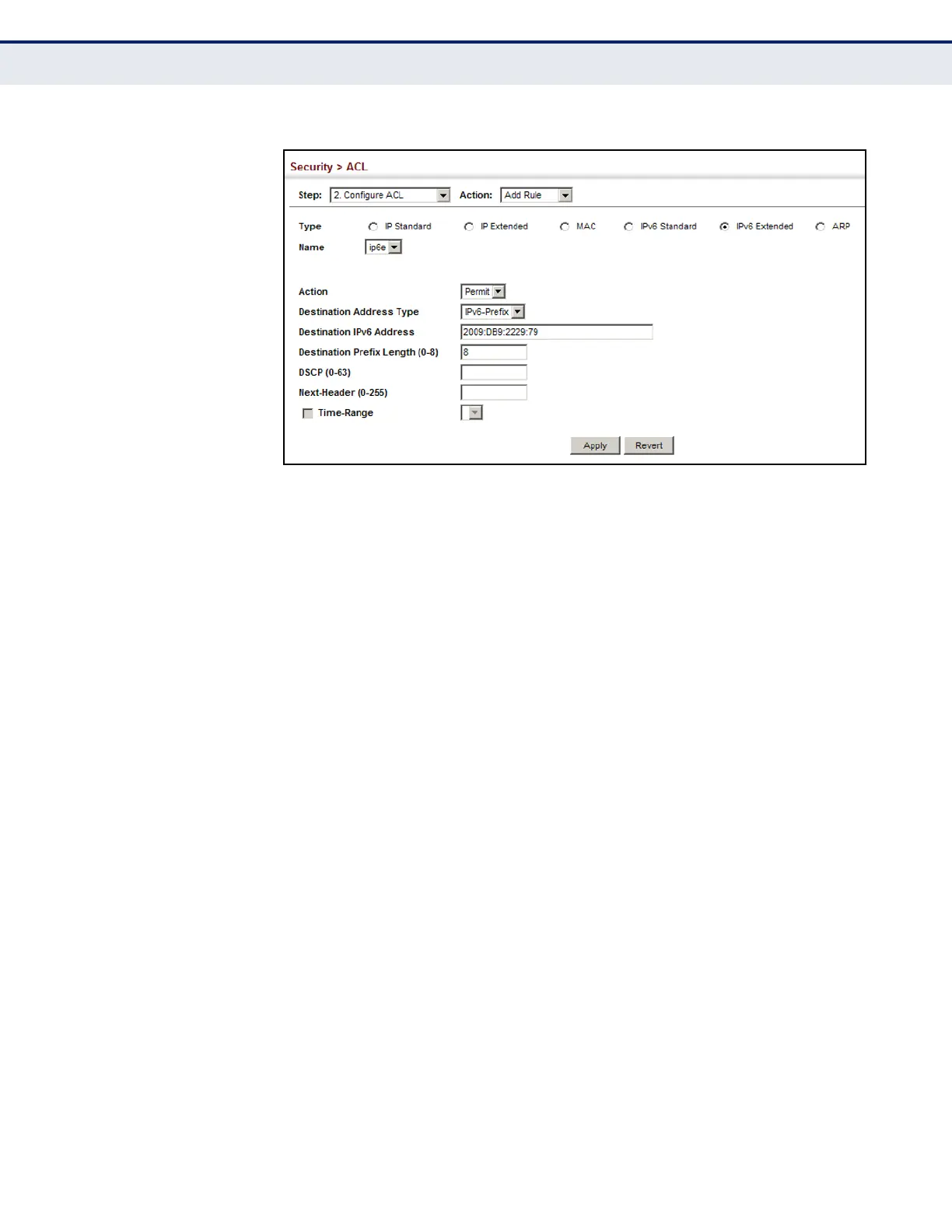

Figure 179: Configuring an Extended IPv6 ACL
CONFIGURING A MAC
ACL
Use the Security > ACL (Configure ACL - Add Rule - MAC) page to
configure a MAC ACL based on hardware addresses, packet format, and
Ethernet type.
CLI REFERENCES
◆ "permit, deny (MAC ACL)" on page 711
◆ "show ip access-list" on page 703
◆ "Time Range" on page 560
PARAMETERS
These parameters are displayed:
◆ Type – Selects the type of ACLs to show in the Name list.
◆ Name – Shows the names of ACLs matching the selected type.
◆ Action – An ACL can contain any combination of permit or deny rules.
◆ Source/Destination Address Type – Use “Any” to include all
possible addresses, “Host” to indicate a specific MAC address, or “MAC”
to specify an address range with the Address and Bit Mask fields.
(Options: Any, Host, MAC; Default: Any)
◆ Source/Destination MAC Address – Source or destination MAC
address.
◆ Source/Destination Bit Mask – Hexadecimal mask for source or
destination MAC address.
◆ Packet Format – This attribute includes the following packet types:
■
Any – Any Ethernet packet type.
■
Untagged-eth2 – Untagged Ethernet II packets.
