| Spanning Tree Algorithm
Configuring Interface Settings for MSTP
– 224 –
To show the VLAN members of an MSTP instance:
1. Click Spanning Tree, MSTP.
2. Select Configure Global from the Step list.
3. Select Show Member from the Action list.

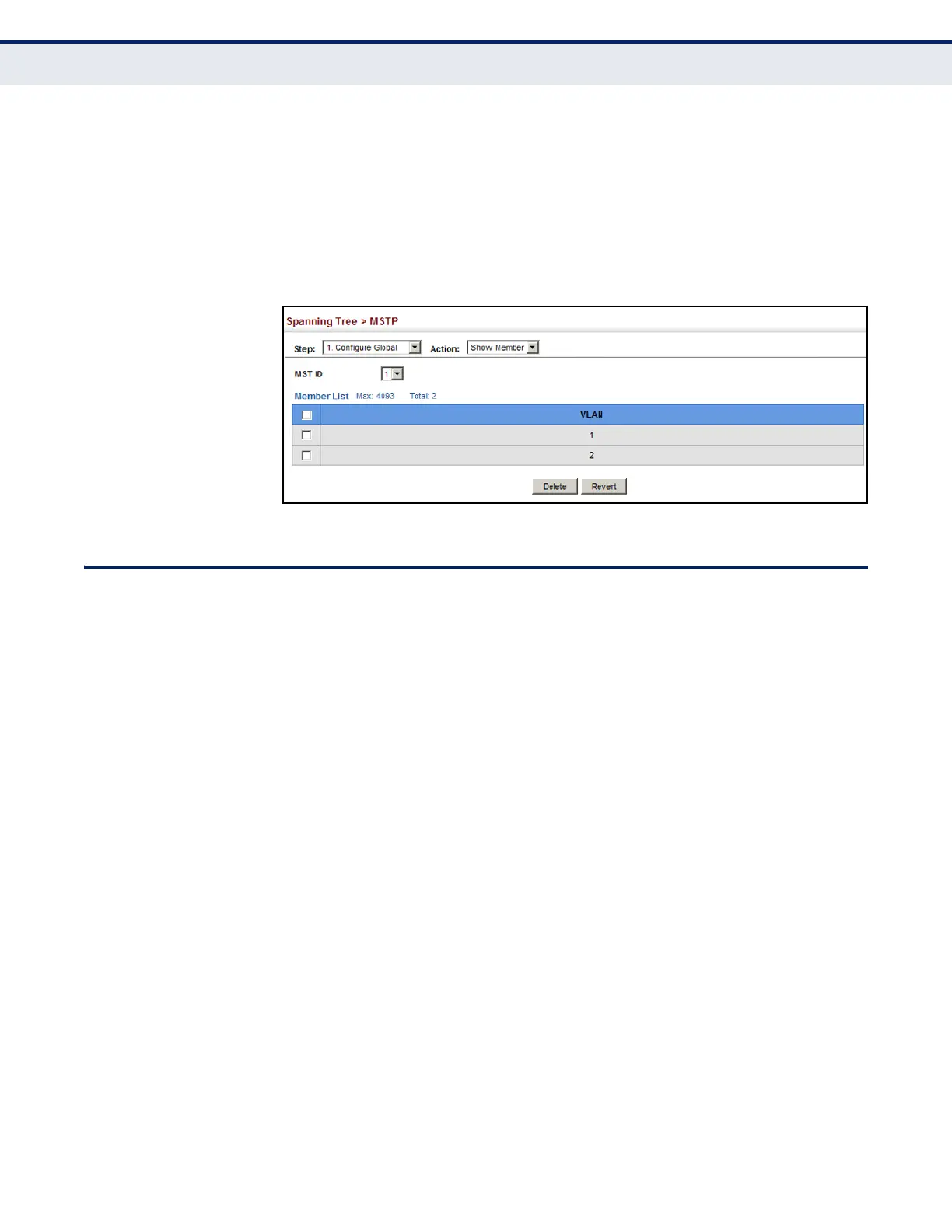

Figure 106: Displaying Members of an MST Instance
CONFIGURING INTERFACE SETTINGS FOR MSTP
Use the Spanning Tree > MSTP (Configure Interface - Configure) page to
configure the STA interface settings for an MST instance.
CLI REFERENCES
â—† "Spanning Tree Commands" on page 783
PARAMETERS
These parameters are displayed:
◆ MST ID – Instance identifier to configure. (Default: 0)
◆ Interface – Displays a list of ports or trunks.
◆ STA Status – Displays the current state of this interface within the
Spanning Tree. (See "Displaying Interface Settings for STA" on
page 217 for additional information.)
â–
Discarding – Port receives STA configuration messages, but does
not forward packets.
â–
Learning – Port has transmitted configuration messages for an
interval set by the Forward Delay parameter without receiving
contradictory information. Port address table is cleared, and the
port begins learning addresses.
â–
Forwarding – Port forwards packets, and continues learning
addresses.
