HAPTER

| Security Measures

IP Source Guard

– 354 –

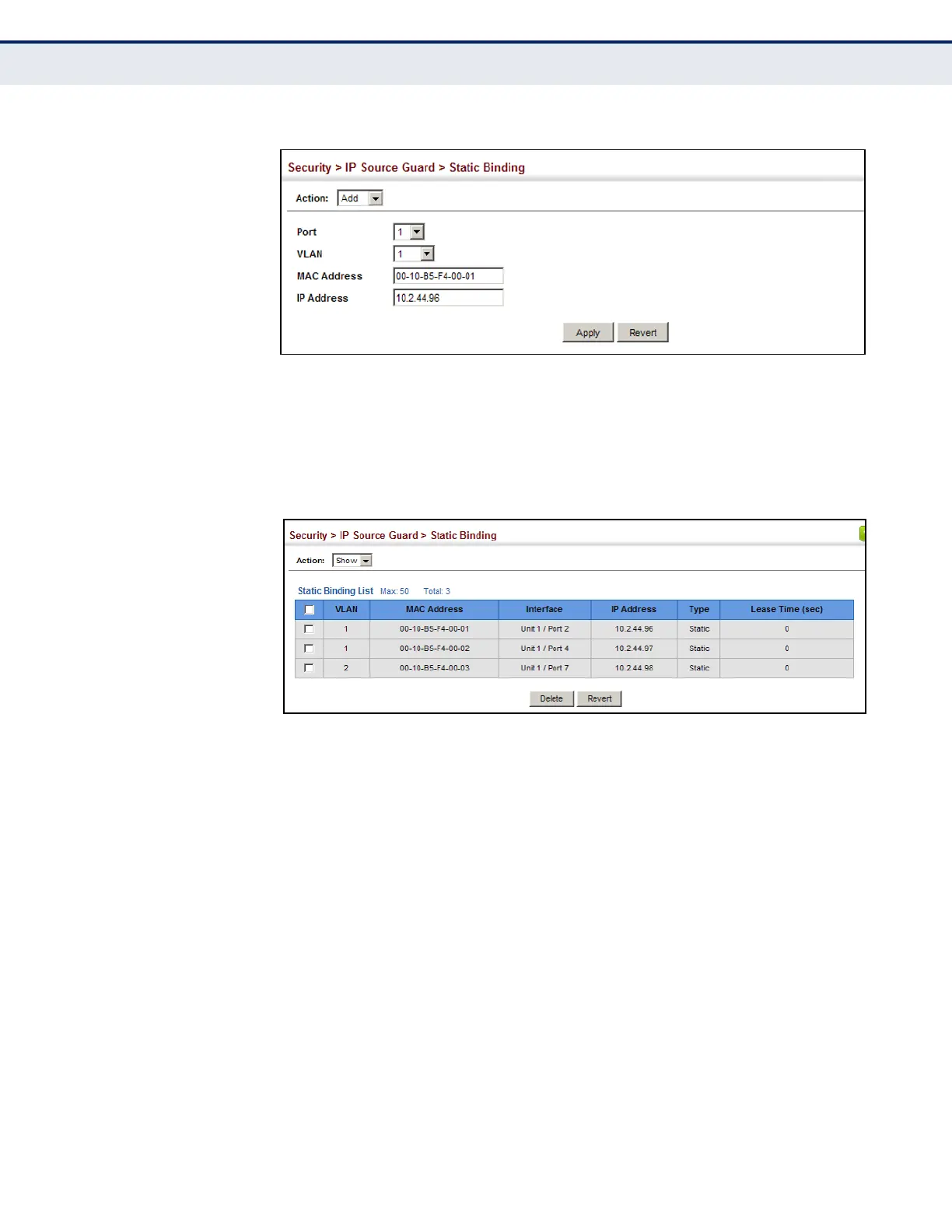

Figure 198: Configuring Static Bindings for IP Source Guard

To display static bindings for IP Source Guard:

1. Click Security, IP Source Guard, Static Configuration.

2. Select Show from the Action list.

Figure 199: Displaying Static Bindings for IP Source Guard

DISPLAYING

INFORMATION FOR

DYNAMIC IP SOURCE

GUARD BINDINGS

Use the Security > IP Source Guard > Dynamic Binding page to display the

source-guard binding table for a selected interface.

CLI REFERENCES

◆ "show ip dhcp snooping binding" on page 681

PARAMETERS

These parameters are displayed:

Query by

◆ Port – A port on this switch.

◆ VLAN – ID of a configured VLAN (Range: 1-4093)

◆ MAC Address – A valid unicast MAC address.

◆ IP Address – A valid unicast IP address, including classful types A, B

or C.
