To configure global settings for MVR:
1. Click Multicast, MVR.
2. Select Configure General from the Action list.
3. Enable MVR globally on the switch, select the MVR VLAN, and set the
forwarding priority to be assigned to all ingress multicast traffic.
4. Click Apply.

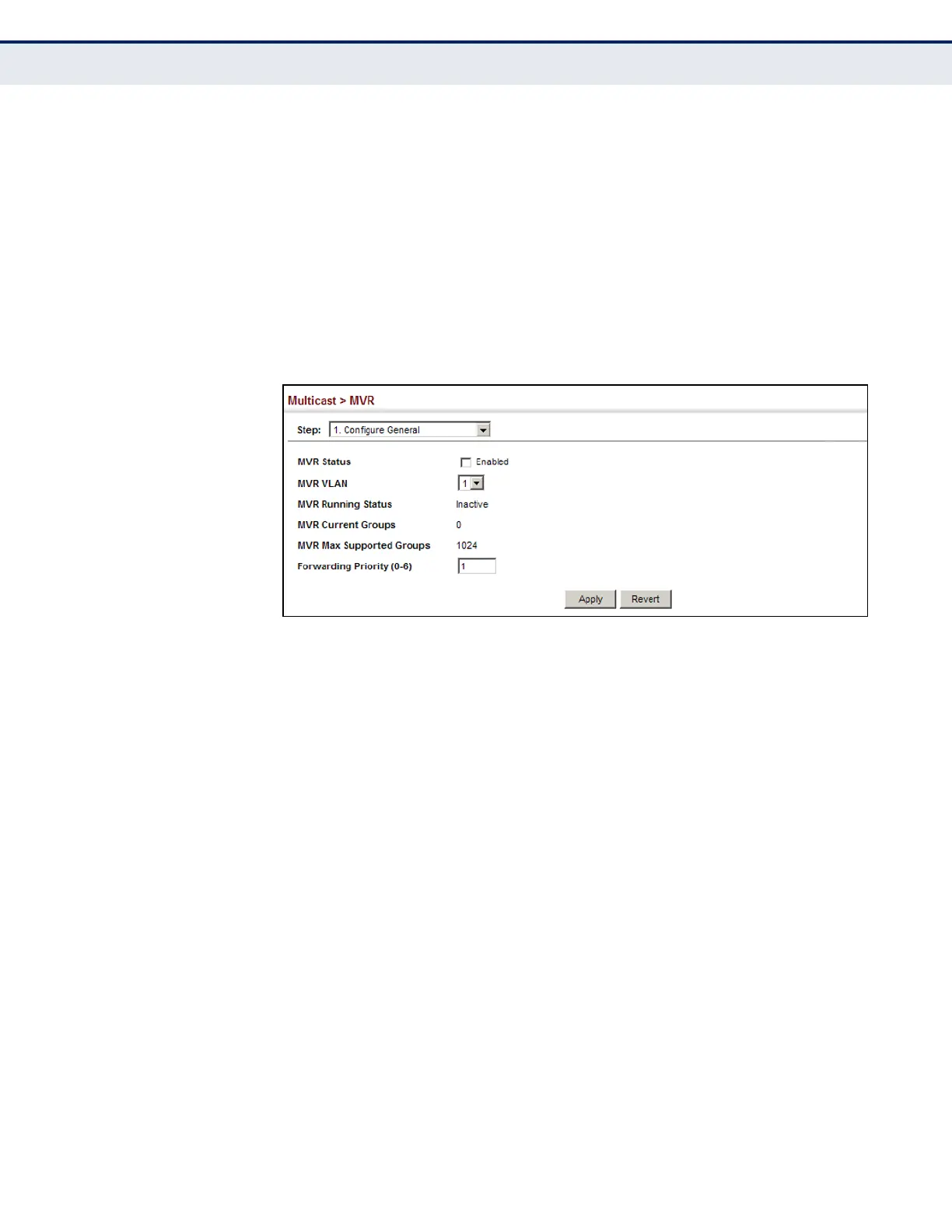

Figure 294: Configuring Global Settings for MVR
CONFIGURING MVR
GROUP ADDRESS
RANGES
Use the Multicast > MVR (Configure Group Range) pages to assign the
multicast group address for required services.
CLI REFERENCES
◆ "Multicast VLAN Registration" on page 992
PARAMETERS
These parameters are displayed:
◆ Group IP Address – IP address for an MVR multicast group.
(Range: 224.0.1.0 - 239.255.255.255; Default: no groups are assigned
to the MVR VLAN)
Any multicast data associated with an MVR group is sent from all source
ports to all receiver ports that have registered to receive data from that
multicast group.
The IP address range of 224.0.0.0 to 239.255.255.255 is used for
multicast streams. MVR group addresses cannot fall within the reserved
IP multicast address range of 224.0.0.x.
◆ Count – The number of contiguous MVR group addresses.
(Range: 1-1024; Default: 0)
