C HAPTER 8 | Spanning Tree Algorithm
Configuring Multiple Spanning Trees
– 222 –
To show the MSTP instances:
1. Click Spanning Tree, MSTP.
2. Select Configure Global from the Step list.
3. Select Show from the Action list.

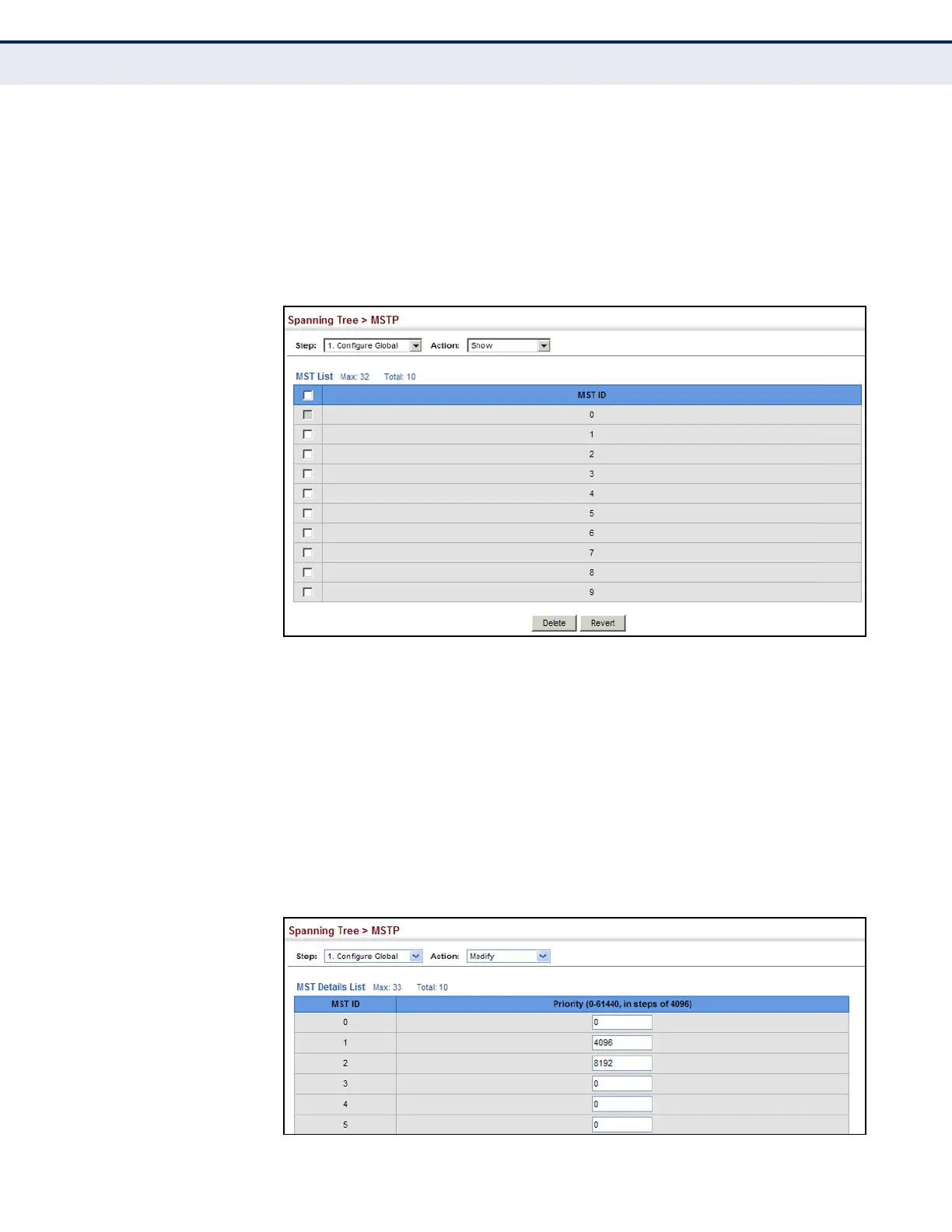

Figure 102: Displaying MST Instances
To modify the priority for an MST instance:
1. Click Spanning Tree, MSTP.
2. Select Configure Global from the Step list.
3. Select Modify from the Action list.
4. Modify the priority for an MSTP Instance.
5. Click Apply.
Figure 103: Modifying the Priority for an MST Instance
