| Address Table Settings
Setting Static Addresses
– 196 –
PARAMETERS
These parameters are displayed:
◆ VLAN – ID of configured VLAN. (Range: 1-4093)
◆ Interface – Port or trunk associated with the device assigned a static
address.
◆ MAC Address – Physical address of a device mapped to this interface.
Enter an address in the form of xx-xx-xx-xx-xx-xx or xxxxxxxxxxxx.
◆ Static Status – Sets the time to retain the specified address.
â–
Delete-on-reset - Assignment lasts until the switch is reset.
â–
Permanent - Assignment is permanent. (This is the default.)
WEB INTERFACE
To configure a static MAC address:
1. Click MAC Address, Static.
2. Select Add from the Action list.
3. Specify the VLAN, the port or trunk to which the address will be
assigned, the MAC address, and the time to retain this entry.
4. Click Apply.

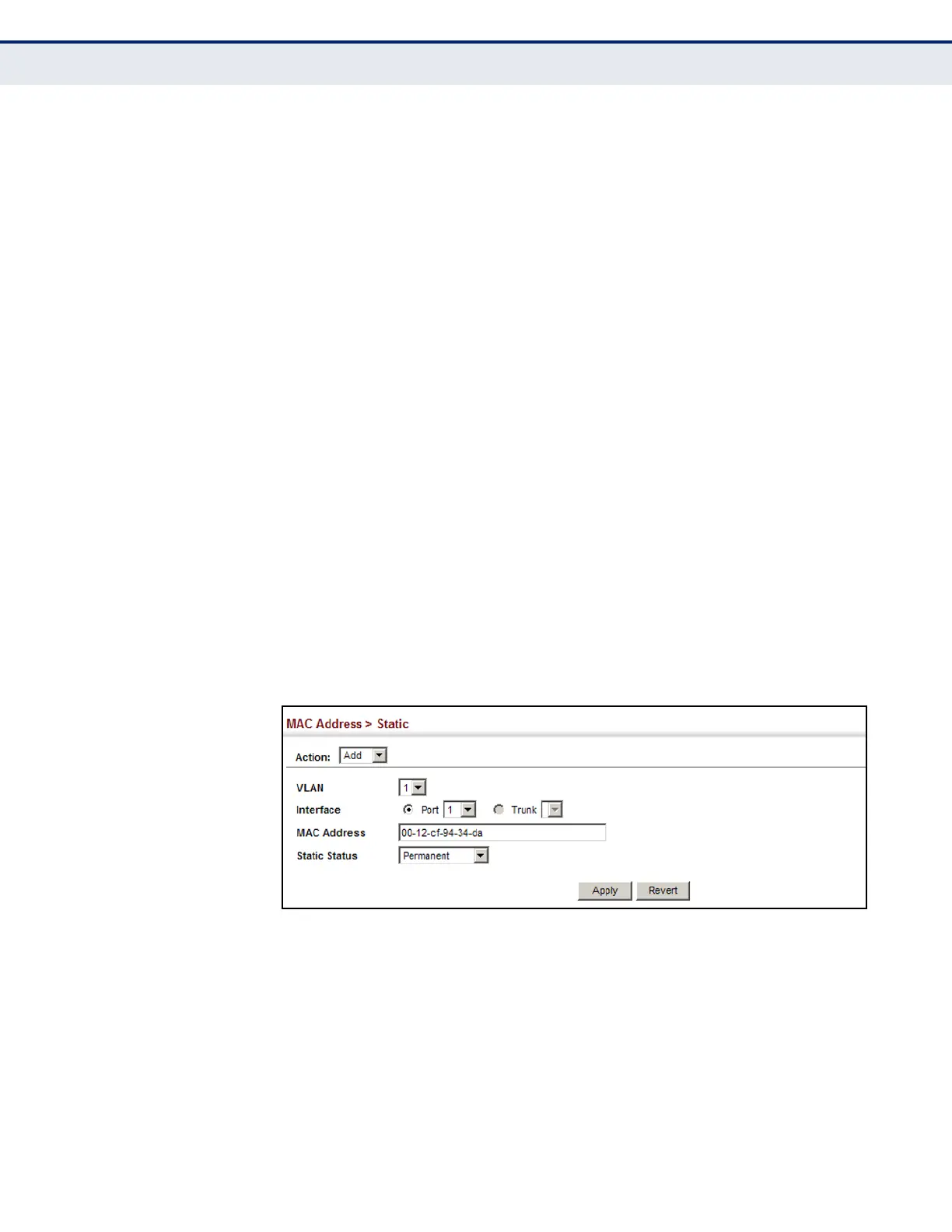

Figure 83: Configuring Static MAC Addresses
To show the static addresses in MAC address table:
1. Click MAC Address, Static.
2. Select Show from the Action list.
