4.7 Configuring the Network Settings

106

4.7.5 Setting the Proxy Server

Set whether a proxy server is used when connecting to the FTP server or SharePoint

server.

When a proxy server is used for update check, an HTTP proxy server should be set.

1. Select [Proxy Server] under [Network Settings].

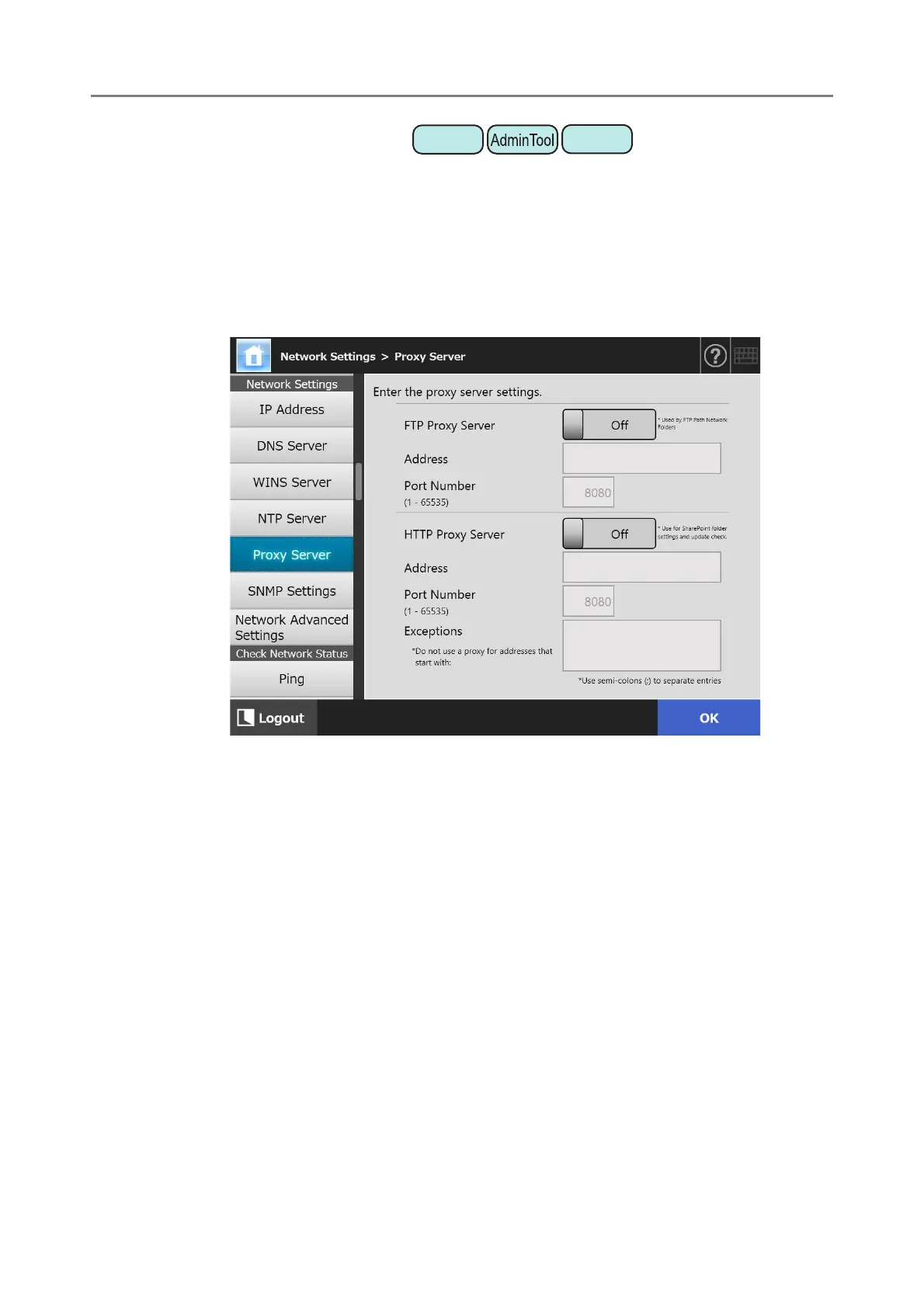

 The [Proxy Server] window appears.

2. Specify each item.

3. Press the [OK] button.

 The information entered is set.
