4.14 Setting the Network Printers

159

■ Viewing the Network Printer Details

1. Select [Network Printer] under [Print].

 The [Network Printer] window appears.

2. Select the desired network printer from the printer list.

3. Press the [Details] button.

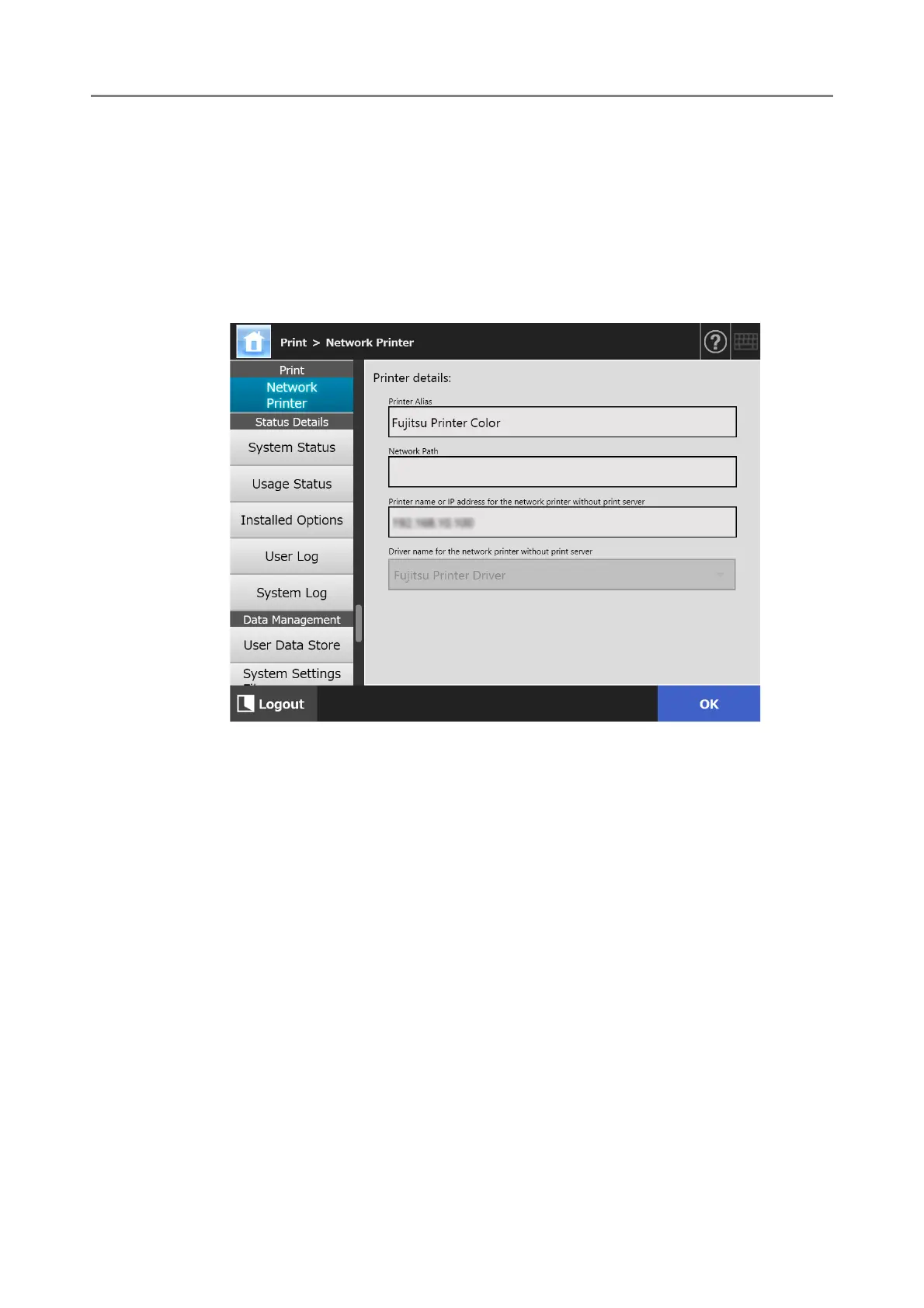

 The information for the selected network printer is displayed.
