1.1 Scanner Features
24
■ Configure and Manage with Ease
Configuration and management of the scanner can be easily performed via the touch
panel on the scanner or via the "Admin Tool" or the "Central Admin Console" installed on
a computer.
When you use the scanner, login to the scanner as a user with the administrator right or
regular user right.
For more details about the operation rights, refer to "1.3 User Types and Operations"
(page 30).
Configuration and management of the scanner must be performed by an administrator.
 Touch panel
Scanner settings management can be implemented directly via the scanner's touch
panel.
Setting mode
The administrator can operate the touch panel in the following setting modes.
 Basic mode
A setting mode for Administrators with basic knowledge of computers.
Basic required scanner settings can be performed.
 Advanced mode
A setting mode for Administrators with advanced knowledge of networks and
servers.
Settings which are more advanced than those of Basic mode, such as
authentication server, server environment, and advanced scanning settings,
can be configured.
For details about the configuration of setting modes, refer to "4.3.1 Configuring the
Setting Mode" (page 77).

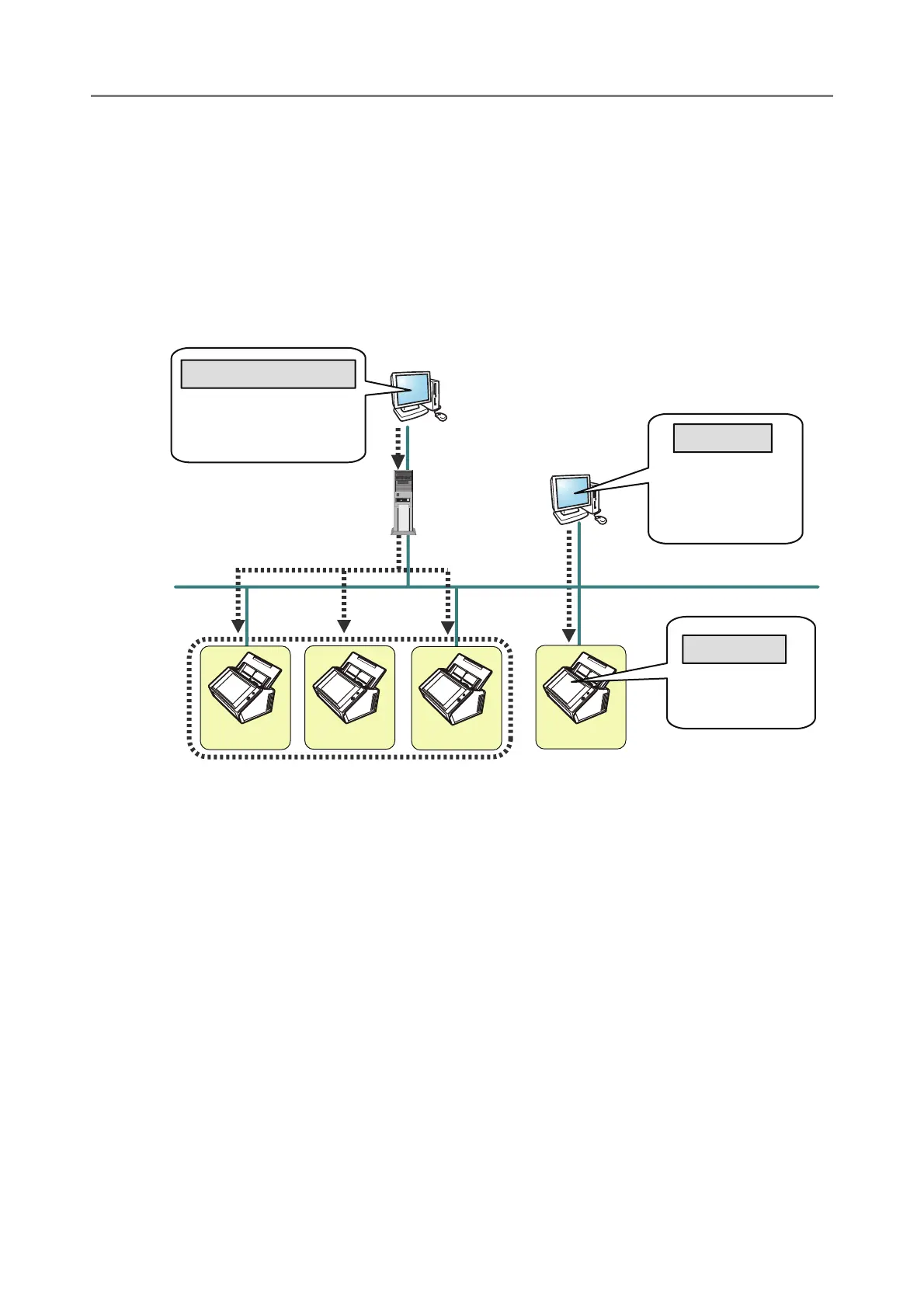

Central Admin Server
Central Admin Console
Admin Tool
Set multiple scanners
at a t ime via t he
netw
or
ork interface
Set one scanner at
a t ime via t he
network interface
Scanner
Scanner
Scanner
Scanner
Co m p u t er
Co m p u t er
Direct ly set one
scanner at a t ime
Touch Panel

Fujitsu N7100 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 3048 mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	25 ppm
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	50 ipm
Black/white scanning color modes	Grayscale, Monochrome
Display	LCD
Scanner type	ADF scanner
Product color	Black
Display diagonal	8.4 \
Display resolution	1024 x 768 pixels
Scan to	E-mail, E-mail Server, Fax, File, FTP
Sensor type	CIS
Scan file formats	JPG, PDF, TIFF
Daily duty cycle (max)	400 pages
Supported network protocols	TCP/IP(IPv4 / IPv6), DNS, DHCP, SMTP, SMB, LDAP, NTP, FTP, HTTP, SNMP
Auto document feeder (ADF) input capacity	50 sheets
Maximum scan area (ADF)	216 x 355.6 mm
Minimum scan area (ADF)	50.8 x 50.8 mm
ISO A-series sizes (A0...A9)	A4, A5, A6, A8
ISO B-series sizes (B0...B9)	B5, B6
Scanning media types supported	Business Card, Plain paper, Plastic Card, Post Card(JPN), Thick paper, Thin paper
Maximum ISO A-series paper size	A4
Auto Document Feeder (ADF) media weight	40 - 209 g/m²
USB version	2.0
Standard interfaces	Ethernet, USB 1.1, USB 2.0
Input voltage	100-240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	38 W
Power consumption (PowerSave)	2 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	RoHS, ENERGY STAR
Bundled software	Scanner Central Admin Server
Ethernet LAN data rates	10, 100, 1000 Mbit/s

Weight and Dimensions

Depth	232 mm
Width	300 mm
Height	172 mm
Weight	6000 g
