5.2 Using Touch Panel Windows: Regular User

225

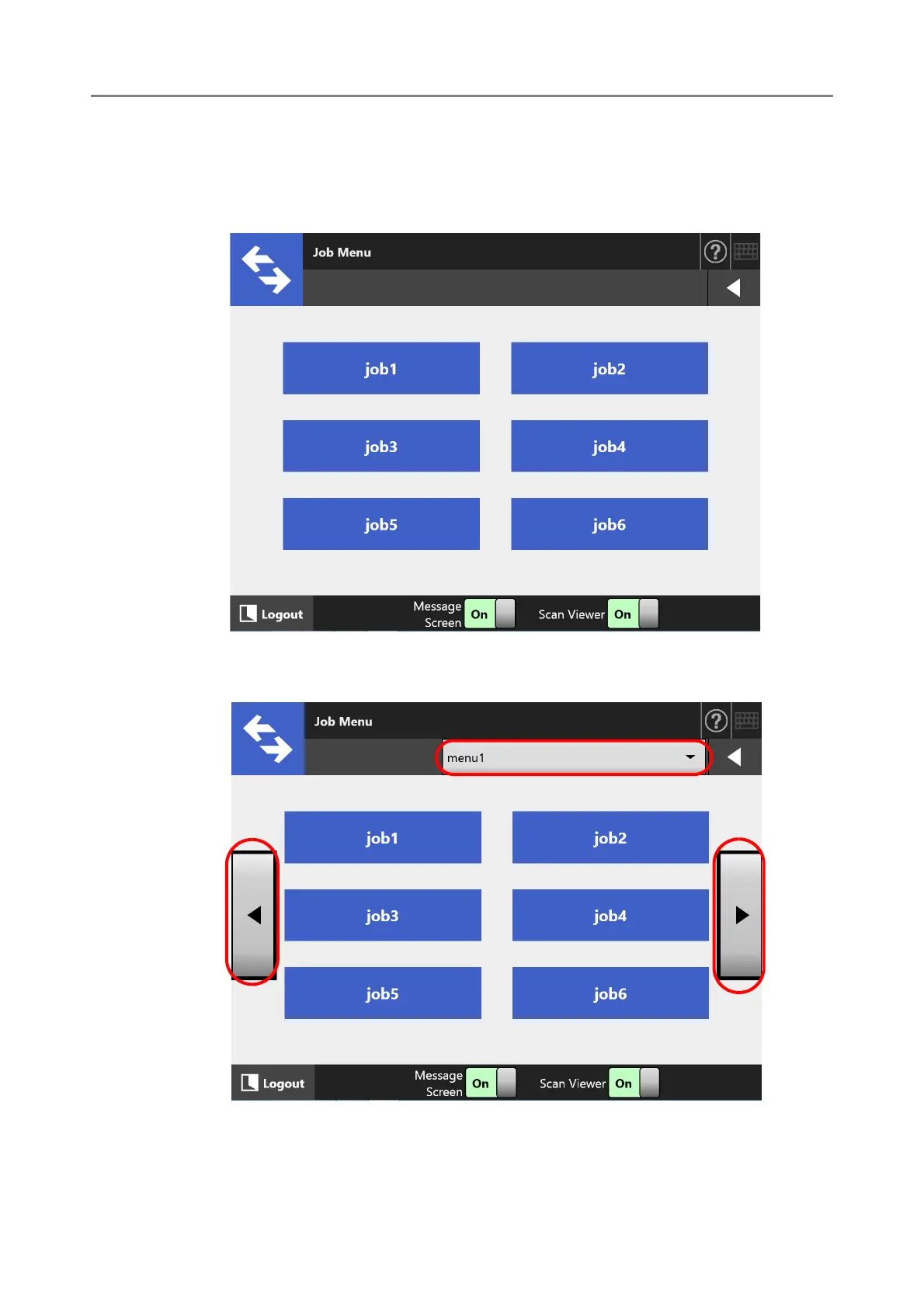

5.2.2 [Job Menu] Window

The types of buttons displayed on the menu differs according to the job settings.

In the following example, six jobs are set.

When a regular user belongs to multiple job groups, a menu and buttons to switch the

[Job Menu] window appear as shown below.
