5.2 Using Touch Panel Windows: Regular User

5.2.1 [Main Menu] Window

The types of buttons displayed on the menu differ, for example, according to the settings

of the linked server.

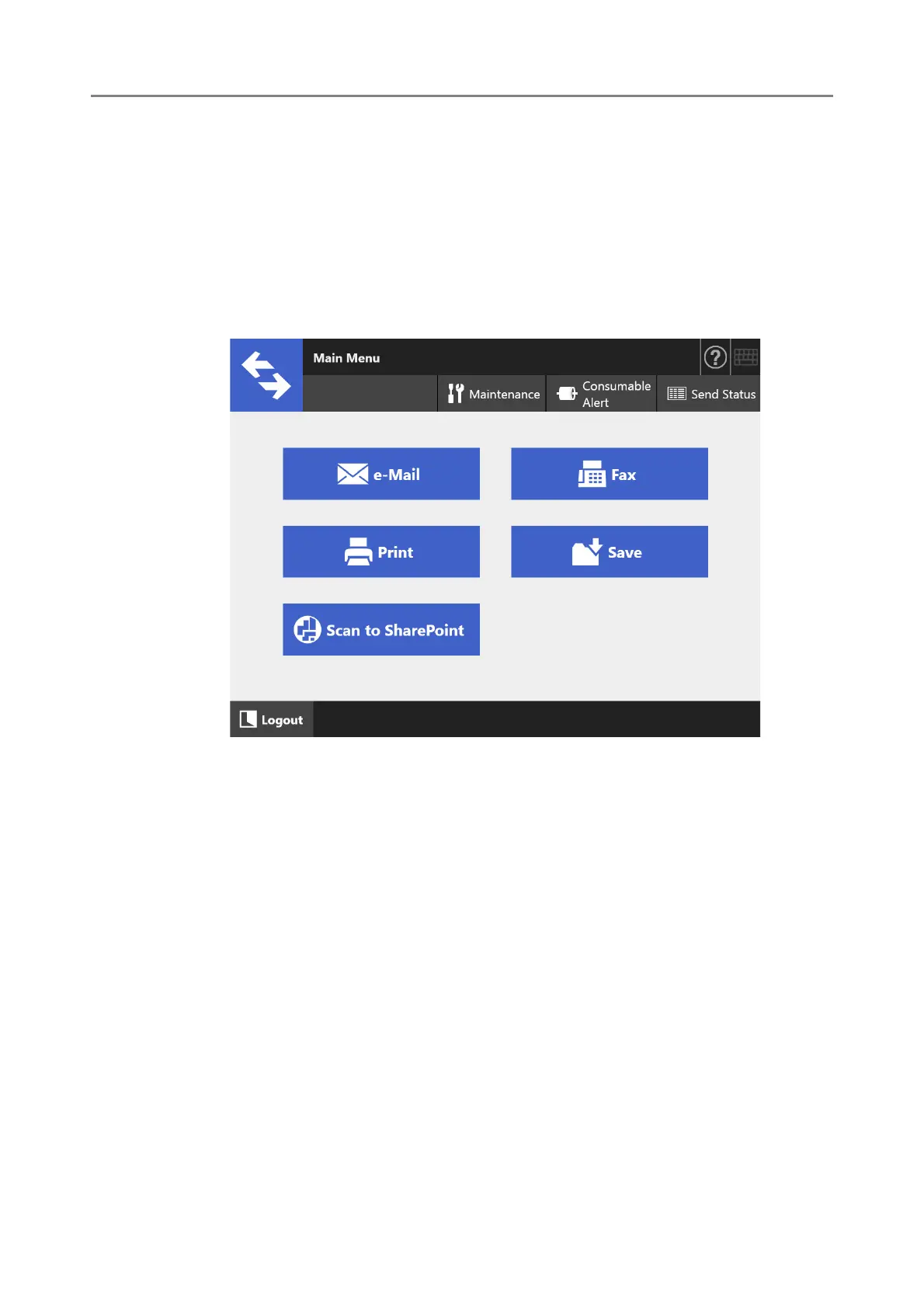

When e-Mail, Fax, Print, Save, and Scan to SharePoint are set, the following window is

displayed.
