4.16 Managing the User Data Store and System Settings
171
4.16.2 Maintaining the System Settings
The scanner's system settings set by the administrator can be saved in CSV format,
backed up, restored, or returned to their factory default values.
The system settings refer to the information that is set by the administrator in each
window. However, the system settings do not contain the information about the system
updates, options and Add-ins that are installed by the administrator.
Downloading the System Settings in CSV Format
System settings downloaded in CSV format may be viewed by using spreadsheet
software.
CSV system settings files are of the following format:
"Function_name", "Option_name", "Value"
The default file name is "Configuration_download.csv".

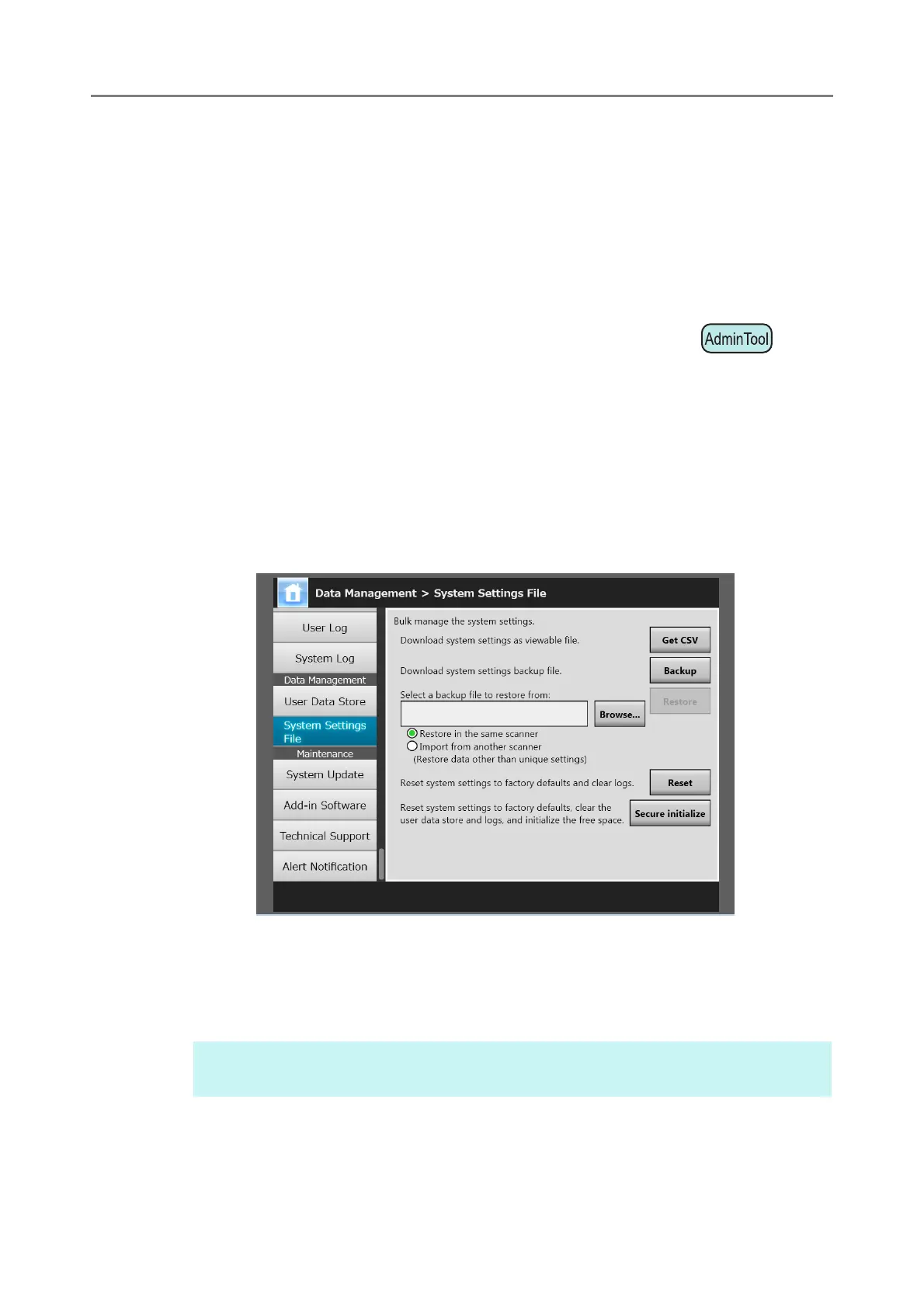

1. Select [System Settings File] under [Data Management].
The [System Settings File] window appears.
2. Press the [Get CSV] button.
The [File Download] dialog box appears.
3. Make sure there is enough free space on the disk where the file is to be
saved and press the [Save] button.
The [Save As] dialog box appears.
HINT
If there is not enough free disk space, an incomplete file may be saved.

Table of Contents

Other manuals for Fujitsu N7100

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Fujitsu N7100 and is the answer not in the manual?

Fujitsu N7100 Specifications

General IconGeneral
Film scanningNo
Color scanningYes
Input color depth- bit
Maximum scan size216 x 3048 mm
Output color depth24 bit
ADF scan speed (b/w, A4)25 ppm
Optical scanning resolution600 x 600 DPI
Duplex ADF scan speed (b/w, A4)50 ipm
Black/white scanning color modesGrayscale, Monochrome
DisplayLCD
Scanner typeADF scanner
Product colorBlack
Display diagonal8.4 \
Display resolution1024 x 768 pixels
Scan toE-mail, E-mail Server, Fax, File, FTP
Sensor typeCIS
Scan file formatsJPG, PDF, TIFF
Daily duty cycle (max)400 pages
Supported network protocolsTCP/IP(IPv4 / IPv6), DNS, DHCP, SMTP, SMB, LDAP, NTP, FTP, HTTP, SNMP
Auto document feeder (ADF) input capacity50 sheets
Maximum scan area (ADF)216 x 355.6 mm
Minimum scan area (ADF)50.8 x 50.8 mm
ISO A-series sizes (A0...A9)A4, A5, A6, A8
ISO B-series sizes (B0...B9)B5, B6
Scanning media types supportedBusiness Card, Plain paper, Plastic Card, Post Card(JPN), Thick paper, Thin paper
Maximum ISO A-series paper sizeA4
Auto Document Feeder (ADF) media weight40 - 209 g/m²
USB version2.0
Standard interfacesEthernet, USB 1.1, USB 2.0
Input voltage100-240 V
Power supply typeAC
AC input frequency50 - 60 Hz
Power consumption (standby)1 W
Power consumption (typical)38 W
Power consumption (PowerSave)2 W
Operating temperature (T-T)5 - 35 °C
Operating relative humidity (H-H)20 - 80 %
Sustainability certificatesRoHS, ENERGY STAR
Bundled softwareScanner Central Admin Server
Ethernet LAN data rates10, 100, 1000 Mbit/s
Weight and Dimensions IconWeight and Dimensions
Depth232 mm
Width300 mm
Height172 mm
Weight6000 g
