4.10 Setting the Authentication Server

124

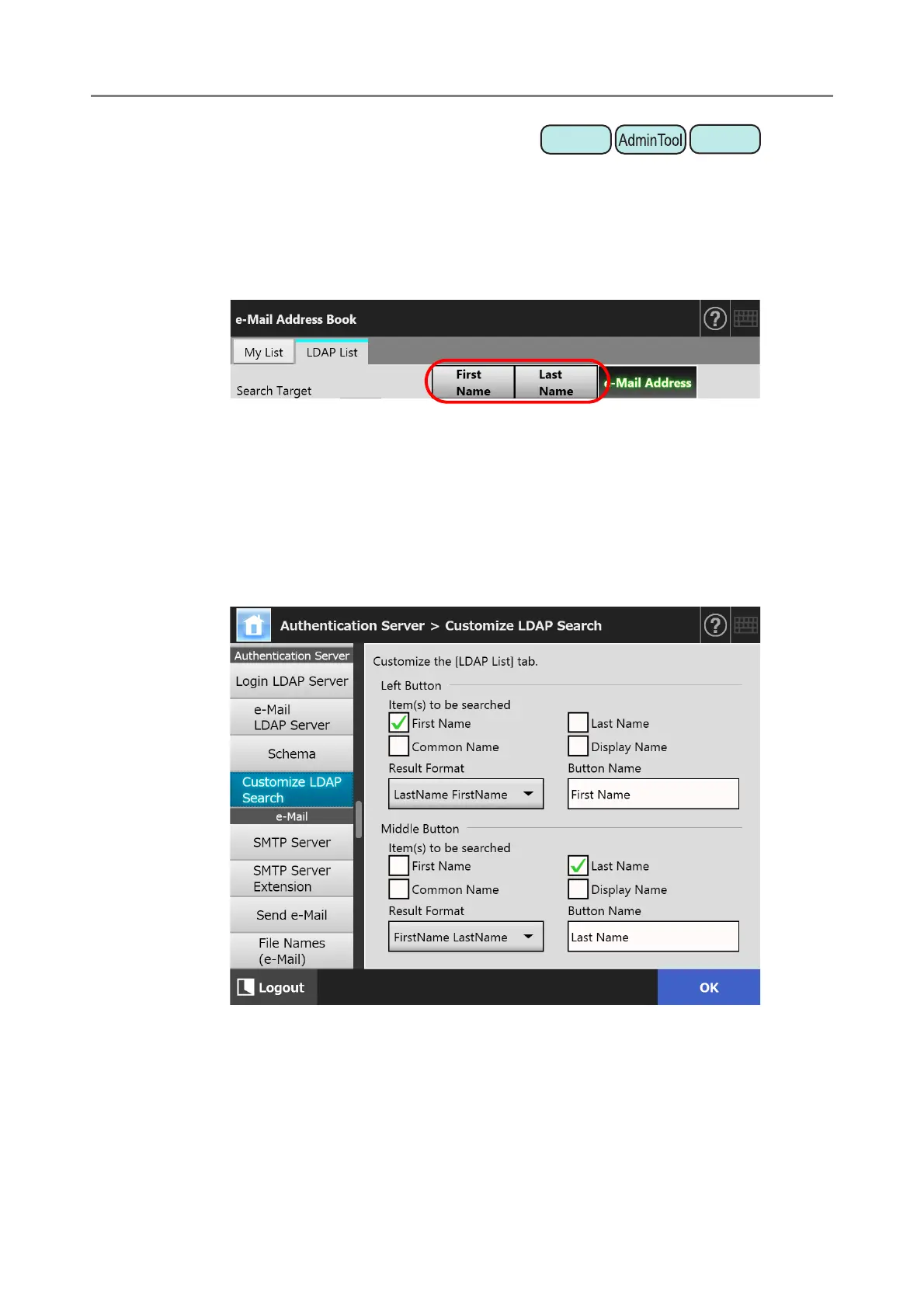

4.10.4 Setting the LDAP Search Parameters

Set the LDAP search parameters.

LDAP search parameters are search conditions specified for the (left and middle) buttons

displayed on the LDAP List in the [e-Mail Address Book] window.

The buttons are, for example, the [First Name] and [Last Name] buttons on the following

window.

By pressing a search condition button, the display order of the e-mail addresses

registered in the e-mail address book can be changed according to the search condition

specified for the button.

For details about the [e-Mail Address Book] window - [LDAP List] tab, refer to "5.4.1

Selecting an e-Mail Target from the e-Mail Address Book" (page 233).

1. Select [Customize LDAP Search] under [Authentication Server].

 The [Customize LDAP Search] window appears.
