5.9 Setting the Scan Options

303

5.9.16 Page Orientation

Scanned data is automatically rotated to the correct orientation.

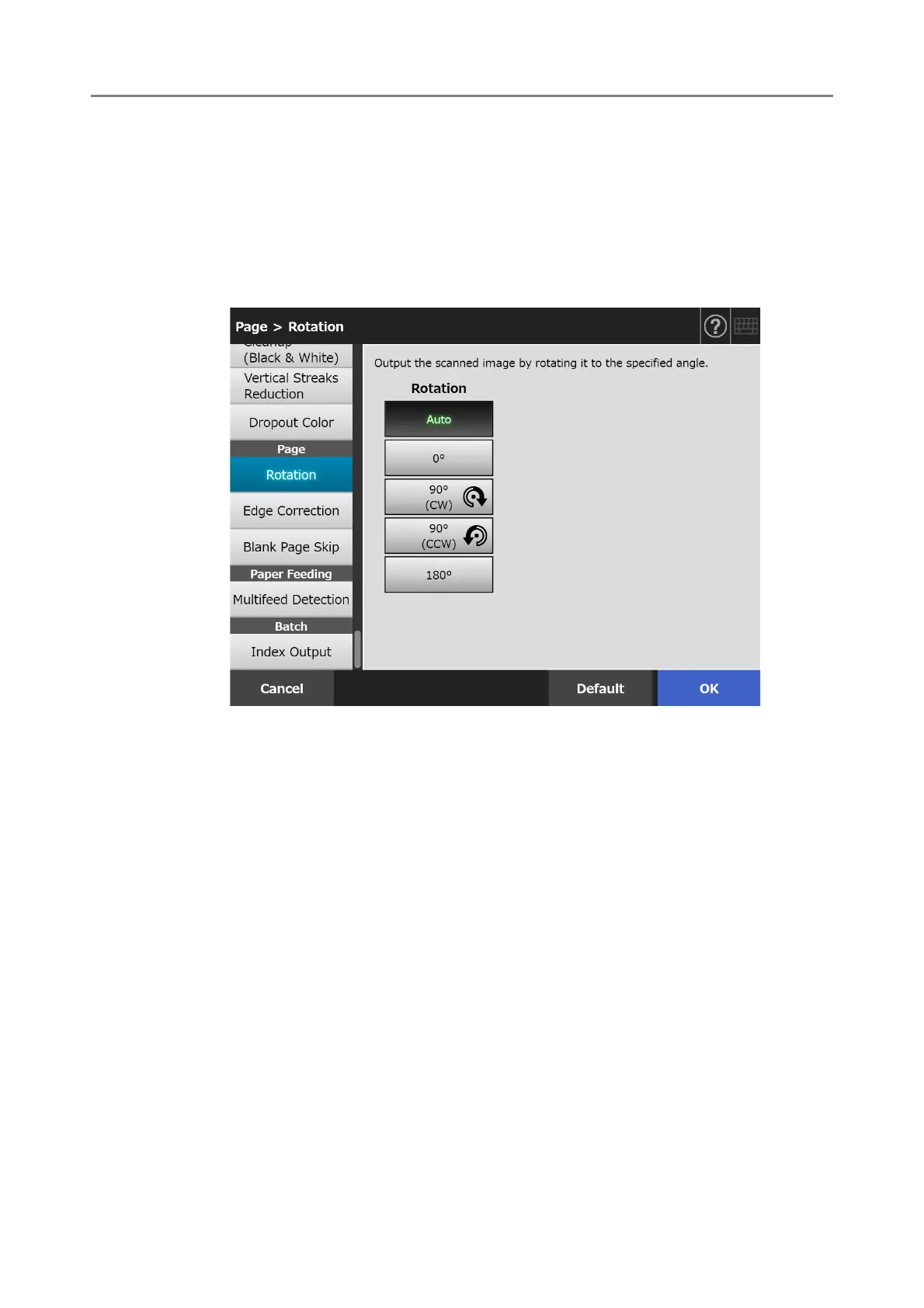

1. Select [Rotation] under [Page] on the scan settings window.

 The [Rotation] window appears.

2. Select the rotation angle and the flip type for the scanned data.
