4.1 Windows

4.1.1 Administrator Windows via the Touch Panel

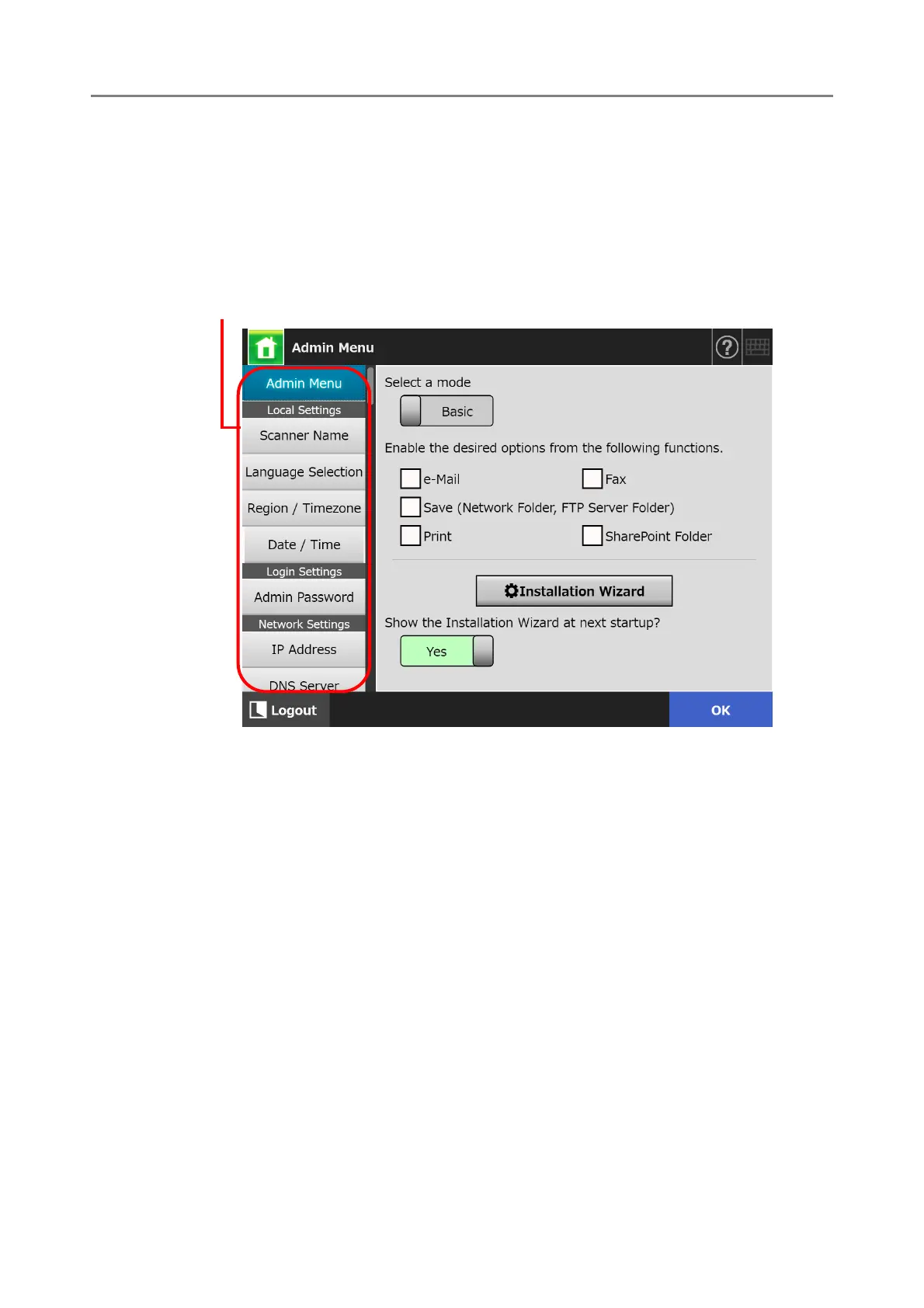

Selecting a menu displays the setting window for the menu in the right side of the window.

Scrolling the area in the left side of the window displays all the menus.
