5.1 Loading Documents

218

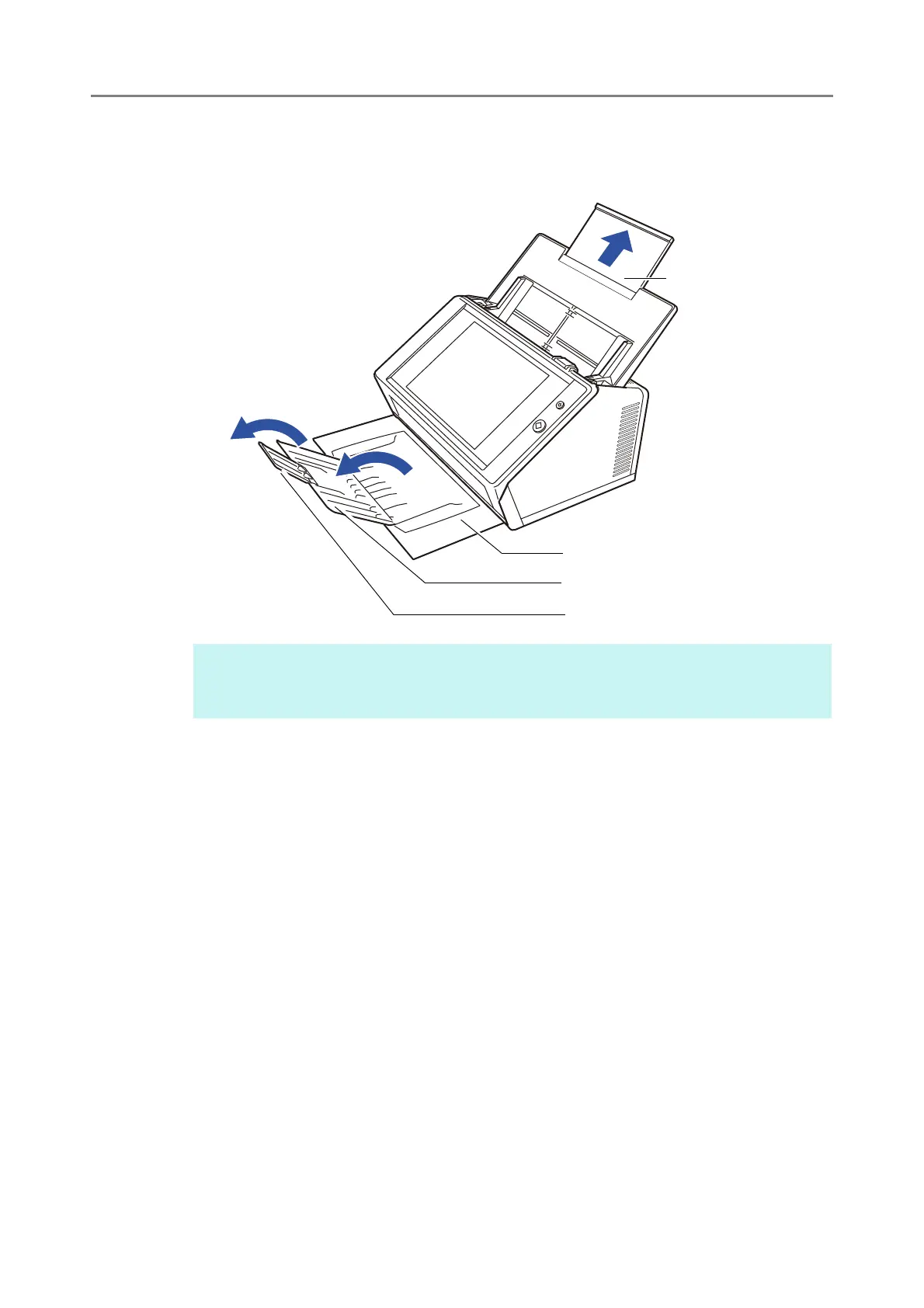

3. Pull up the extension to hold the documents, and pull out the stacker.

Pull out the stacker and lift up Stacker extension 1 and Stacker extension 2 towards

you.

HINT

The stacker holds the document sheets after they have been scanned. It can be pulled

out and adjusted to the size of the document being scanned.

Extension

Stacker

Stacker extension 1

Stacker extension 2
