5.4 Sending the Scanned Data by e-Mail

235

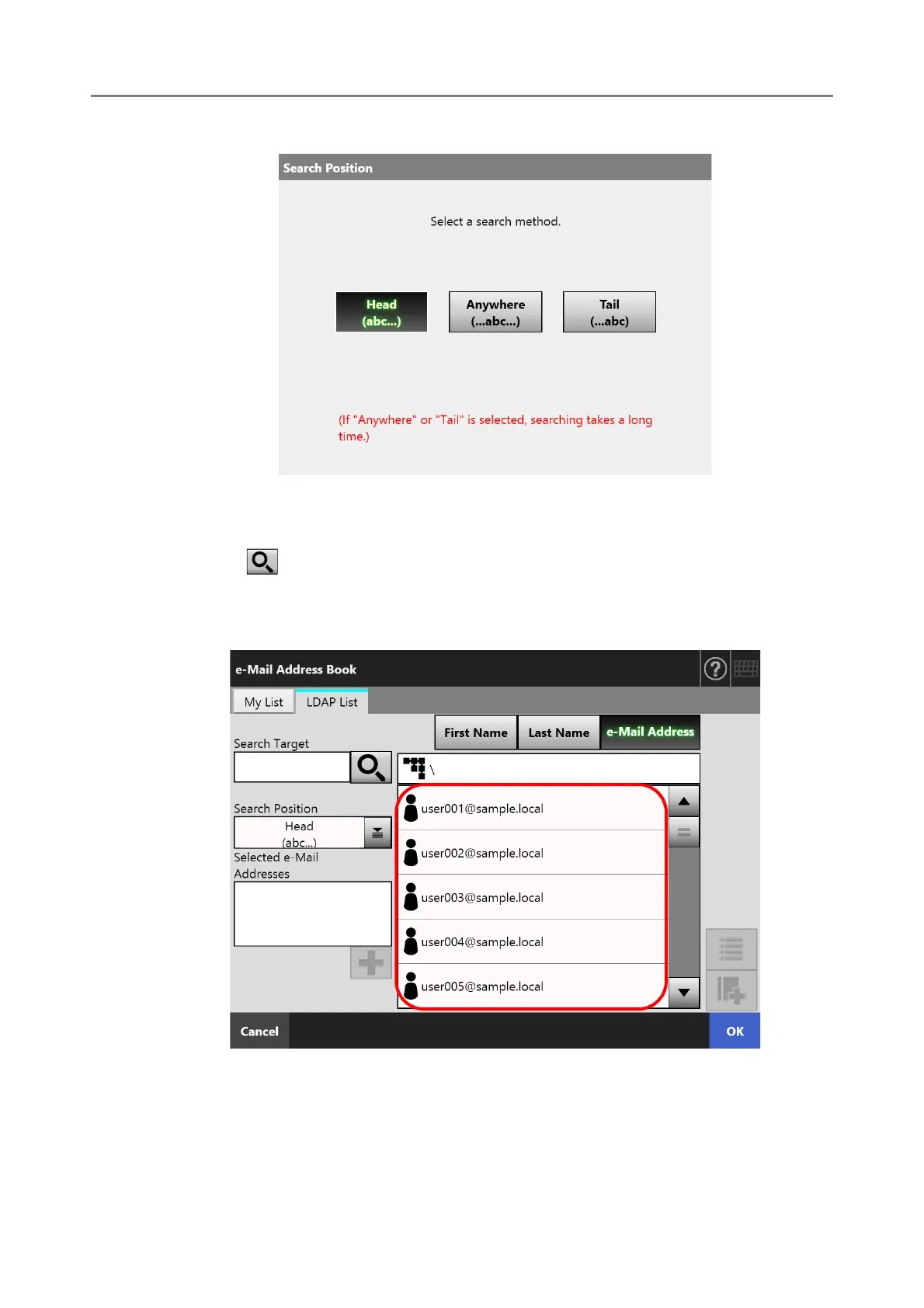

6. Select a search position setting.

 The window returns to the [e-Mail Address Book] LDAP List. The selected

position is displayed in [Search Position].

7. Press .

 The search results are displayed on the right side. Five results are displayed at a

time.
