4.2 Administrator Login

3. Press the [Connect] button.

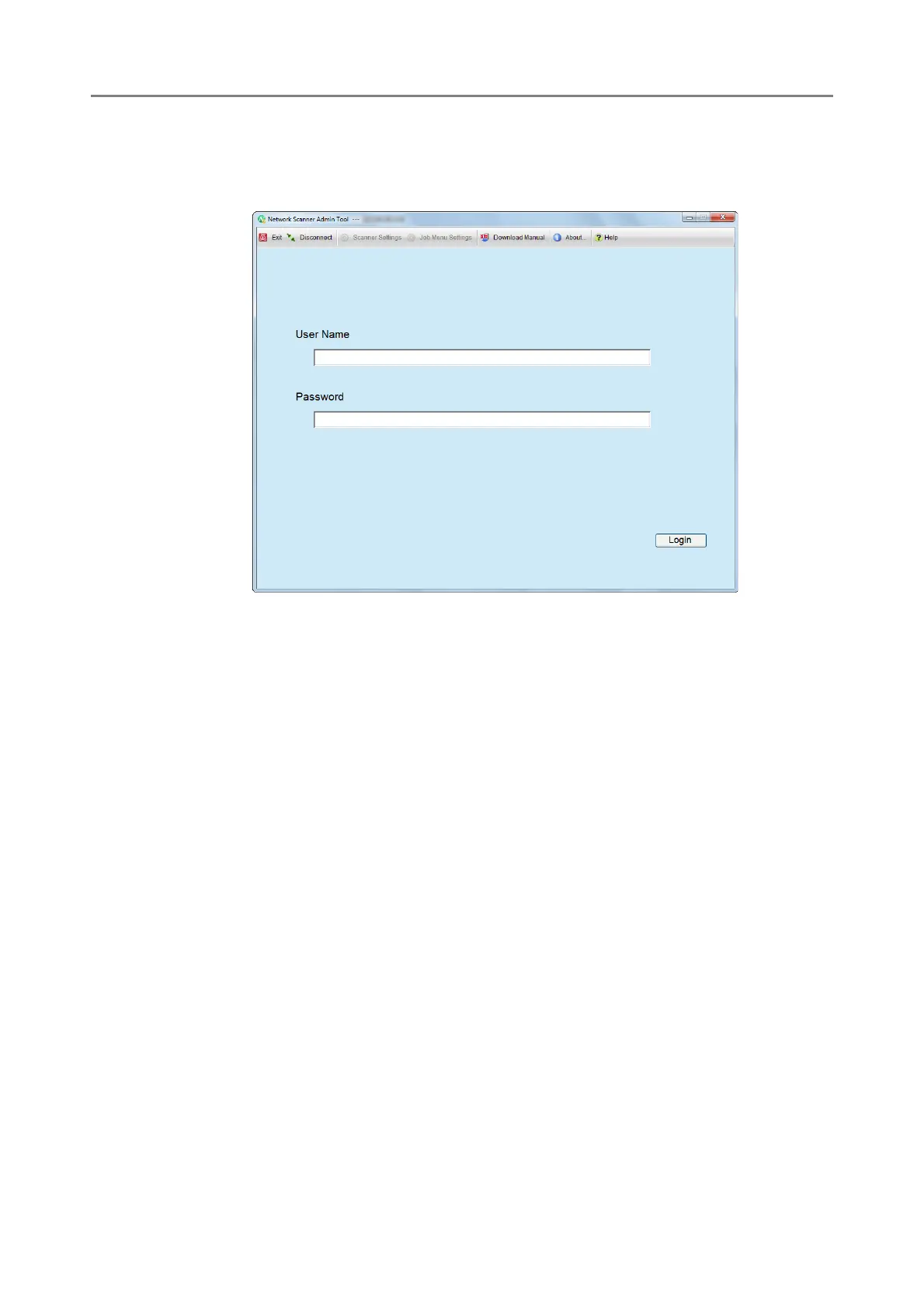

 The login window appears.

4. Enter a [User Name] and [Password].

5. Press the [Login] button.

 When authenticated, the administrator window is shown.
