Chapter 3 - Setup Instructions 3-35

3-8-3-2 Verifying Bluetooth device driver

1) Turn on the system.

2) Enter maintenance mode by using service dongle.

3) Go to Device Manager by pressing shortcut on the taskbar

4) Check that there is “Bluetooth Radios” category.

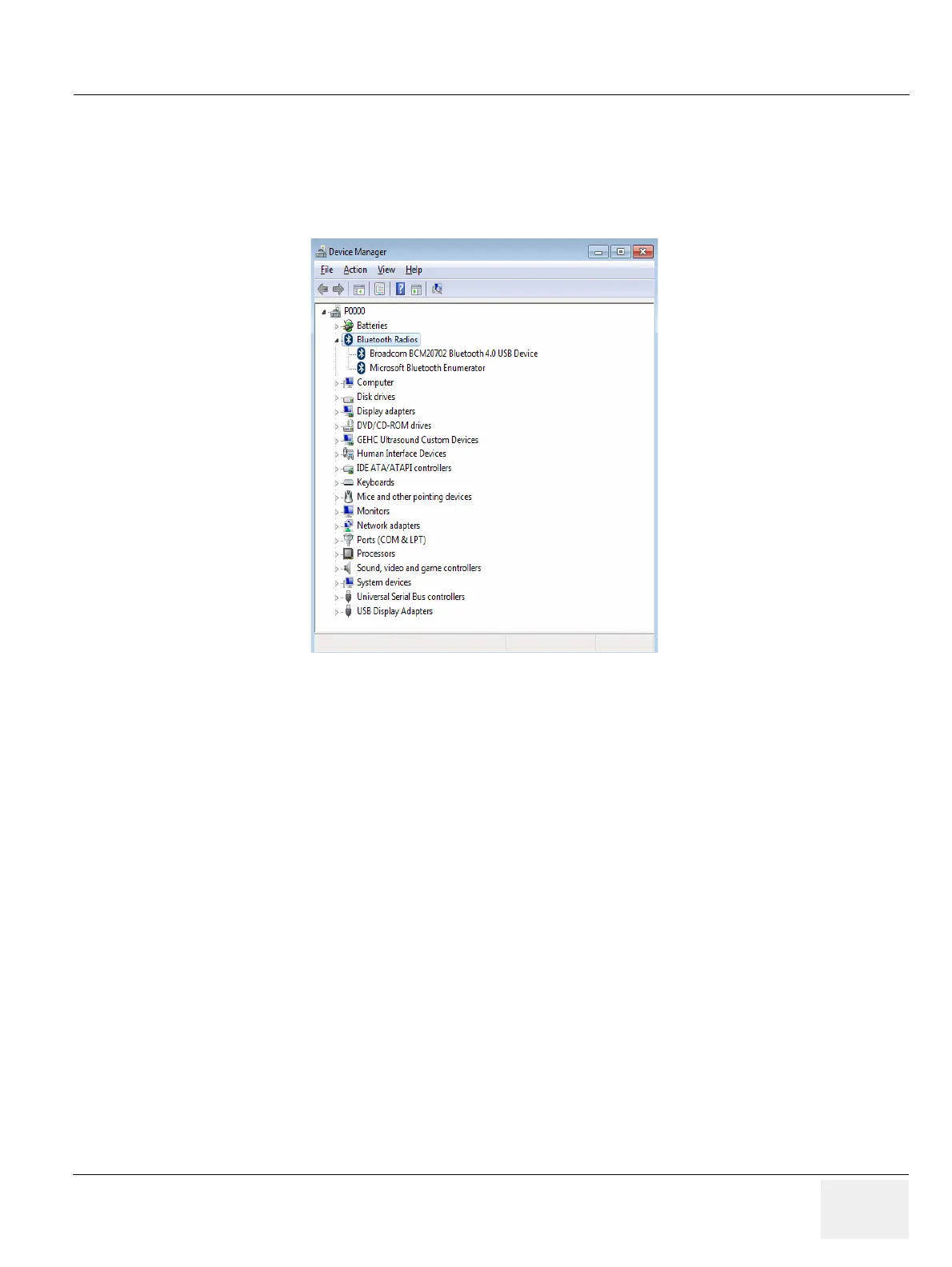

Figure 3-22 Bluetooth Radios

5) Check that there are no any “Unknown Device” messages. If there are unknown devices, check

again after reboot the system.
