GEDRAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
Chapter 3 - Setup Instructions 3-17
3-6-4 Connecting the Footswitch
The footswitch should be directly connected to any accessible USB-port on the LOGIQ P9/P7 (e.g., on
rear of the system).
NOTE: Connection of the Footswitch is always the same
(no differences between PC-Motherboard version of the system).

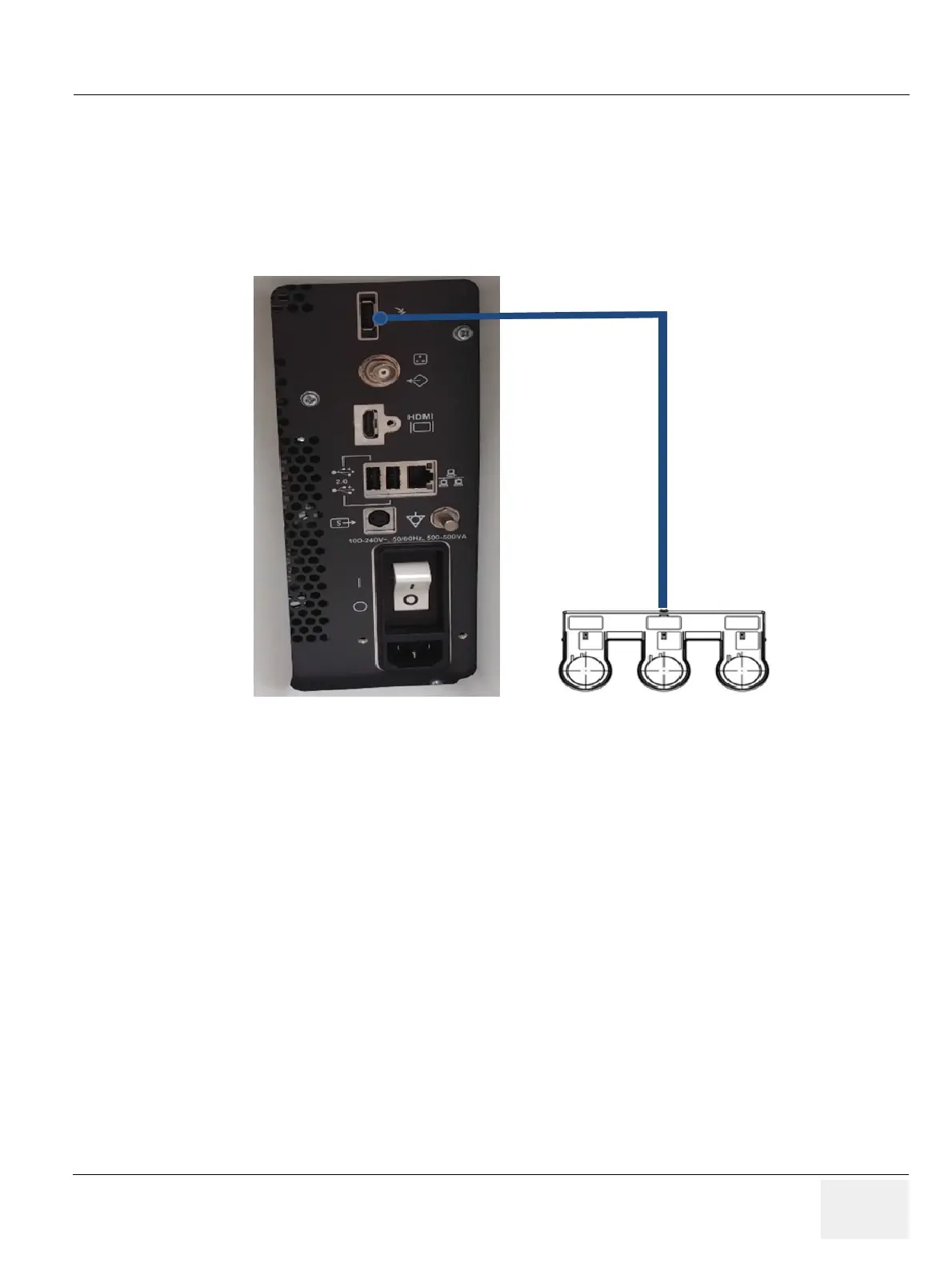

Figure 3-8 Connection Scheme - Footswitch
