GEDRAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
Chapter 3 - Setup Instructions 3-63
3-13-6 Service
For each Device that you added to the system, you need to set up the service(s) that device supports
(you must be an administrator to update these screens).

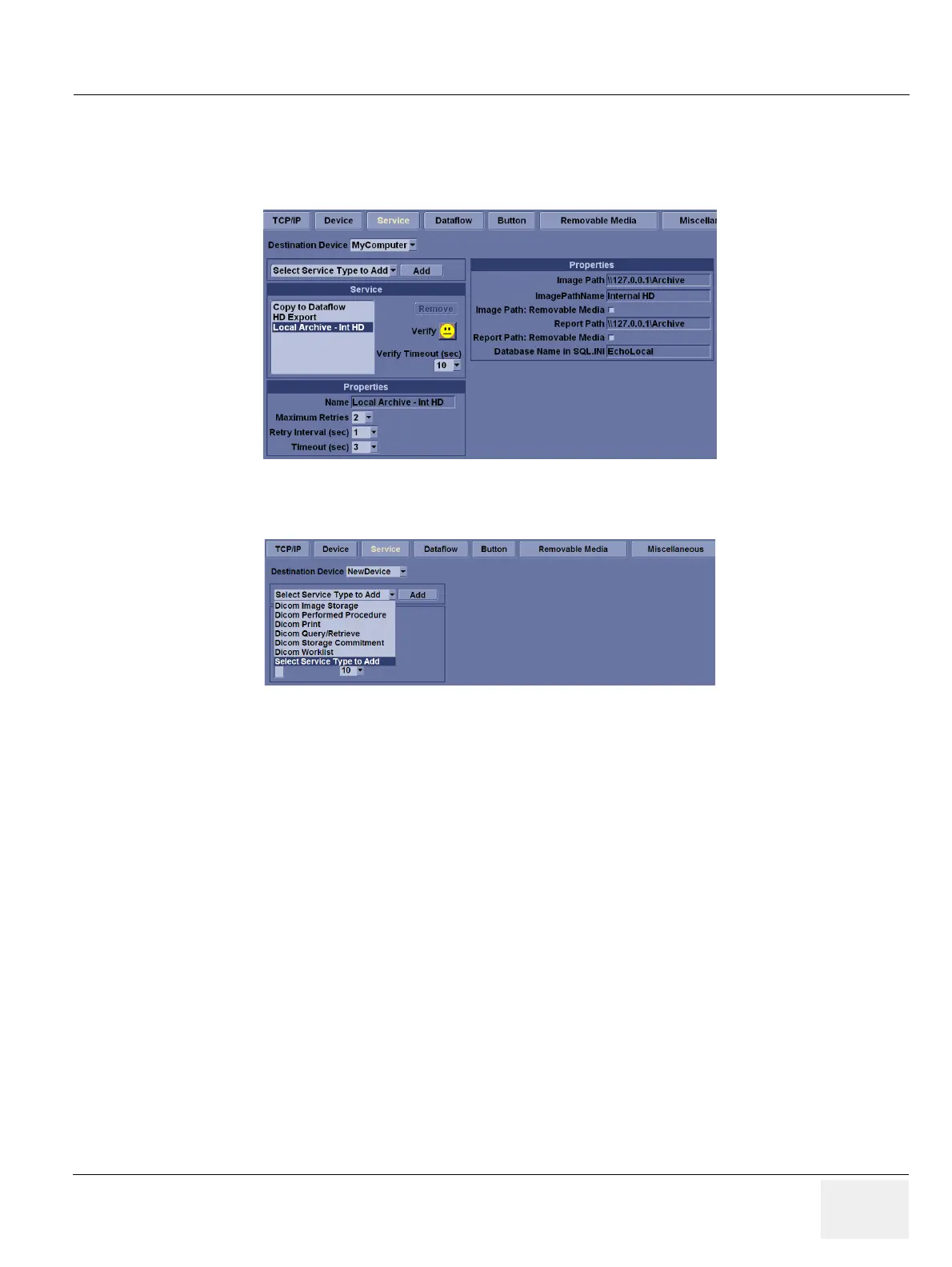

Figure 3-38 Connectivity Services Preset Menu, My Computer
Figure 3-39 Connectivity Services Preset Menu, New Device
The Services screen has the following sections of information:
1) Destination Device - lists information about destination devices. You can select from a list of
currently existing devices.
2) Service Type to Add - lists information about services for the destination device. You can add
services, select from a list of currently existing services, and remove services.
3) Service Parameters - lists parameters for the service currently selected in the Services section. The
name and parameters in this section change, depending on what service is currently selected. In
the above figure, this section shows DICOM Print parameters.
3-13-6-1 Adding a service to a destination device
1) Select the service from the pull-down menu. Press Add.
2) Specify the properties for this service. Press Save.
3) Verify the service.
3-13-6-2 Removing a service
1) Select the service. Press Remove.
2) Press Save.
