5-26 Section 5-10 - Common Service Desktop (CSD) (R1, R2, R2.5 only)
Section 5-10
Common Service Desktop (CSD) (R1, R2, R2.5 only)
5-10-1 Internationalization
The user interface provided by the service platform is designed for GE personnel and as such is in
English only. There is no multi-lingual capability built into the Service Interface.
There are different possibilities to access the Common Service Desktop and its available features:
1) Local Access via System Setup - Administration -
SERVICE page
As soon as the Common Service Desktop (CSD) is started, the Service [Home] Page appears.
The navigation bar at the top of the screen allows to select from following tools:
• Error Logs on page 5-30
• Diagnostics on page 5-30
• Image Quality on page 5-31
• Configuration on page 5-32
• Configuration on page 5-32
• Utilities on page 5-33
• Replacement on page 5-35
• PM on page 5-35

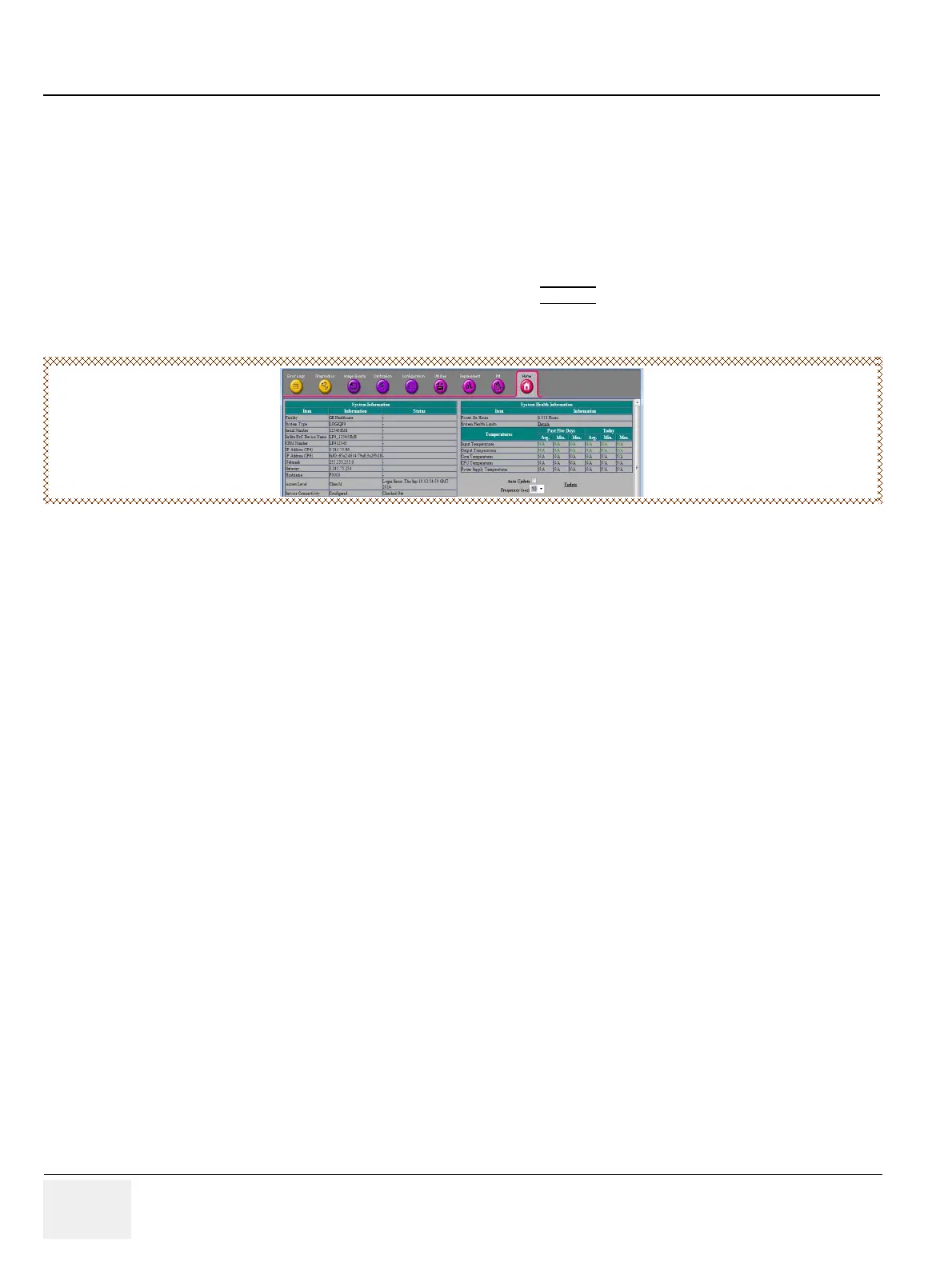

Figure 5-17 Common Service Desktop - Home
