GE LOGIQ P9 Service Manual

GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
3-46 Section 3-9 - System Configuration
3-9-2 External I/O Connectors

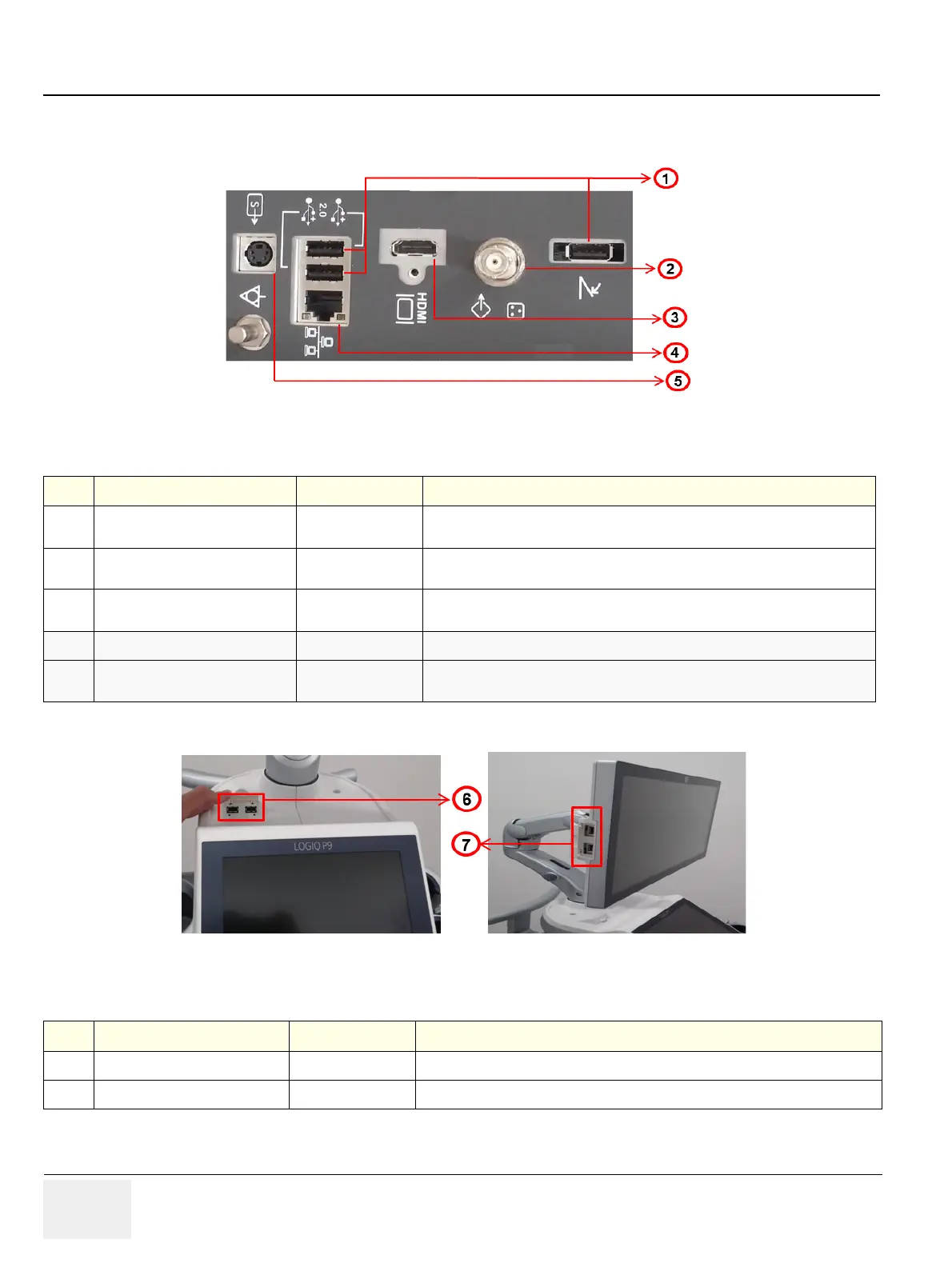

Figure 3-33 External I/O Connectors - on Rear of System
Table 3-18 External I/O Connector - Description
Item Connector Name Table Number Description
1
USB
Table 5-2
Table 5-4
USB port. Refer to Section 5-2-4 for details.
2
Composite
Table 5-6
Composite(BNC) Connector for external Monitor. TV-out signal.
Resolution :PAL(720x576), NTSC(720x480)
3
HDMI
Table 5-5
Connector for external Monitor. DVI-D Signal. No audio output.
Resolution: FHD(1920x1080)
4
NETWORK
Table 5-4 DICOM input/output, twisted pair RJ-45 10/100/1000 megabit/s
5
S-Video
Table 5-6
S-Video Connector for external Monitor. TV-out signal.
Resolution: PAL(720x576), NTSC(720x480)
Figure 3-34 External I/O Connector
Table 3-19 External I/O Connector - Description
Item Connector Name Table Number Description
6
USB
Table 5-2 Connected to IO Box via USB HUB. Refer to Section 5-2-4 for details.
7
USB
Table 5-2 Connected to MCB via USB HUB. Refer to Section 5-2-4 for details.

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
