GE LOGIQ P9 Service Manual

GEDRAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
Chapter 4 - Functional Checks 4-11
4-3-2-4 Swivel/Brake Lock Caster
NOTE: This procedure applies to RIGHT REAR Caster only.

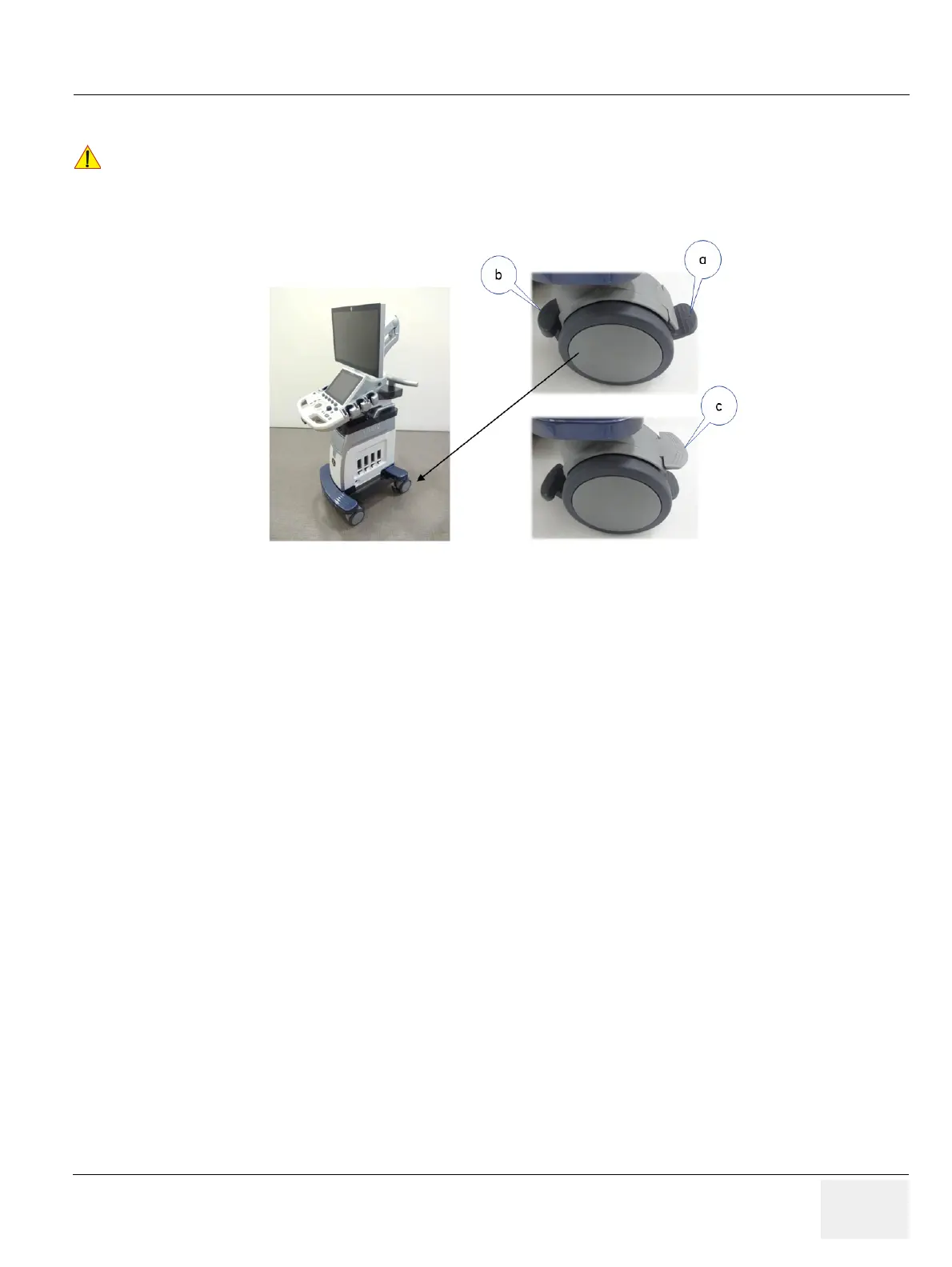

Figure 4-9 Right Rear Caster
1) Press ‘a’. (see: Figure 4-8)
2) Rotate wheel until it locks (only one lock position in 360deg turn).
3) Verify Swivel Lock engages.
4) Press ‘b’ downward. (see: Figure 4-8)
5) Verify Brake is applied to the wheel. (i.e. Wheel does not rotate)
6) Press ‘b’ upward.
7) Verify Brake is released.
8) Press ‘c’. (see: Figure 4-8)
9) Verify Swivel is released.
CAUTION
!! CAUTION:
System weighs approximately 60kg. Pay attention for system stability when working with the
casters

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
