8-146 Section 8-29 - Replacement of Peripheral Cable Assy
Section 8-29
Replacement of Peripheral Cable Assy
8-29-1 DVD Cables
8-29-1-1 Manpower
1 person, 5 minutes.
8-29-1-2 Tools
Nipper, 2 Cable ties (GEPN: 2160955).
8-29-1-3 Pre work
1) Remove Rear Cover. (refer to section 8-9)
2) Remove Top Cover. (refer to section 8-7)
3) Remove Cable Cover Bracket. (refer to section 8-17)
8-29-1-4 Removal Procedure
1) Remove the cable ties.

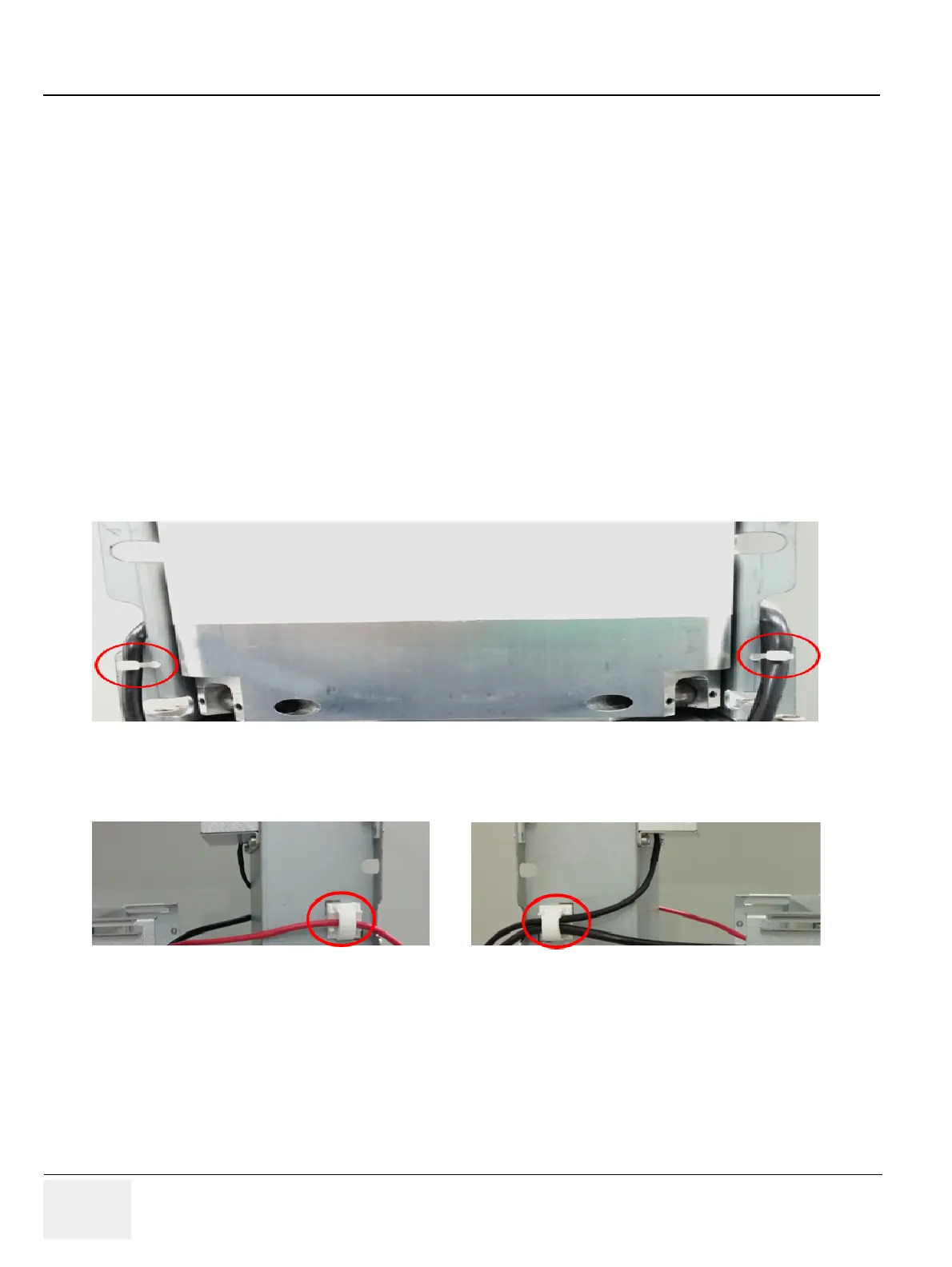

Figure 8-169 Cable tie points
2) Unlock cable clamp. Refer to following figure.
Figure 8-170 Cable clamps
