GE LOGIQ P9

GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
5-10 Section 5-2 - General Information

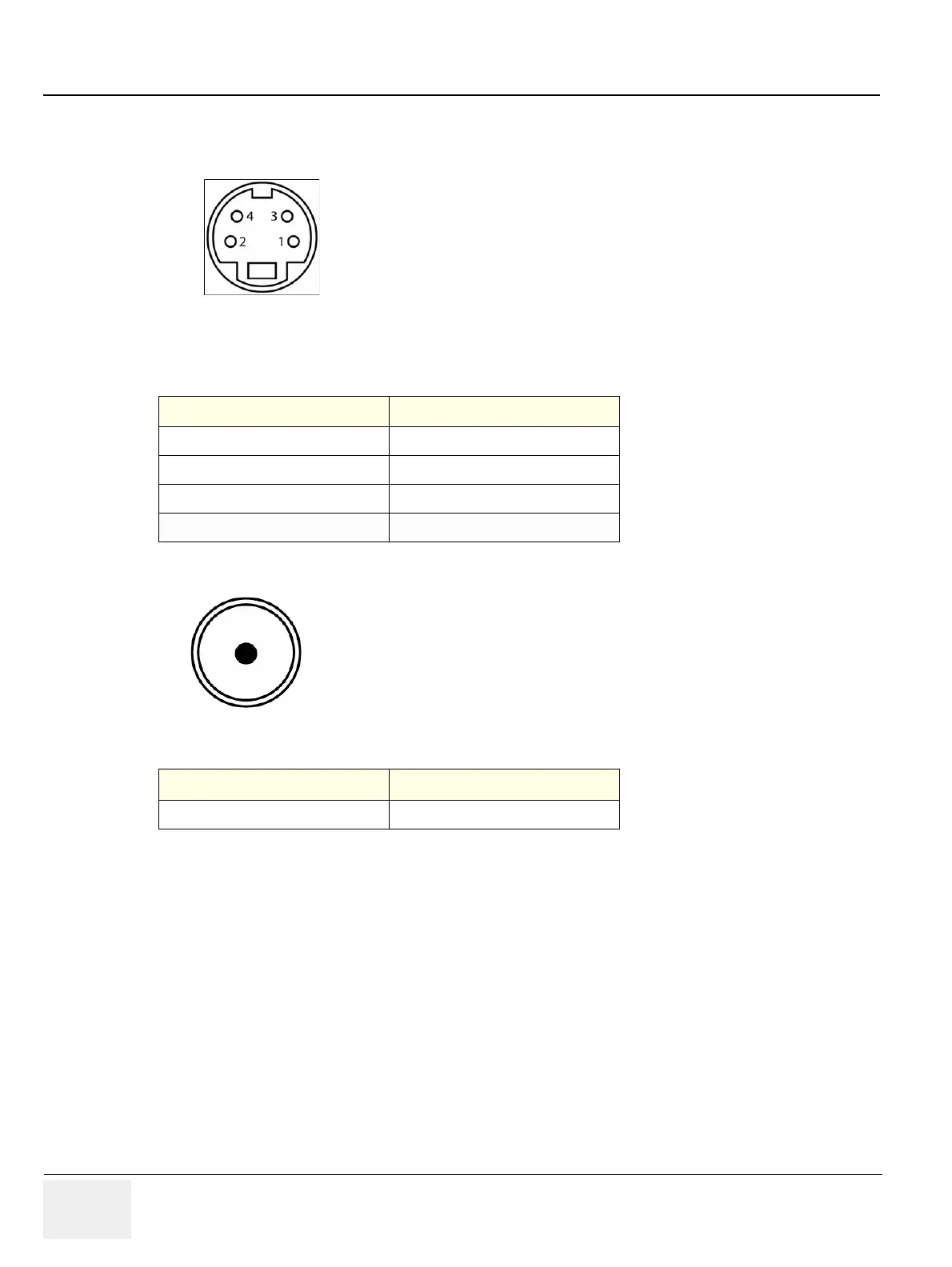

5-2-4-4 S-Video / Composite
There are S-video / Composite port for external display
<S-Video 4Pin Mini-DIN Female>
Table 5-7 S-Video 4Pin Mini-DIN Female
<Composite Connector>
<Composite Output Port Signal Assignment>
Pin number Signal name
1 GND / Ground (Y)
2 GND / Ground (C)
3 Y / Intensity (Luminance)-
4 C / Color (Chrominance)
Pin number Signal name
1 1 plus screen
