8-170 Section 8-42 - Replacement of ECG

Section 8-42

Replacement of ECG

8-42-1 Manpower

1 Person, 5 minutes.

8-42-2 Tools

Standard Phillips screwdriver.

8-42-3 Removal Procedure

1) Remove OPIO covers (refer to section 8-14)

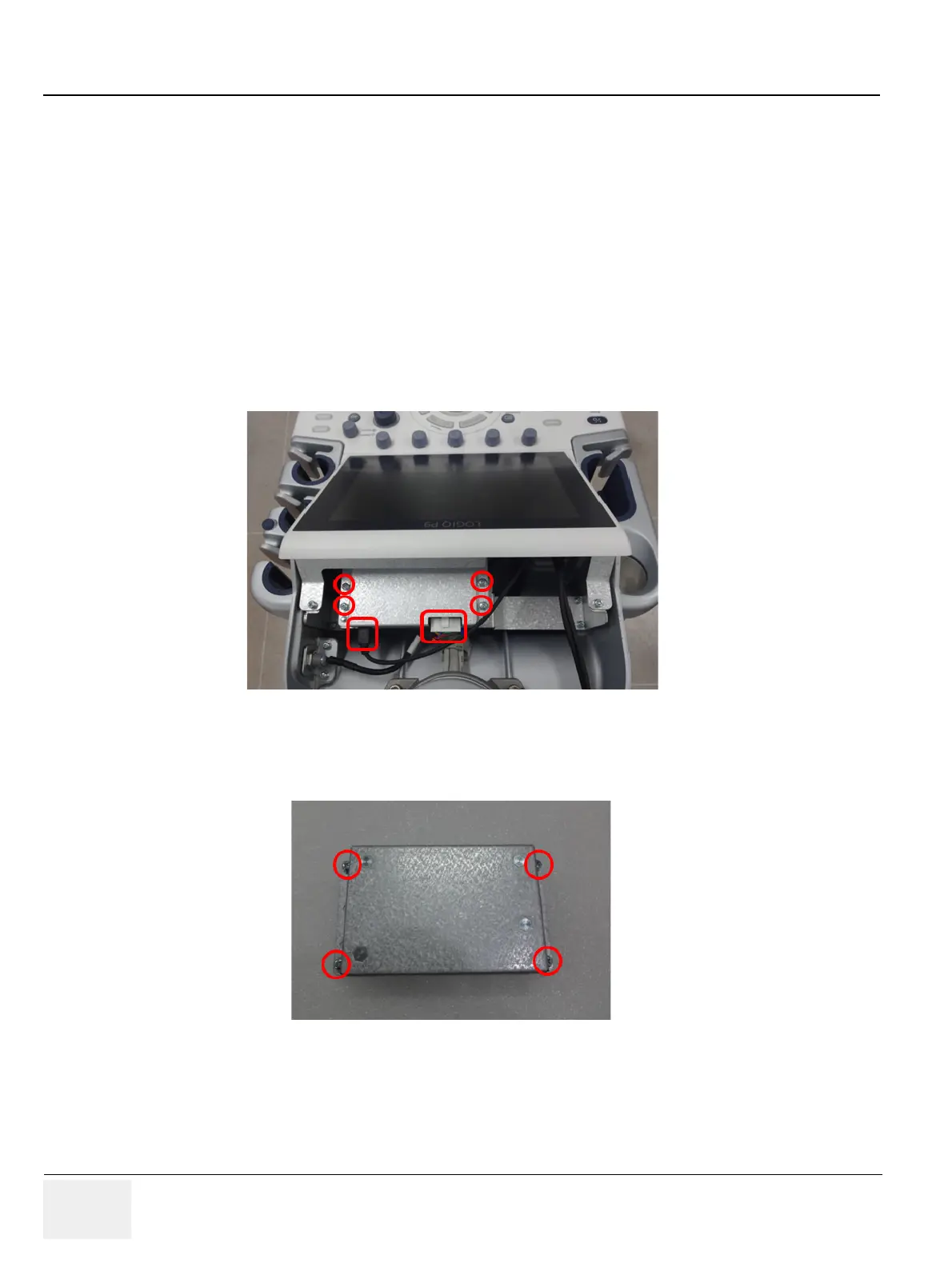

2) Remove cables on ECG Assy (square) and unscrew 4 screws (circle). Refer to following figure.

Figure 8-200 Cables position and points.

3) Remove ECG Assy.

4) Unscrew 4 screws and remove ECG BRKT.

Figure 8-201 ECG BRKT screw points.
