GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 7 - Diagnostics/Troubleshooting 7-21

7-7-1 System does not boot up

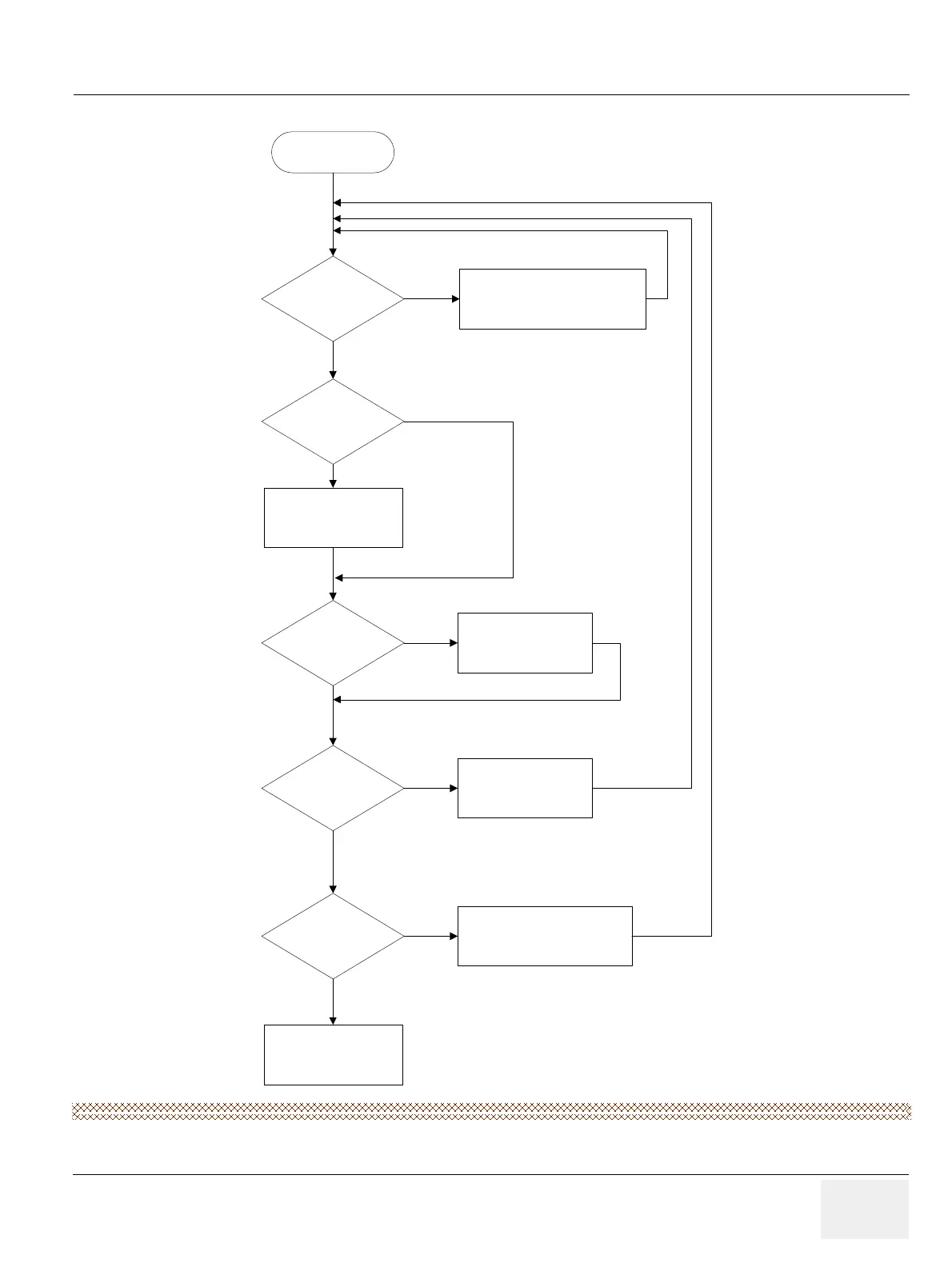

Figure 7-16 System does not Power On / Boot Up

System doesn’t boot

Is Standby Switch

illuminated ?

Verify that

- Power Cord is connected to Mains

- Power Switch is turned on

(on the backside of the system)

Is Standby Switch



%OXH ?

Press Standby Switch till it

changes to green

System starts booting

Press Standby Switch

for approximately 5 sec.

until system is down.

Check cables between

Console and Monitor

Is there any picture on

the monitor ?

Is there any picture on

the touch screen ?

Shut off the power switch

Wait for 10 sec.

Shut on the power switch again

Is there any picture on

the monitor ?

Other error. Please

contact the service

engineer
