GEDRAFT LOGIQ P9/P7

IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-119

Section 8-19

Replacement of Bottom fan

8-19-1 Manpower

1 Person, 10 minutes.

8-19-2 Tools

Hex Wrench.

8-19-3 Removal Procedure

1) Remove the Front Cover from system. (refer to section 8-6)

2) Remove the nest Box from system. (refer to section section 8-17-5)

3) Remove 4 Hex screws, front bottom and rear side.

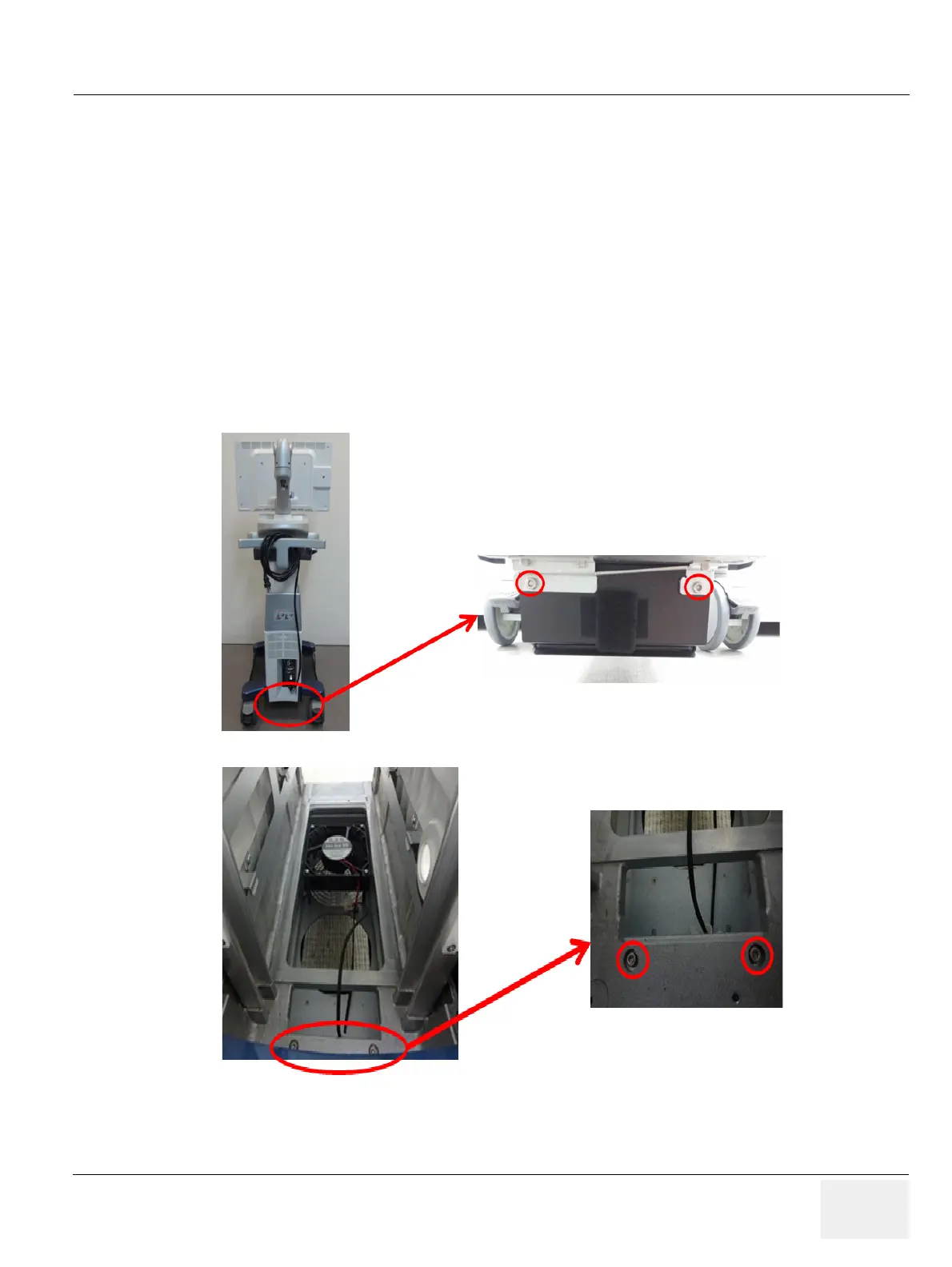

Figure 8-139 Fan screw points of bottom fan assy
