Chapter 8 - Replacement Procedures 8-131
NOTE: There are various types of VPD EEPROM integrated in the system.

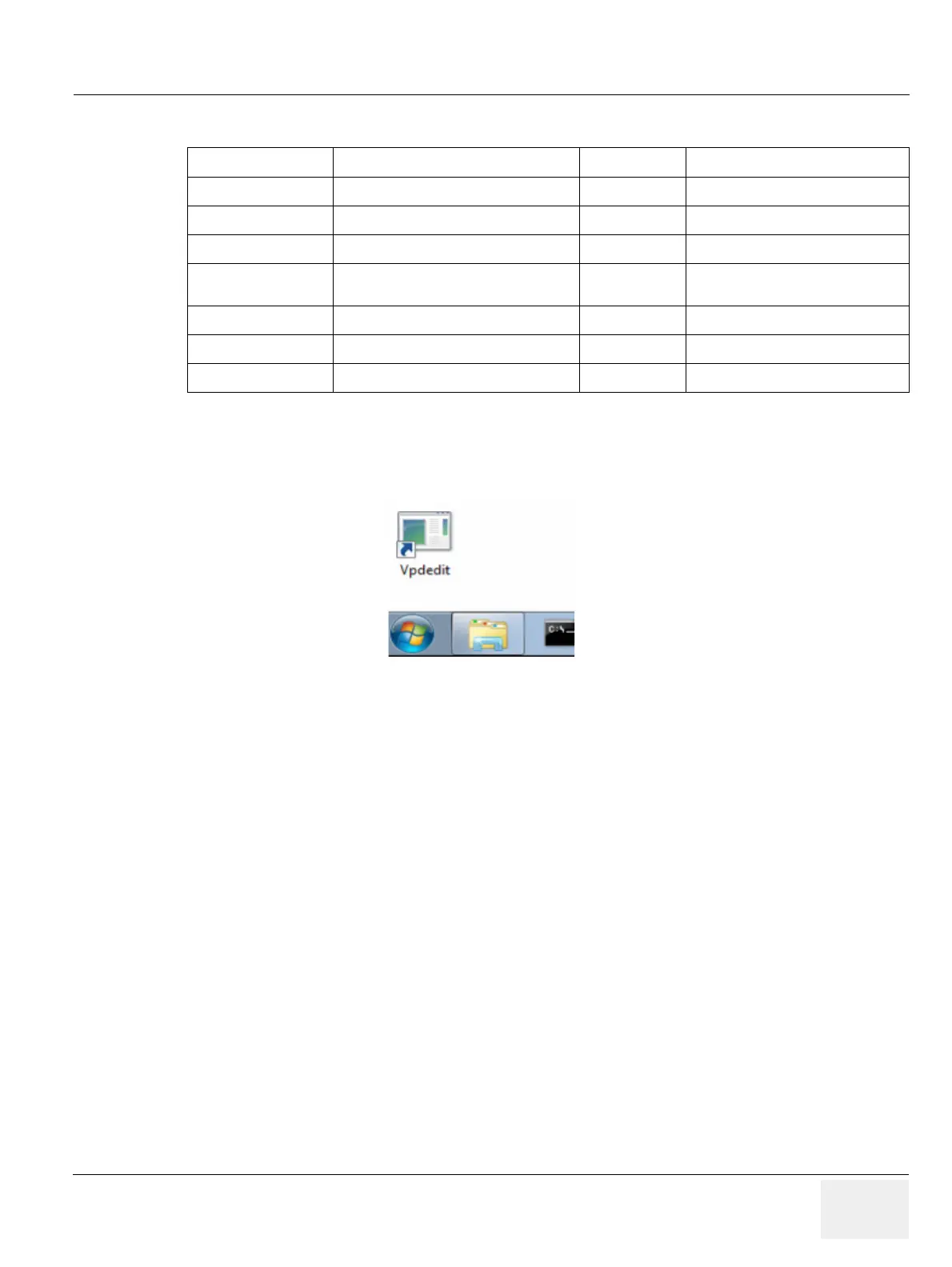

8-23-6-1 Accessing EEPROM
1) Exit to Desktop (Refer to section 5-10 for details)
2) Start VPD Editor by clicking icon on the desktop. (“Vpdedit”)
3) Select COMEXP from device grid.
Board Name Main VPD Contents Replaceable Physical VPD location
MCB FuncRev
No
Integrated with MCB
MPI FuncRev
No
Integrated with MPI
MDC FuncRev
No
Integrated with MDC
COMEXP FuncRev, , SSN (System Serial Number
Yes
On MCB board as replaceable
EEPROM.
MIO FuncRev
No
Integrated with MIO
DC4D FuncRev
No
Integrated with DC4D
OPIOR FuncRev
No
Integrated with OPIO

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
