GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
8-192 Section 8-49 - Replacement of BBC
Section 8-49
Replacement of BBC
8-49-1 Manpower
1 person, 30 minutes
8-49-2 Tools
Standard Phillips Screwdriver, Hex-Wrench
8-49-3 Removal Procedure
1) Unscrew 2 screws to remove COVER BRKT.
2) Disassemble BATTERY PACK COVER BRKT.

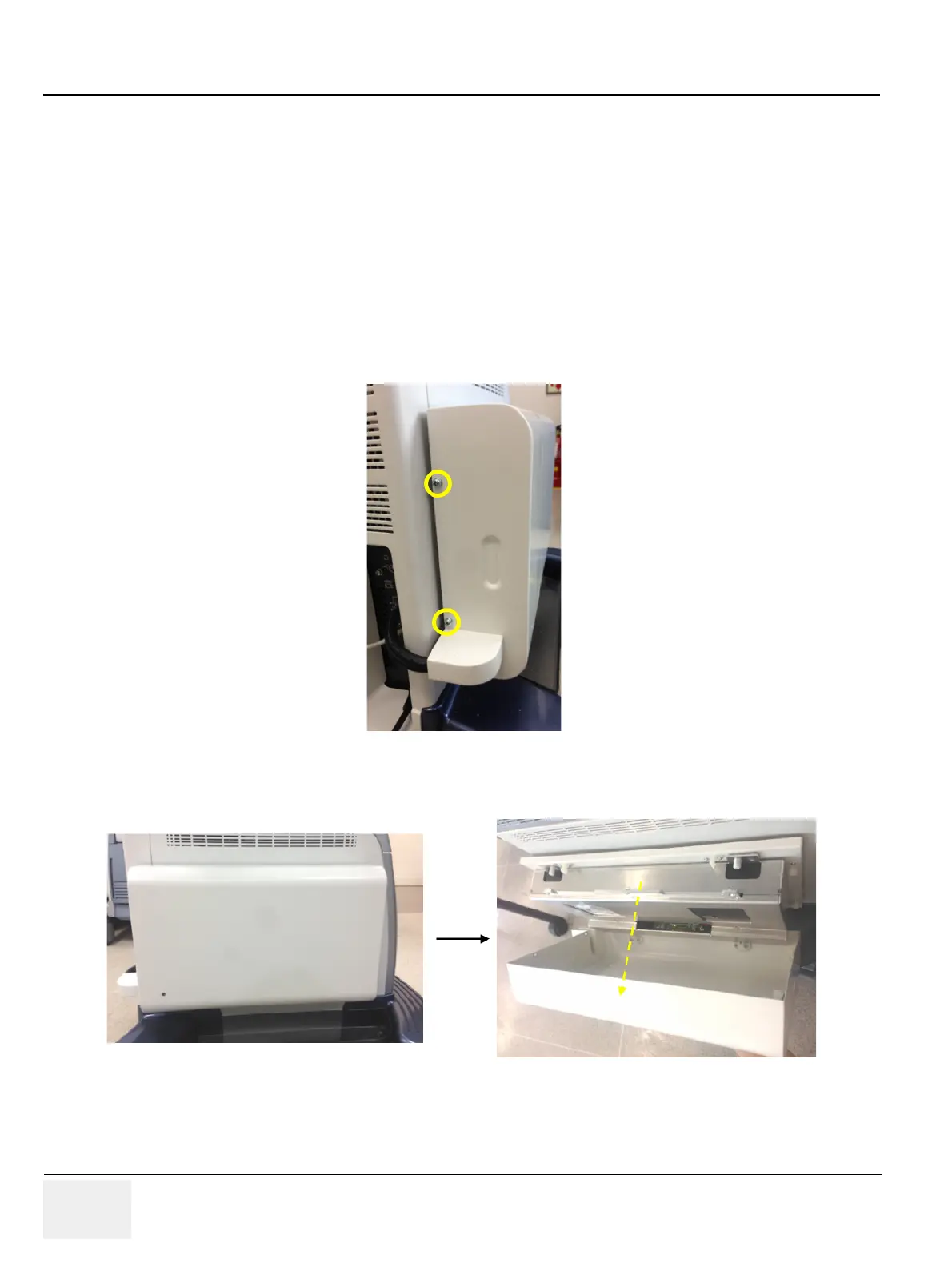

Figure 8-239 Unscrewing 2 screws to remove COVER BRKT
Figure 8-240 Disassembling BATTERY PACK COVER BRKT
