8-124 Section 8-22 - Replacement of Caster

Section 8-22

Replacement of Caster

8-22-1 Manpower

2 persons, 15 minutes.

8-22-2 Tools

24mm Socket or adjustable Wrench, Standard Phillips Screwdriver

NOTE: “Short” type driver preferable for Foot Rest Cover removal/installation.

8-22-3 Removal Procedure

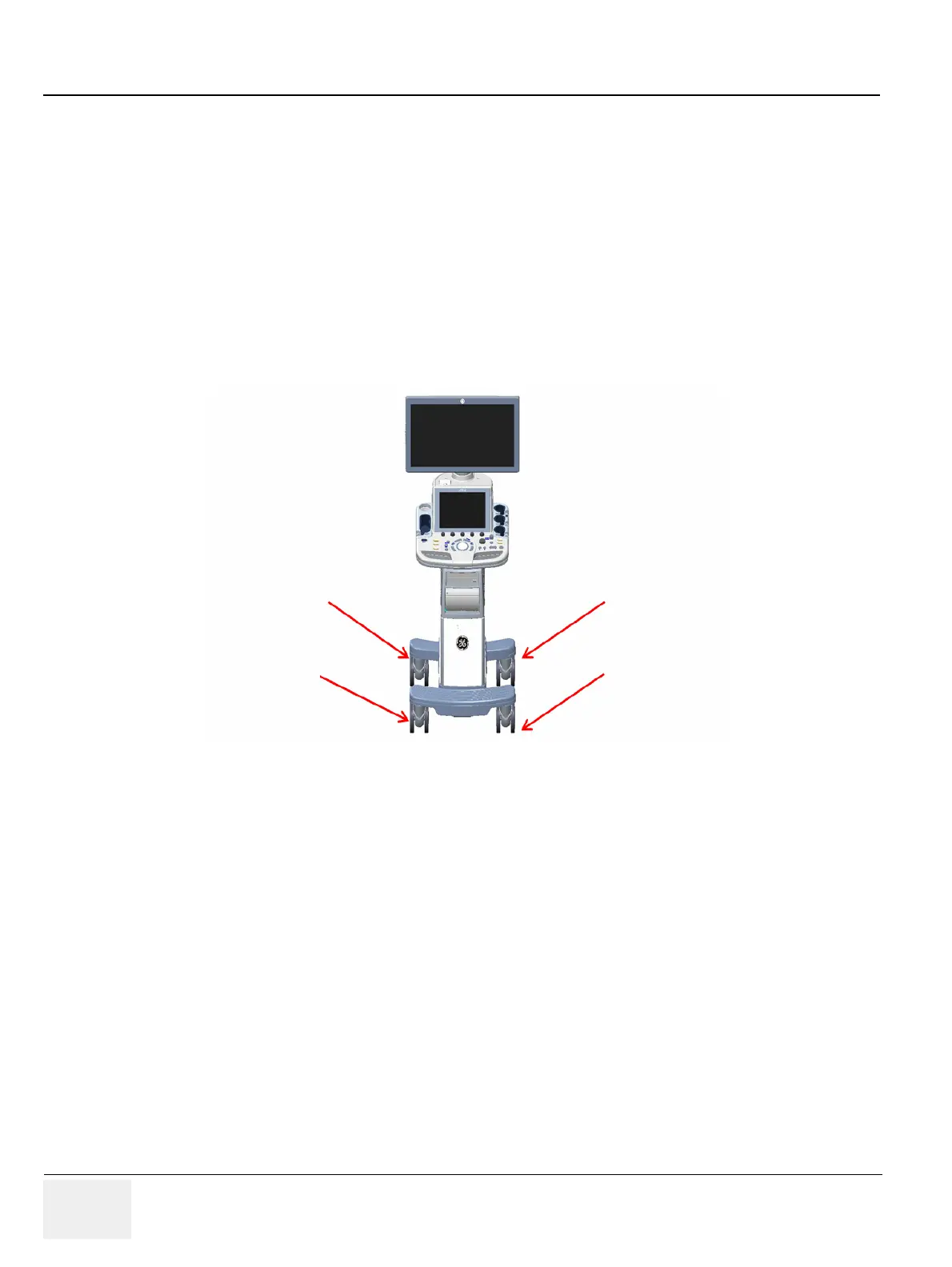

Figure 8-147 Caster

NOTE: Press the caster wheel locks and ensure that they prevent the system from moving.

1) Remove Front Cover (refer to section 8-6)

2) Remove Top Cover (refer to section 8-7)

3) Remove Side Cover (refer to section 8-8)

Total Lock

Swivel Lock
