GE LOGIQ P9 Service Manual

GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
8-78 Section 8-12 - Replacement of Monitor Covers
Section 8-12
Replacement of Monitor Covers
8-12-1 Manpower
2 persons, 10 minutes.
8-12-2 Tools
Standard Phillips Screwdriver, Hex Wrench
8-12-3 Pre-Work
1) LCD Monitor and Monitor Cable Cover removed (refer to section 8-11)
8-12-4 Removal Procedure

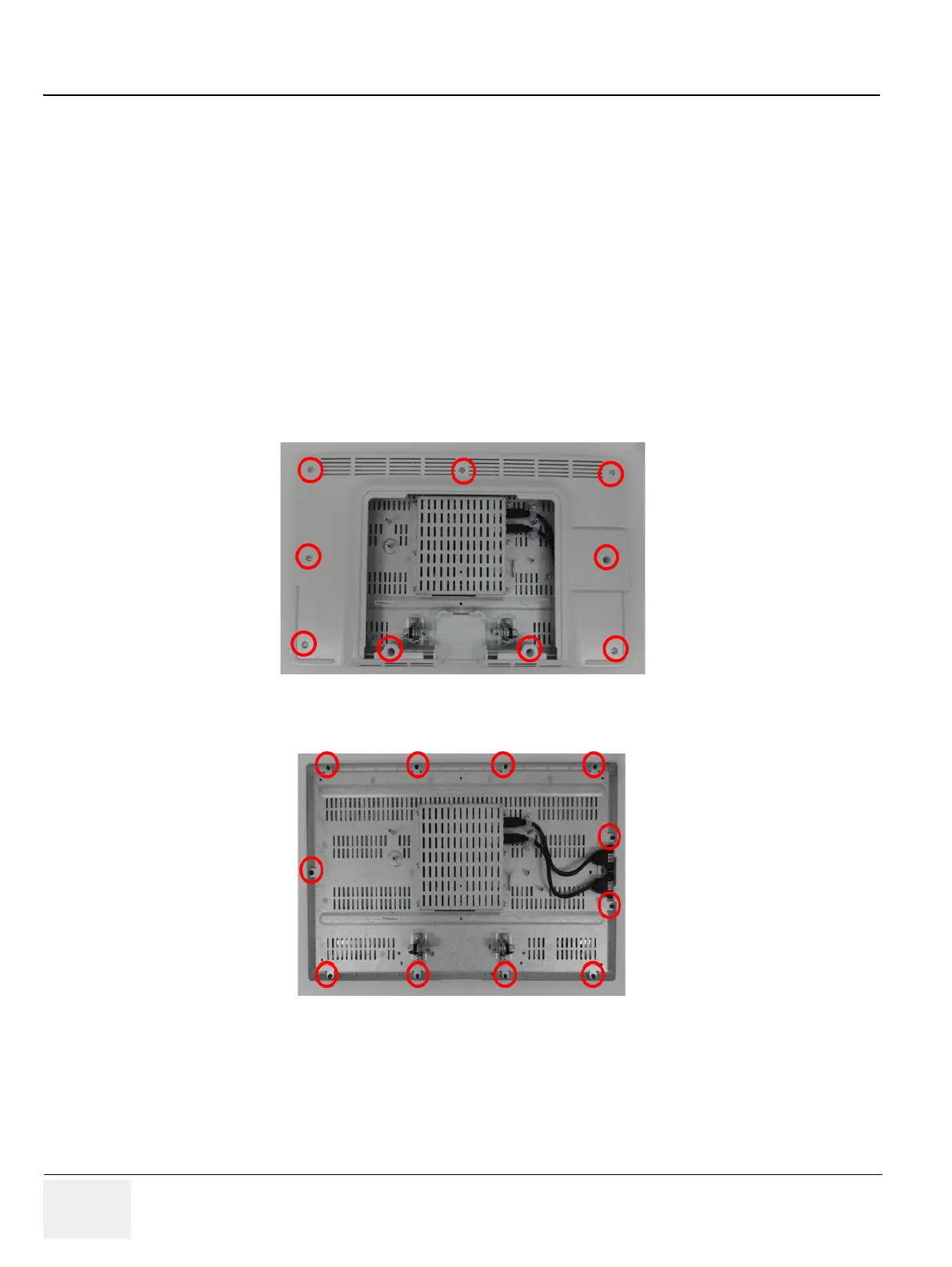

1) Remove 9 screws and remove the Monitor Rear Cover.
Figure 8-68 Monitor Rear Cover screw points
2) Remove 11 screws and remove the Monitor Front Cover and Glass Filter Assy.
Figure 8-69 Monitor Front Cover screw points

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
