GE LOGIQ P9 Service Manual

GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
9-6 Section 9-5 - Plastics Covers (Front/Sides/Rear)
Section 9-5
Plastics Covers (Front/Sides/Rear)
9-5-1 Plastics Covers (Front/Sides/Rear) (R1 ~ R2.5)

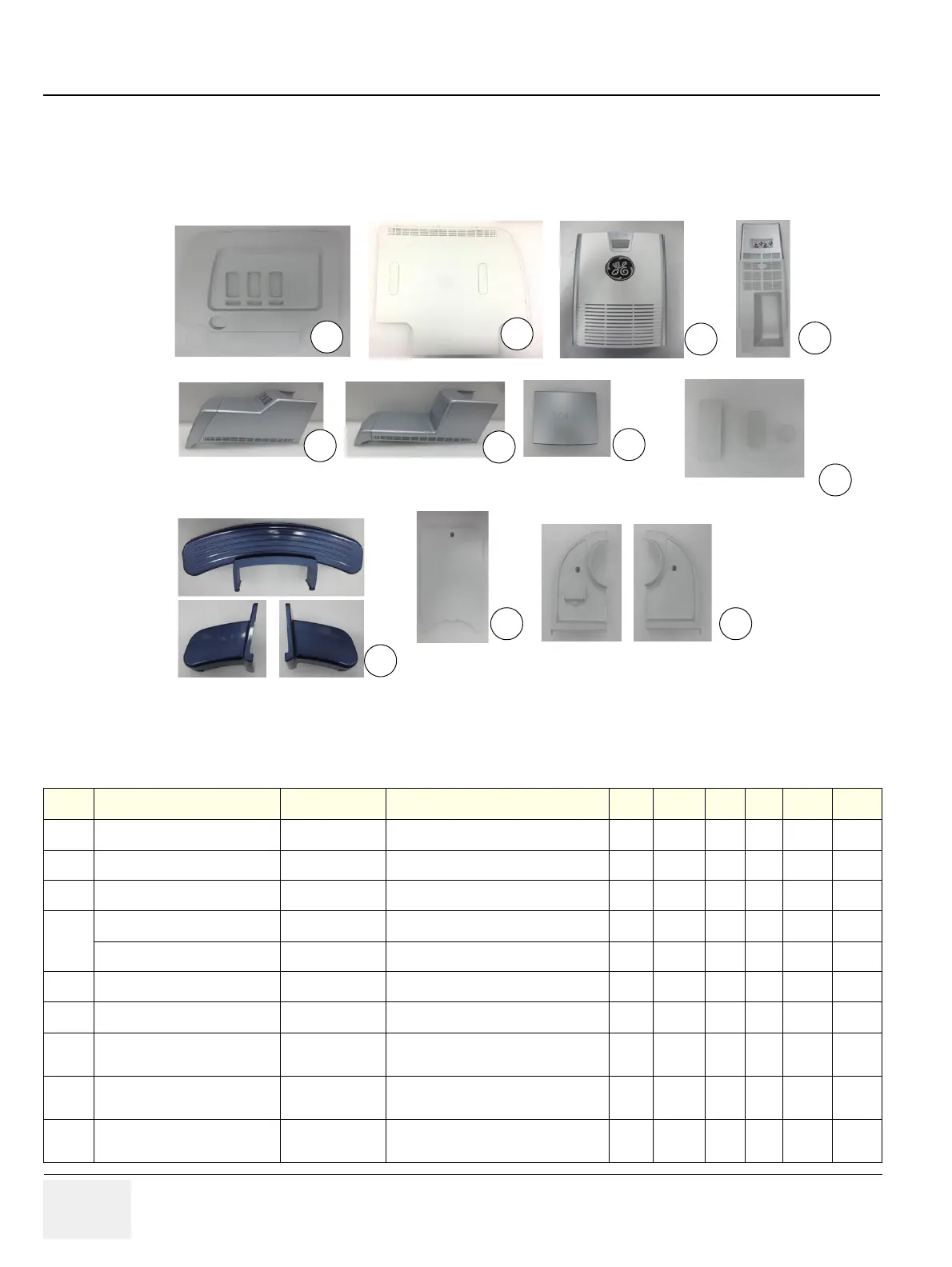

Figure 9-3 Plastics Covers (Front/Side/Rear)
Table 9-5 Plastic Covers
Item Part Name Part Number Description Qty FRU R1 R2 R2.5 R3
101
Side Cover R Assy
5499849 Assy Plastic 1 1 Y Y Y N
102
Side Cover L Assy R2
5499847-2 Assy Plastic 1 1 Y Y Y N
103
Front Cover Assy
5499845 Assy Plastic 1 1 Y Y Y N
104
Rear Cover Assy R2.5
S5499822 Assy Plastic(with e-IFU label) 1 1 N N Y N
Rear Cover Assy
5499846 Assy Plastic(without e-IFU label) 1 1 Y Y Y N
105
Top Cover - High Cabinet
5499645 High Cabinet Cover 1 1 Y Y Y N
106
Top Cover - Low Cabinet
5499661 Low Cabinet Cover 1 1 Y Y Y N
107
High Cabinet Dummy Cover
5499660
Plastics, BW PRT Bezel, Dummy for
High Cabinets
1 1 Y Y Y N
108
Dummy Cover Set
5582883
RS Dummy Cover, RS Lever
Dummy Cover, CWD Dummy Cover
1 1 Y Y Y N
109
Foot Cover Set
5582885
Foot Cover Front, Foot Cover Rear
L, Foot Cover Rear R
1 1 Y Y Y N
101
102
103
104
105
106
107
108
109
110
111

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
