GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
5-2 Section 5-2 - General Information
Section 5-2
General Information
LOGIQ P9/P7 is a digital beamforming curved-, linear- and phased array ultrasound imaging system.
The system supports various operating mode such as
B-Mode, M-Mode, Color Flow (CFM)
Power Doppler Imaging (PDI), PW Doppler, CW Doppler
Volume Mode (3D)
Refer to Basic User Manual for full range of operating mode.
5-2-1 System Exterior

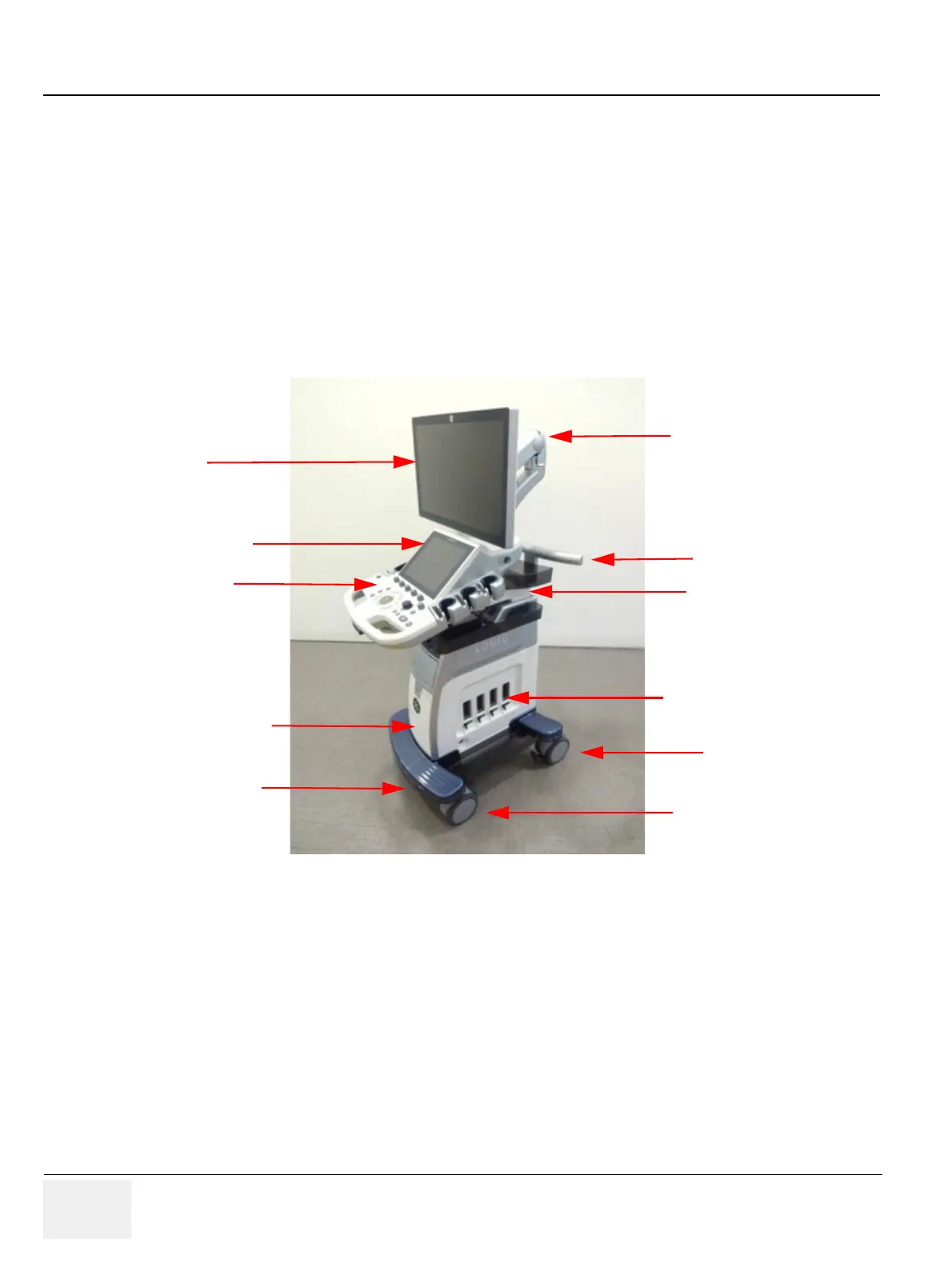

Figure 5-1 System Exterior
21.5" Monitor
Touch Screen
Operator Panel
Cooling Fan and
Dust Filter
(Inside Front Cover)
Foot Front Cover
Handle
OPIO Neck
Probe Connector
Swivel Lock Caster
Articulating Monitor
Arm with lock
Total Lock Caster
