GE LOGIQ P9 Service Manual

GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
8-158 Section 8-35 - Replacement of the BW printer
Section 8-35
Replacement of the BW printer
8-35-1 Manpower
1 person, 10 minutes
8-35-2 Tools
Standard Phillips Screwdriver.
8-35-3 Pre work
1) Remove Rear Cover. (refer to section 8-9)
2) Remove Top Cover (refer to section 8-7)
3) Remove Cable Cover Bracket. (refer to section 8-17)
4) Remove BW printer Power fix Bracket and Disconnect 2 BW printer cables from printer (refer to
section section 8-29-2)
8-35-4 Removal Procedure
1) Remove 4 screws around BW printer. Refer to following figure.

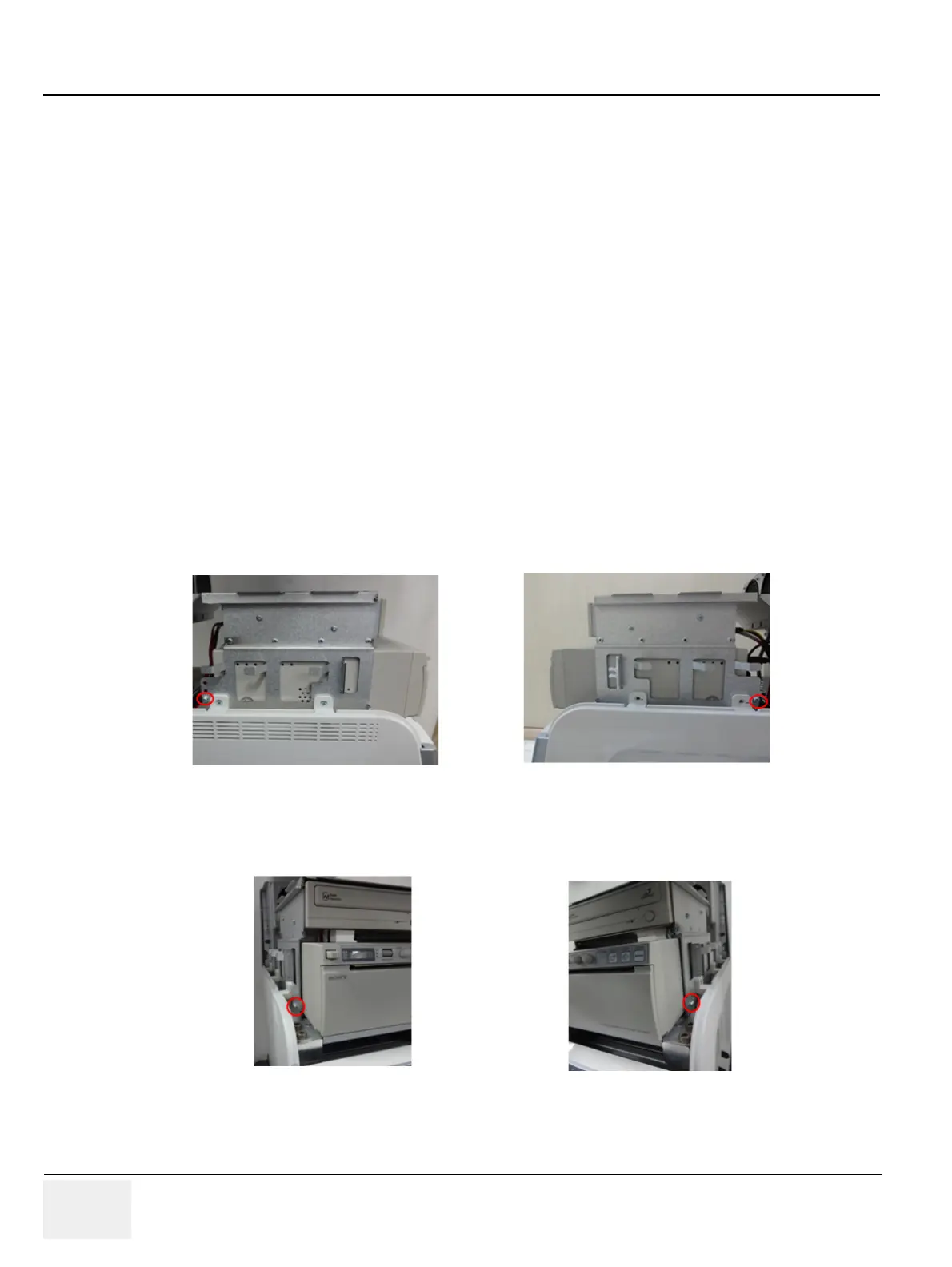

Figure 8-186 4 screws points for removal of BW printer
Rear left
Rear right
Front left
Front right

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
