GE LOGIQ P9 Service Manual

GERAFT LOGIQ P9/P7
D
IRECTION 5604324, REVISION 11 DRAFT (JANUARY 24, 2019) SERVICE MANUAL
5-6 Section 5-2 - General Information
5-2-4 System Ports

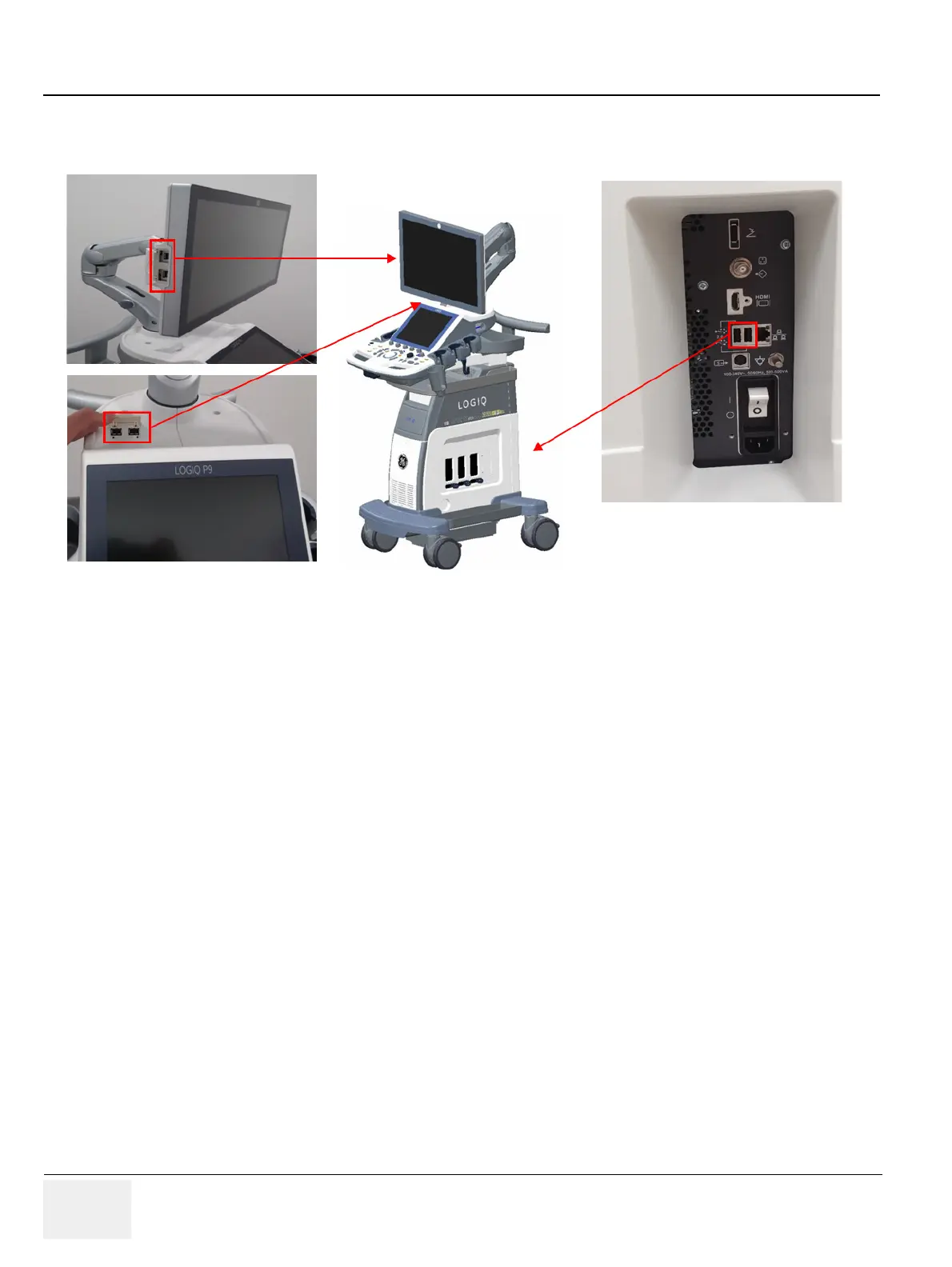

Figure 5-5 System Ports
System is equipped with 4 USB ports in front. These are customer use and Service port connected to
USB controller via USB Hub.
The Rear panel contains following ports.
• 3 USB ports for peripherals such as printers and footswitch
• HDMI for monitor output (without sound)
• S-Video & Composite for monitor output
• RJ45 for LAN connection
• AC Inlet for power
USB Ports Rear Panel

GE LOGIQ P9 Specifications

General

Type	Ultrasound System
3D/4D Imaging	Yes
Elastography	Yes
Connectivity	DICOM, USB, Ethernet, HDMI
Doppler Modes	Color Doppler, Power Doppler
Probes	convex, linear, phased array
Imaging Modes	M-Mode, Color Doppler, Power Doppler
Portability	Cart-based
Applications	Vascular, Cardiac, OB/GYN, Musculoskeletal
Weight	Approx. 80 kg
Touch Panel	10.1-in touchscreen
